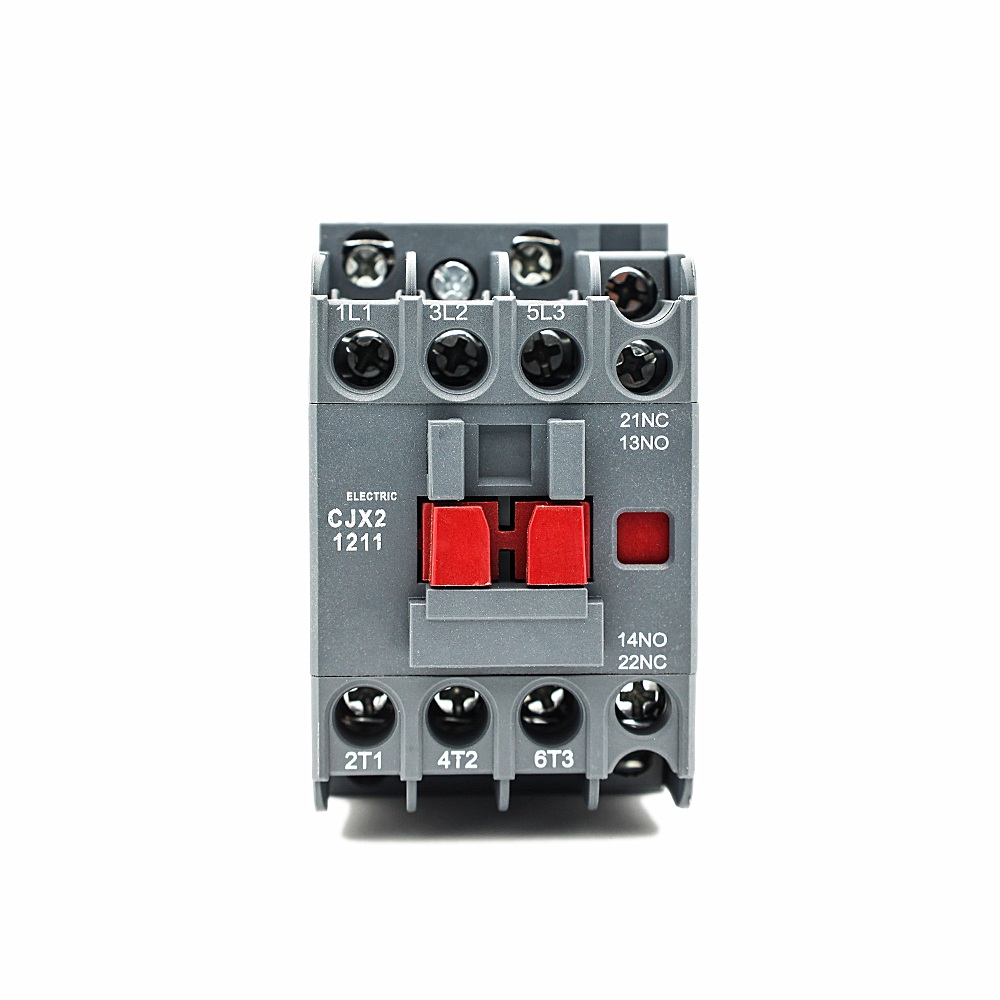

The CJX2 series AC contactors are high-performance, compact, and reliable electromechanical switching devices designed for AC circuits. They are primarily used to control the startup, shutdown, and operation of three-phase AC motors and other industrial loads, and are widely applied in industrial automation control systems, power distribution panels, and equipment upgrade projects.
Item No :
CJX2Order(MOQ) :
50Payment :
Paypal/TT/Western UnionProduct Origin :
Anhui, ChinaLead Time :
18-30 daysWeight :
1kgCharacteristic

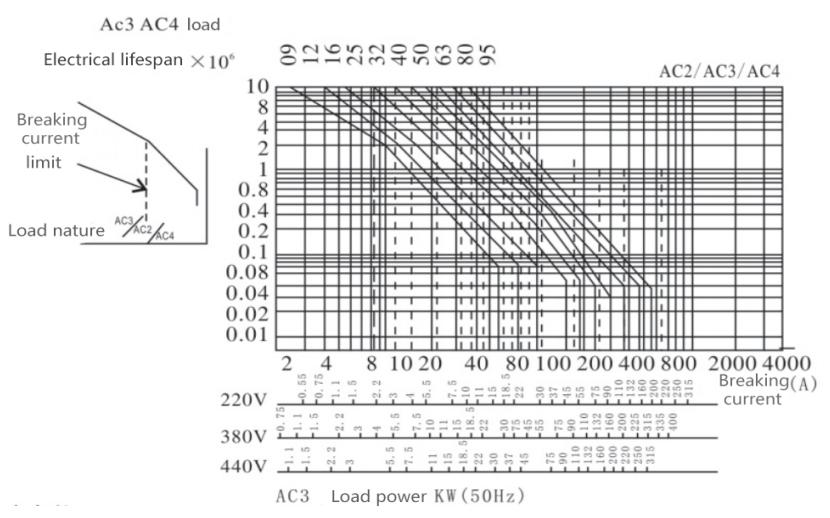

1. Electrical life curve
2. Main circuit technical parameters
|
Model |
Rated insulation Voltage (V) |
Agreed fever Current(A) |
Rated working current 400V AC3(A) |
Control power(kw) |
Number of contacts |
Notes |
||||
|
230V |
400V |
415V |
440V |
690V |
||||||
|
CJX2-0910 -0901 |
690 |
20 |
9 |
22 |
4 |
4 |
4 |
5. 5 |
3P+NO 3P+NC |
Installation method Installation of two screws Installation of 35mm guide rail |
|
CJX2-1210 -1201 |
20 |
12 |
3 |
5. 5 |
5. 5 |
5. 5 |
7. 5 |
3P+NO 3P+NC |
||
|
CJX2-1810 -1801 |
32 |
18 |
4 |
75 |
9 |
9 |
9 |
3P+NO 3P+NC |
||
|
CJX2-2510 -2501 |
40 |
25 |
5. 5 |
11 |
11 |
11 |
15 |
3P+NO 3P+NC |
||
|
CJX2-3210 -3201 |
50 |
32 |
7. 5 |
15 |
15 |
15 |
18. 5 |
3P+NO 3P+NC |
||
|
CJX2-4011 |
60 |
40 |
11 |
18. 5 |
22 |
22 |
30 |
|
Installation method 1. Installation of three screws 2. Installation of 75mm or 35mm guide rails |
|
|
CJX2-5011 |
80 |
50 |
15 |
22 |
25 |
30 |
33 |
|
||
|
CJX2-6511 |
80 |
65 |
18. 5 |
30 |
37 |
37 |
37 |
3P+NO |
||
|
CJX2-8011 |
125 |
80 |
22 |
37 |
45 |
45 |
45 |
3P+NC |
||
|
CJX2-9511 |
125 |
95 |
25 |
45 |
45 |
45 |
45 |
|
||
3. Coil parameters
|
Model |
CJX2-09 |
CJX2-12 |
CJX2-18 |
CJX2-25 |
CJX2-32 |
CJX2-40 |
CJX2-50 |
CJX2-65 |
CJX2-80 |
CJX2-95 |
|||
|
pull-in voltage 50/60Hz(A) |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
(0. 85~1. 1) Us |
|||
|
release voltage 50/60Hz(A) |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
(0. 2~0. 75) Us |
|||
|
coil power |
50Hz |
close |
(VA) |
70 |
70 |
110 |
110 |
110 |
200 |
200 |
200 |
200 |
200 |
|
hold |
(VA) |
8 |
8 |
11 |
11 |
11 |
20 |
20 |
20 |
20 |
20 |
||
|
60Hz |
close |
(VA) |
80 |
80 |
115 |
115 |
115 |
200 |
200 |
200 |
200 |
200 |
|
|
hold |
(VA) |
8 |
8 |
11 |
11 |
11 |
20 |
20 |
20 |
20 |
20 |
||
|
|
power dissipation |
(W) |
1. 8-2. 7 |
1. 8-2. 7 |
3-4 |
3-4 |
3-4 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
|

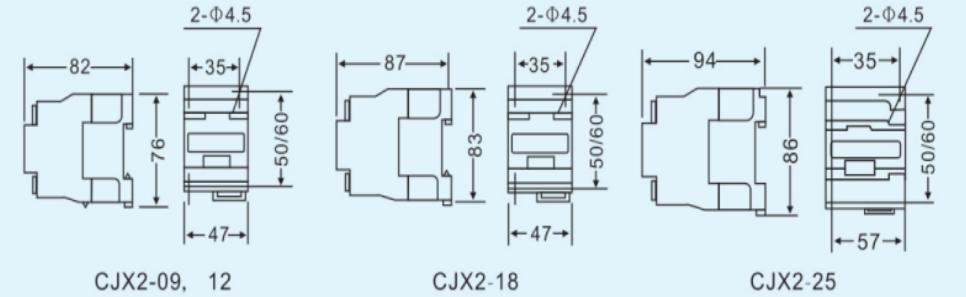

Typical appearance and installation dimensions
Note:In order to facilitate the maintenance and updating of existing equipment and appliances by users, our company has specially designed a transition installation plate to replace the CJ10 series AC contactor with the CJX2 series AC contactor. The alternative specifications and performance are shown in Table 5.
|
Alternative Model Specifications |
Rated Working Current (A) |
Electrical Lifespan AC3 (X10⁴ ) times |
Mechanical Life (X10⁵ ) times |
Volume (cm³) |
Weight (kg) |
|
CJ10-10 |
10 |
60 |
300 |
467 |
0. 48 |
|
CJX2-12 |
12 |
100 |
1000 |
247 |
0. 32 |
|
CJ10-20 |
20 |
60 |
300 |
1094 |
1 |
|
CJX2-25 |
25 |
80 |
800 |
437 |
0. 49 |
|
CJ10-40 |
40 |
60 |
300 |
1682 |
1. 8 |
|
CJX2-40 |
40 |
80 |
800 |
1058 |
1. 1 |
|
CJ10-60 |
60 |
60 |
300 |
4169 |
4. 45 |
|
CJX2-65 |
65 |
60 |
800 |
1058 |
1. 1 |
|
CJ10-100 |
100 |
60 |
300 |
5809 |
6. 27 |
|
CJX2-95 |
95 |
60 |
800 |
1446 |
1. 4 |
