Our SPD comes with built-in multi-protection against overcurrent and overheating. Its modular design enables simple installation and hot-swap replacement. With low leakage current, quick response and low residual voltage, it ensures stable operation. Color-coded indicators clearly show working status. Manufactured with innovative technology, it adopts high-energy N-PE gap discharge electrode.
Item No :
JSPDOrder(MOQ) :
50Payment :
Paypal/TT/Western UnionProduct Origin :
Shanghai, ChinaLead Time :
18-30 daysWeight :
1kgOur 3-series Class C SPD is applicable to 50/60Hz AC power systems up to 380V/385V, covering TN-S, TN-C-S, TT and IT configurations. It performs equipotential connection at the junctions of LPZ1, LPZ2 and LPZ3 zones.

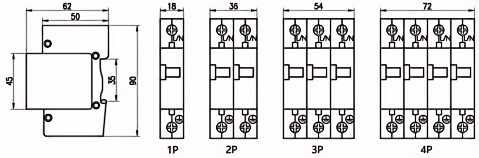

Manufactured to meet IEC61643-1 and GB18802.1 requirements, this device features a casing compatible with 35mm electrical DIN rails. It comes with an internal fault disconnection component. Once the SPD is damaged by overcurrent, excessive heat or breakdown, the component will isolate the unit from the mains automatically. The visible alarm light will turn from green (normal) to red (error). The module can also be replaced while the system remains energized.
Product Features
Main technical parameters
| Parameter | Model | LPFL-40 | LPFL-60 | ||
| 220V | 385V | 220V | 385V | ||
| Rated voltage Un(V-) | 220V | 385V | 220V | 385V | |
| Maximum continuous operating voltage Uc(V-) | 385V | 385V | |||
| Voltage protection level Up(V-)kV | ≤1.8 | ≤2.0 | |||
| Nominal discharge current (8/20μs)kA | 20 | 30 | |||
| Maximum discharge current (8/20μs)kA | 40 | 60 | |||
| Response time | <25 | ||||
| Test basis | GB18802.1、IEC61643.1 | ||||
| Connecting wire cross-sectional area L/N(mm²) | 10、16 | 16、20 | |||
| Connecting the cross-sectional area of the grounding wire PE(mm²) | 10、25 | 16、25 | |||
| Selection of fuses or circuit breakers | 32A | 63A | |||
| Work environment | -40℃~+85℃ | ||||
| Relative humidity | ≤95% | ||||
| Install | Standard guide rail | ||||
| Shell material | Glass fiber reinforced plastic |
Product application and installation location
Our 3-series Category C products deliver Class C lightning protection performance and realize equipotential connection under lightning conditions. These units are mounted at the interfaces of LPZ 0B, LPZ 1 and LPZ 2 protection zones.
Common application scenarios cover residential power boxes, computer rooms, telecom facilities, elevator control spaces, VFD control rooms, hospital operating theatres, monitoring centers, and distribution boxes for medical electronic equipment. It is recommended to install SPDs in distribution boxes for standalone villas.
Design & Order Tips
Kindly mark the product series, model number and quantity when placing orders or conducting design work.
Example: 3-series LPFL-40/4P-385V, 8 pcs.
