DZ10 Series Molded Case Low Voltage Protective Circuit Breaker

The DZ10 series circuit breakers comply with the GB14048.2 standard and are designed for AC power distribution circuits operating at 50Hz, 400V or below, and currents up to 600A. They provide overload, undervoltage, and short-circuit protection, along with conventional low-frequency switching functionality. Featuring a thermoplastic insulating housing and a four-bar linkage operating mechanism, these breakers come with multiple tripping devices and offer both front and rear wiring configurations.

Item No :
DZ10
Order(MOQ) :
50
Payment :
Paypal/TT/Western Union
Product Origin :
Shanghai, China
Lead Time :
18-30 days
Weight :
1kg

Inquiry Now

Suitable for distribution networks with AC frequency of 50Hz, voltage up to AC400V, and current up to 600A, used for distributing electrical energy, overload and under voltage, and short circuit protection of power lines and equipment, as well as for infrequent disconnection and connection of power lines under normal working conditions. This product complies with GB14048. 2 standard.

Product Features

The insulation base and cover are pressed with Thermoplastic.
The operating mechanism is a four link type.
The release is divided into multiple type (equipped with overload protection and short circuit protection), electromagnetic type (equipped with short circuit protection), and thermal release type (equipped with overload protection).
There are two types of wiring methods: front and back.

Model

Attachment Category

Without

attachments

Shunt

excitation separator

Auxiliary contact

Lack of voltage separator

Shunt

separator Auxiliary

Lack of Shunt

separator

Two sets of

auxiliary contacts

Lack of voltage

separator

Auxiliary contact

Code separation method

No release

Thermal release

Electromagnetic type Compound

Specifications

Model		DZ10-100			DZ10-250	DZ10-600
Rated operational voltage/Ue(v)		AC380
Inm(A)		100			250	600
Number of poles		2. 3
Rated current of separator/ln(A)		15 20	25. 30 40. 50	60. 80 100	100. 120. 140. 150. 170. 200. 250	200. 250. 300. 350. 400. 500. 600
Separator current Ir(×ln)	Duplex structure	10
	Electromagnetic type	10			5, 10	5, 10
Rated limit short circuit (KA)	AC380V	6	10	12	20	25
	COS φ	0. 7	0. 5	0. 3	0. 3	0. 25
Rated voltage of shunt separator (v)		AC:220. 380
Lack of rated voltage for voltage separator(v)		AC:220. 380
Electric operating mechanism(v)		AC:220 AC:380
Auxiliary contact		AC380V Up to two open and two closed			AC380V Up to four open and four closed	AC380V Up to six open and six closed
Lifetime (thousands of times)	Electrical	5			4	2
	Machinery	10			8	6
Operation frequency (times/h)		60			30	30

*Normally, the instantaneous action setting current value is 10In. If the user needs other setting values, please consult with our company

2. The reverse time limit breaking characteristic of the over current release when the circuit breaker is opened under overload conditions (reverse time action), and allpoles are energized simultaneously at the ambient air temperature of+40℃

Test current name	Initial state	I/n	Appointed time
			Inm=100(A)		Inm(A)
			Inm≤63	63<In≤100	250	600
Agree not to separate current	Cold	1. 05	1h	2h	2h
Agreed separation current	Hot	1. 3	1h	2h	2h
Returnable current	Cold	3	Returnable time
			5s	8s	8s	12s

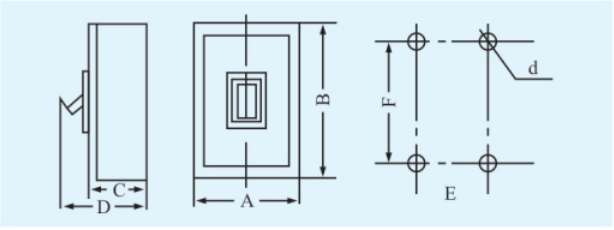

Overall and mounting dimensions

Shell current (A)	A	B	C	D	E	F	φd
100	108	153	86	105	35	135	5
250	156	278	105	143	51	240	9
600	212	398	109	150	70	360	11
