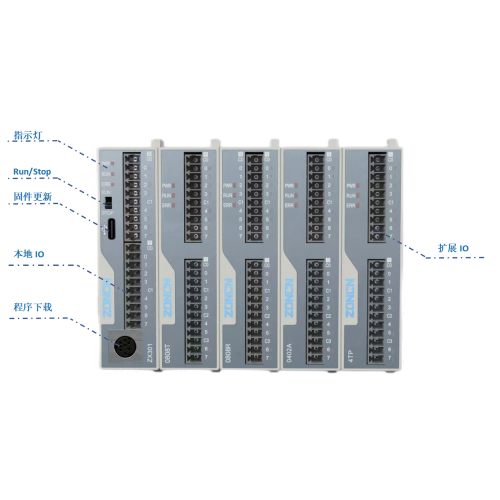

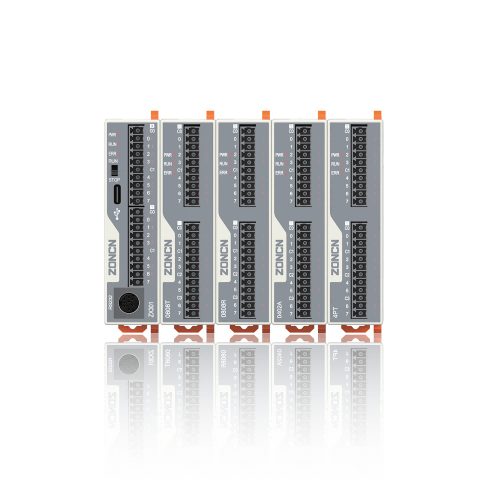

Expandable ZX300 series Compact PLC

The ZX300 series PLC is a compact PLC system introduced by ZhongChen Technology to meet market demands. It is designed to be compatible with Mitsubishi FX series and features our self-developed ZxWorks programming system, which supports ladder diagrams and pulse instruction programming. This system is primarily used for general logic control and can be integrated with our company's frequency converters and pulse servos to achieve effective logic control. As well as simple motion control. Supports Modbus RTU communication mode, can be connected to sensors, frequency converters and other slaves through modbus bus protocol, can realize with the HMI performs data interaction.

• Local high-speed IO can be used to achieve pulse output and complete simple motion control
• Self-developed programming environment ZxWorks, easy to use and convenient programming
• Supports Modbus RTU communication, which can connect different slave devices to realize data interaction with HMI
• Miniaturized, lightweight, compatible with Mitsubishi programming software, can realize seamless program transfer
• Local IO can be expanded in different ways, which are simple, flexible and occupy less space
• 64K program storage unit, to meet most logic control

Flexible and comprehensive performance

• The main unit supports up to four high-speed pulse outputs, three single-phase high-speed counter inputs, or two AB-phase high-speed counter inputs.

Rich instruction set

• 64KB of program memory and 4KB of power-off hold data meet the needs of most logic control applications.
• RS232 communication port: Supports Modbus RTU master-slave communication; supports downloading and monitoring user programs.
• RS485 communication port: Supports Modbus RTU master-slave communication.
• USB communication port: Supports Type C for downloading and monitoring programs.

Convenient programming platform

• ZxWorks, our proprietary programming environment, is easy to use and convenient for programming.
• Compatible with Mitsubishi programming software for seamless program transfer.

Flexible expansion modules

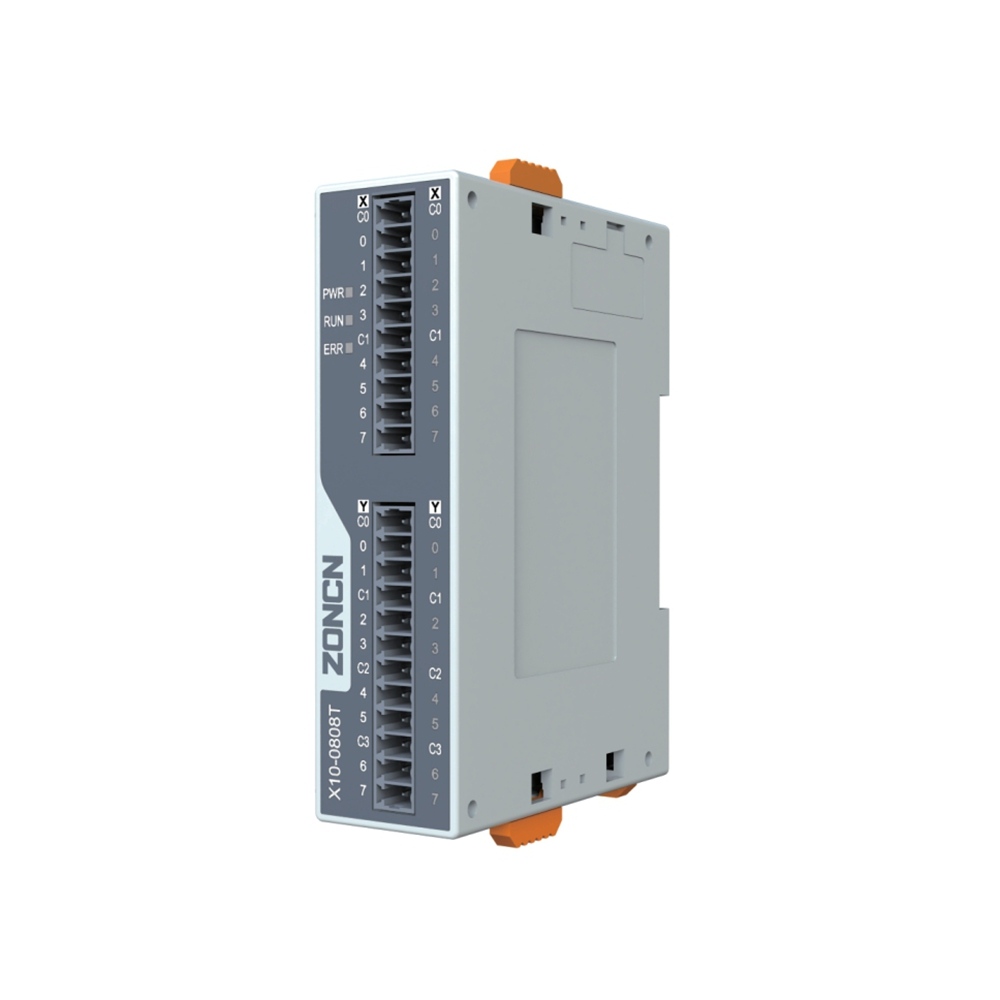

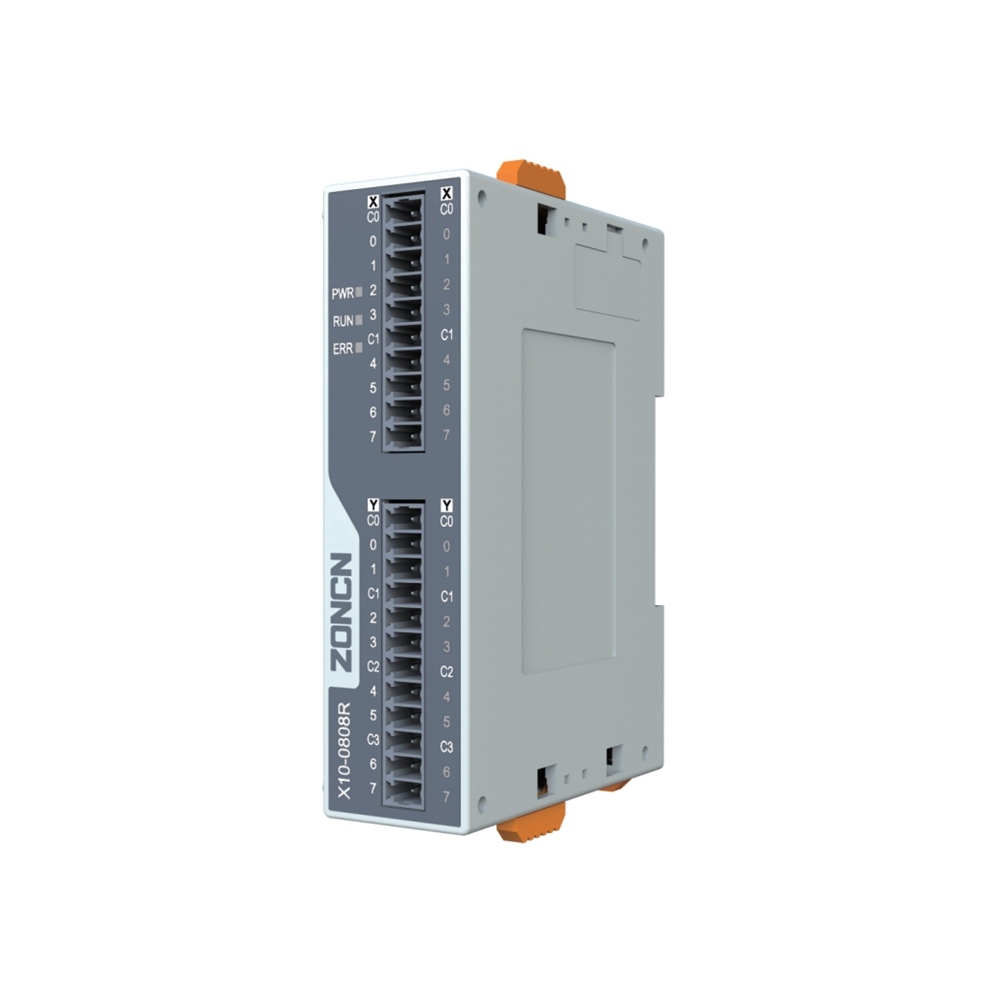

• Supports both X10 and E10 series expansion modules.
• Supports up to 12 X10 series expansion modules and one E10 series expansion module (the E10 series must be connected to the first module on the right).
