QY20 Series Splicable I/O Expansion Module Support EtherCAT Profinet EtherNet/IP CC-Link TSN

The QY20 series IO expansion modules adopt a splicing structure, realizing IO expansion for protocols such as EtherCAT, ProfiNET, EtherNetIP, and CC-Link TSN through a high-speed backplane bus. They include digital input/output, analog input/output, temperature acquisition, and high-speed input/output processing modules.

Item No :
QY20
Order(MOQ) :
20
Payment :
Paypal/TT/Western Union
Product Origin :
Shanghai, China
Color :
Black
Lead Time :
18-30 days
Weight :
5 kg

Inquiry Now

The QY20 series I/O expansion modules are constructed with a splicing structure. Leveraging a high-speed backplane bus, these modules support I/O expansion for multiple fieldbus protocols such as EtherCAT, ProfiNET, EtherNet/IP and CC-Link TSN.

The complete product portfolio consists of diverse functional modules: digital I/O modules, analog I/O modules, temperature acquisition modules, and modules designed for high-speed input & output signal processing. It offers flexible configuration to satisfy varied industrial automation control demands.

Product Features

Adopts flexible splicing structure, easy on-site assembly and flexible capacity expansion
Built-in high-speed backplane bus, ensures stable high-speed data transmission between modules
Supports multiple mainstream industrial fieldbus protocols: EtherCAT, ProfiNET, EtherNet/IP, CC-Link TSN
Rich module portfolio: digital I/O, analog I/O, temperature acquisition, high-speed I/O processing modules
Modularized configuration, freely combined according to different automation project requirements
Compact layout, saves cabinet installation space
Strong anti-interference performance, stable operation under harsh industrial working conditions
Convenient wiring design, simplifies field debugging and maintenance work

Technical Specifications

Component Description

Name	Function Definition
Backplane Buckle	Press to open, lift to lock
Indicator Lights	PR	Press to open, lift to lock	Red	Power light
	ER	Power/Run indicator (red)	Yellow	Constant on: System running, address allocation completed Fast flash: Alarm or stop Slow flash: System running, address allocation in progress
	IO Indicator	DI/DO indicator		Indicates each channel input; lights up when input is valid, off otherwise
Color Coding	DI：Blue DO：Red AD：Green DA：Orange Others：Purple
Backplane Connection	Backplane bus and power supply expansion
User Terminal	User wiring terminal

General Parameters

Interface Parameters
Number of I/O Stations	65535
Expanded IO	1 coupler can expand 32 IO modules
Transmission Medium	CAT5 or higher cable
Transmission Distance	Within 100m
Transmission Rate	100M/s
Bus Interface	RJ45
Technical Parameters
Configuration Mode	Automatic scanning
Power Supply	24 VDC

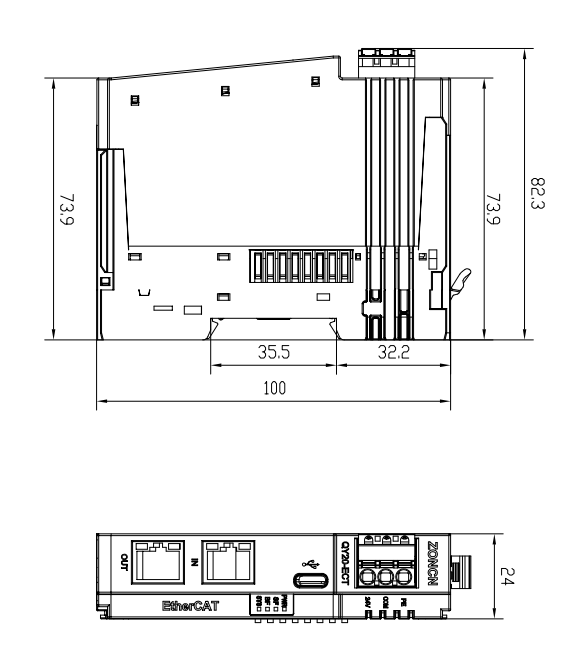

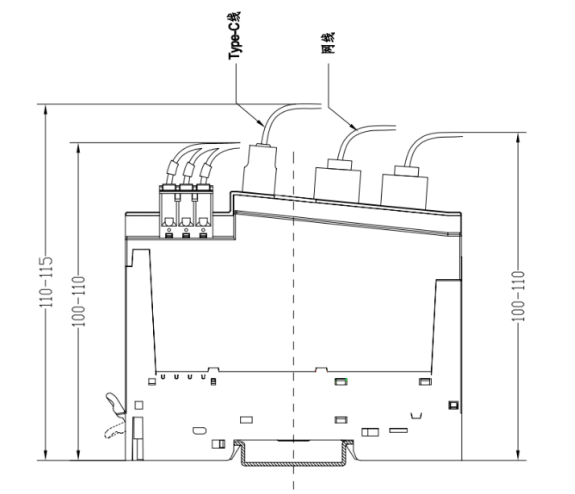

Dimensions	Height×Width×Depth: 100×24×83 mm
Weight
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Relative Humidity	95%，non-condensing
Protection Class	IP20

Digital Parameters

Input
Rated Voltage	24VDC（±25%）
Signal Points	16 points
Signal Type	NPN/PNP
0 Signal Voltage (PNP)	0V~3V
1 Signal Voltage (PNP)	20V~26V
0 Signal Voltage (PNP)	20V~26V
0 Signal Voltage (PNP)	0V~3V
Input Filtering	3ms
Input Current	4mA
Isolation Method	Optocoupler isolation

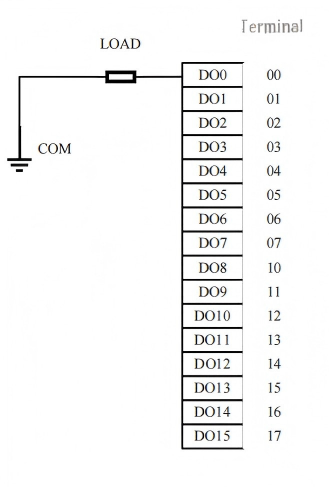

Output
Rated Voltage	24VDC（±25%）
Signal Points	16 points
Signal Type	NPN/PNP
Single Channel Rated Current	Resistive, inductive, lamp load
Single Channel Rated Current	500mA
Isolation Method	Optocoupler isolation

Analog Parameters

Input
Input Points	4、8
Signal Voltage	0~10V、-10V~10V
Signal Current	0~20mA、4~20mA
Resolution	12/16
Sampling Rate	≥1Kbps
Accuracy	±0.1%
Input Impedance (Voltage)	＞500KΩ
Input Impedance (Current)	1000Ω
Output
Output Points	4
Output Signal (Voltage/Current)	0~10V、-10V~10V，0~20mA、4~20mA
Resolution	16bit
Accuracy	±0.1%
Input Impedance (Voltage)	＞500KΩ
Input Impedance (Current)	1000Ω
