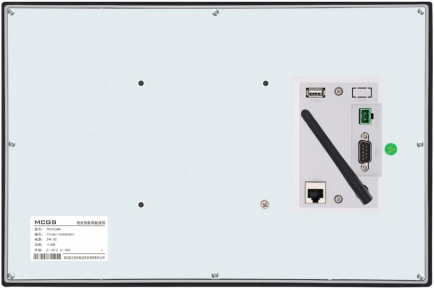

MCGS TPC1530Ni 15.6 Inch IIoT Industrial HMI Touch Screen

The MCGS TPC1530Ni is a 15.6‑inch N‑series IoT metal‑cased industrial HMI touch screen, built for modern industrial automation projects. Equipped with Cortex‑A53 quad‑core 1GHz processor, 1920×1080 full‑HD TFT LCD and four‑wire resistive touch, it delivers stable visual performance for on‑site machine operation.

Support Wi‑Fi IEEE802.11 b/g/n and 10/100M Ethernet, it enables remote monitoring, remote project download & remote maintenance via MCGS IoT Assistant platform. Rich isolated serial interfaces (RS232, RS485, RS422) support connection with PLC, inverter and other automation devices. Cast‑aluminum housing, IP65 front‑panel protection, CE & FCC certification make it suitable for harsh factory workshop environments. Powered by 24 VDC, configured with McgsPro configuration software for fast project development.

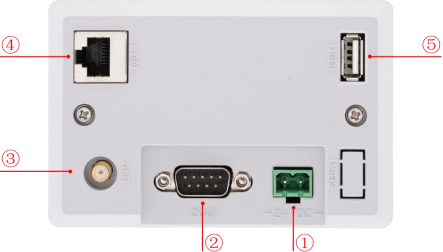

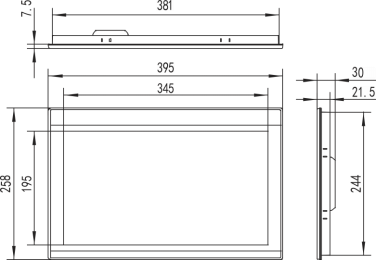

l Product Dimensions

External dimensions

l Installation method

Opening size

Hook installation

Installation angle

1.5.1  Replacement battery

Battery location: On the circuit board inside the TPC product.

Battery specifications: CR2032 3V lithium battery

Disassemble the battery: Remove the adhesive tape securing the battery; gently push the positive terminal to disengage the battery, and the battery will automatically pop out.

Install the battery: First, insert the battery into the positive terminal clip; then, gently press the other end against the plastic clip. Check whether both plastic clips and the metal positive terminal clip are securely in place.

During installation, please take care to avoid a short circuit between the positive and negative terminals of the battery.

                                                                             Remove battery                                                                     Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it. Repeat this action until the message "New calibration settings have been measured" appears. Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Applying a moisture-proof, dust-proof, and corrosion-resistant film to the TPC can effectively prevent erosion caused by dust, oil contamination, and other contaminants generated during production; therefore, if necessary, this protective film can be used to safeguard the TPC. This article uses the 1271Gn model as an example for explanation; the film application process for other TPC models is similar.

l Required tools: TPC compatible IP-rated protective film (available through screen suppliers), dust-proof cloth, anti-static eco-friendly cleaner, and roller.

l operating steps ：

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l matters need attention ：

1）Before applying the IP67/3A protection film, you must remove the factory-provided PET protective film.

2）The three-proof film is a consumable; if you notice the edges are lifting or bulging, you will need to reapply a new film.

3）When replacing the waterproof film, lift the waterproof film from the lower right corner of the front panel; be careful not to scratch the sealing adhesive film.

2 Project Download

Step 1: Use 24V DC power supply TPC After powering on and starting up, a "Starting up" progress bar will appear on the screen. At this point, click... TPC①, You will be taken to the startup configuration interface. If no action is taken, you will be taken to the project running interface automatically .

Step 2: Click the System Parameter Settings button ②. Enter TPC System settings interface.

Step 3: Select the Network Settings tab ③, and configure... TPC IP Address 4, TPC default I P Address is 200.200.200.190 .

Step 4: Connect the computer and... TPC, and the computer IP With the connected TPC LAN port IP Set them to the same network segment.

Step 5: Use MCGS Pro Open TPC Project, click to download project ⑤, Open the download configuration properties page and select "Online" as the run mode . Select the connection method "TCP/IP" "Network"⑦ Enter the target machine name TPC of IP Address ⑧ , Click "Download Project" (⑨). After the download is successful, click "Start & Run" (⑩) or... TPC The "Enter Runtime Environment" button on the interface runs the screen-side project.
