MCGS TPC7012Et 7 Inch RISC V Industrial HMI Touch Screen 10 100M Ethernet McgsPro Software IP65

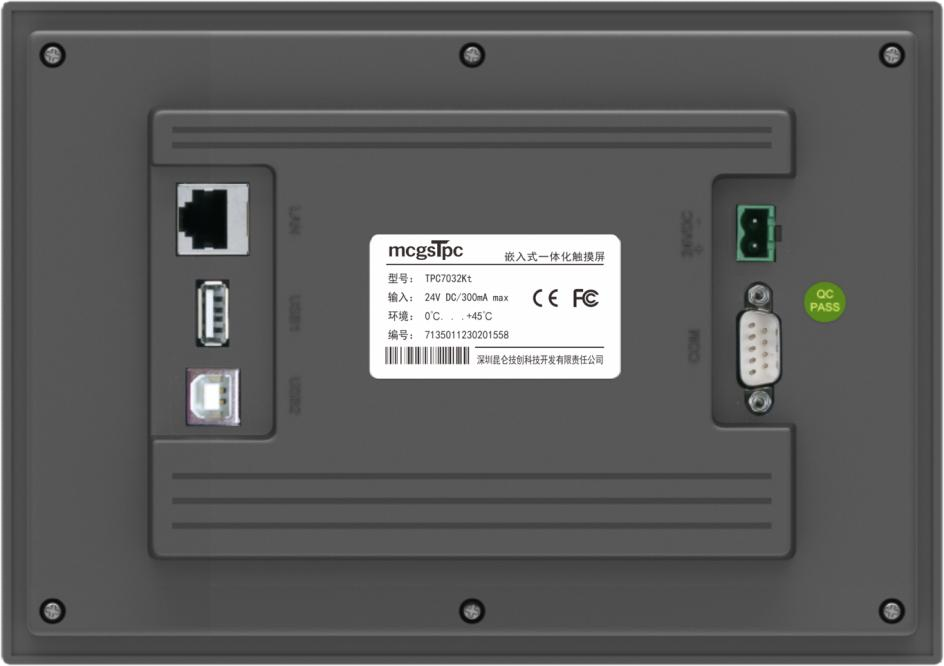

TPC7012Et is cost‑effective mid‑low range embedded HMI from MCGS Kunlun Jichuang. Adopting RISC‑V C907 multi‑core 800MHz hardware platform, this 7‑inch touch HMI adds 10/100M adaptive Ethernet port compared with basic models. It supports network project download and multi‑device network communication. Multiple serial communication modes are available for connecting PLC, inverter and other field devices. IP65 front‑panel rating delivers reliable dust‑proof and splash‑proof performance for cabinet installation scenarios.

l Product Dimensions

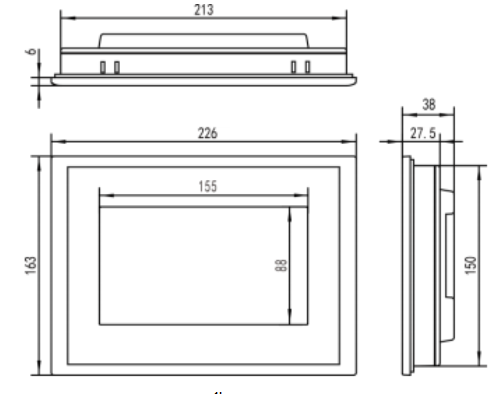

External dimensions

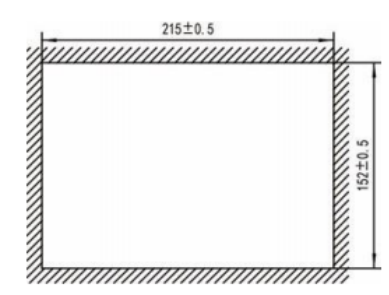

Opening size

l Installation method

Note before installation: The front end of the screws must be basically flush with the hanger edge.

Hook installation

Installation angle

Battery Location: On the circuit board inside the TPC product

Battery Specification: CR2032 3V Lithium Battery

Battery Removal: Remove the securing adhesive above the battery, gently pull the positive terminal clip, and the battery will pop out automatically.

Battery Installation: First place the battery into the positive terminal clip, then gently press the other end down until it fits under the plastic clip. Verify that the battery is properly seated in both plastic clips and the metal positive terminal clip.

1.5.1  Replacement battery

                                                                           Remove battery                                                             Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it.

Repeat this action until the message "New calibration settings have been measured" appears.

Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Applying a triple protection film to the TPC can effectively prevent contamination and corrosion caused by dust, oil stains, and other substances generated during production. Therefore, if necessary, the TPC can be protected with a triple protection film. This section takes the 1271Gn model as an example; the film application steps for other TPC models are similar.

l Preparation Tools: Matched triple protection film for TPC (available through the TPC's purchase channel), dust-free cloth, anti-static environmentally friendly cleaner, and roller.

l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l Precautions:

1）Before applying the Triple Protection Film, the factory-installed PET protective film must be peeled off.

2）The Triple Protection Film is a consumable. If edge lifting or bubbling is detected, it should be replaced with a new one.

3）When replacing the Triple Protection Film, peel it up from the bottom right corner of the front panel. Be

careful not to scratch the sealed film.

2 Project Download

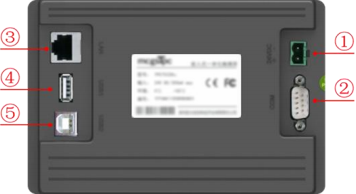

Step 1: Power on the TPC with a 24V DC power supply. After startup, a progress bar with the message "Press and hold the touch screen to enter the system configuration interface" will appear on the screen. At this point, tap the TPC ① to enter the startup configuration interface; if no action is taken, the device will automatically enter the project runtime interface.

Step 2: Click the System Parameter Settings button ②. Enter TPC System settings interface.

Step 3: Select the Network Settings tab ③, and configure... TPC IP Address 4, TPC default I P Address is 200.200.200.190 .

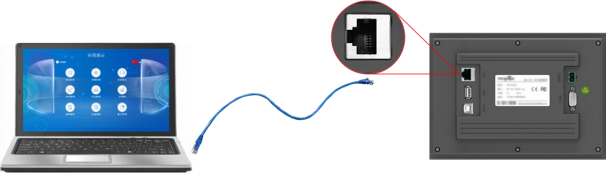

Step 4:  Connect the computer to the TPC using a network cable, and set the computer's IP address to be on the same subnet as the IP address of the TPC’s LAN port.
