The MCGS TPC7032Nt is a 7‑inch N‑series industrial IoT HMI powered by Cortex‑A53 quad‑core 1GHz processor. Equipped with Ethernet, optional WiFi /4G wireless connectivity, it supports remote monitoring & remote operation‑maintenance via mcgsIoT cloud platform. Featuring multi‑serial ports RS232/RS485/RS422, USB Host and IP65 front protection, this resistive touch HMI works perfectly with PLC, inverter and automation equipment for cabinet assembly, machinery, HVAC and pharmaceutical industrial projects.
Item No :
TPC7032NtOrder(MOQ) :
50Payment :
Paypal\TT\Western UnionProduct Origin :
Guangdong, ChinaWeight :
1KGThe MCGS TPC7032Nt is a 7 inch industrial IoT human‑machine interface equipped with Cortex‑A53 quad‑core 1GHz processor featuring 800×480 resolution TFT LCD four‑wire resistive touch screen and 250cd/㎡ brightness it comes with abundant communication ports including 10 100Mbps adaptive Ethernet isolated RS232 RS485 RS422 serial interfaces and USB Host port supporting program download data import and export this HMI supports WiFi or 4G wireless connection for mcgsIoT cloud remote operation maintenance and remote device monitoring with IP65 front‑panel protection CE FCC certification industrial grade 3 EMC performance it adopts 24VDC power supply and panel mounting design with cabinet cut‑out dimension 215×152mm it is compatible with McgsPro configuration software and widely matched with various PLC and frequency inverters ideal for custom control cabinet machinery equipment HVAC energy and pharmaceutical automation projects.
Product Specifications
|
Classification |
Item |
TPC7032Nt |
|
Product featu- res |
LCD |
7" TFT |
|
Backlight type |
LED |
|
|
Display color |
262K |
|
|
Resolution ratio |
800×480 |
|
|
Display bright- ness |
250cd/㎡ |
|
|
Touch screen |
Fourth-order resist- ive |
|
|
Input voltage |
24±20%VDC |
|
|
Power isolation |
Built-in |
|
|
Power rating |
8W |
|
|
Processor |
Cortex-A53 quad-core, 1 GHz |
|
|
Internal storage |
256MB |
|
|
System Storage |
512MB |
|
|
Save space |
512MB |
|
|
Configuration so- ftware |
McgsPro 3.3.6.6354 SP1.3 and later versions |
|
|
Peripheral interf- ace |
Serial interface |
Method 1: COM1 (232) COM2 (485) COM3 (485) Method 2: COM1 (232) COM9 (422) |
|
Serial port isolat- ion |
Built-in |
|
|
USB port |
1 ×Host |
|
|
Ethernet port |
1 × 10/100 Mbps Adaptive |
|
|
* Wireless Expansion |
Wi-Fi interface |
Wi-Fi IEEE802.11 b/g/n |
|
4G interface |
China Mobile / China Uni- com / China Telecom |
|
|
Ambient condi- tion |
Working temper- ature |
0℃~45℃ |
|
Working humidity |
5%–90% (no condensation) |
|
|
Storage tempera- ture |
-10℃~60℃ |
|
|
Storage humidity |
5%–90% (no condensation) |
|
|
Size of product |
Case material |
Engineering plas- tic |
|
Shell color |
Dull grey |
|
|
External Dime- nsions |
226mm×163mm |
|
|
Cabinet perforat- ion |
215mm×152mm |
|
|
Attestation |
Product certifica- tion |
Complies with CE/FCC certification stan- dards |
|
Levels of protect- ion |
IP65 (front panel) |
|
|
Electromagnetic co- mpatibility |
Industrial Grade 3 |
Interface Description

|

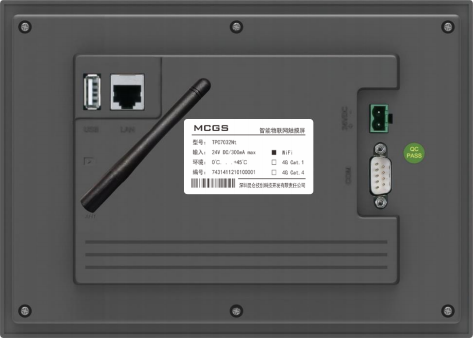

① |
Electricity source |
|
|
- |
1 |
0V |
|
+ |
2 |
DC24V |
||||
|
② |
Serial port |
|
COM1 |
2 |
RS232 RXD |
|
|
3 |
RS232 TXD |
|||||
|
5 |
GND |
|||||
|
COM2 |
7 |
RS485+ |
||||
|
8 |
RS485- |
|||||
|
COM3 |
4 |
RS485+ |
||||
|
9 |
RS485- |
|||||
|
COM9 |
7 |
RXD+ |
||||
|
8 |
RXD- |
|||||
|
4 |
TXD+ |
|||||
|
9 |
TXD- |
|||||
|
Note:COM9 and COM2, COM3 They cannot be used simultaneously. |
||||||
|
③ |
Antenna ape- rture |
Turn clockwise | ![]() |
Unscrew counterclock wise | ||
|
|
![]() |
|||||
|
④ |
SIM card slot (4G-only display) |
Insert the SIM card with the HMI facing upward. |
![]() |
Press to pop up | ![]() |
|
|
⑤ |
Internet access |
10M/100M adaptive Ethernet port, capable of uploading or downloading projects and upgrading the operating environment (the screen's operating environment requires Pro 3.3.2). (and above ), and can also communicate with other devices. |
||||
|
⑥ |
USB Host port |
USB 2.0, supports via U The disk updates the touchscreen operating environment, projects, system, and provides functions such as data import and export. |
||||
Product Installation
l Product Dimensions

External dimensions

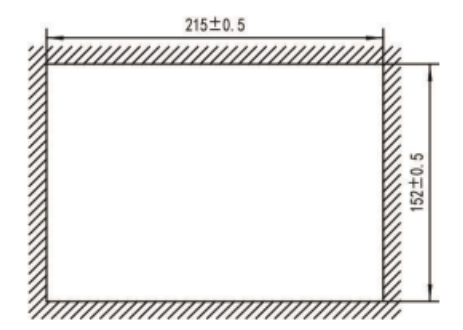

Opening size
l Installation method

Hook installation

Installation angle
Product Maintenance
1.5.1 Replacement battery
Battery location: TPC On the circuit board inside the product
Battery specifications: CR1220 3V lithium batteries
To remove the battery: Remove the adhesive on top of the battery, gently move the positive terminal to the battery position, and the battery will pop out automatically.
Install the battery: First, place the battery into the positive terminal clip, and then gently press the other end under the plastic clip. Check that both plastic clips and the metal positive terminal clip are properly inserted.
During installation, please avoid short-circuiting the positive and negative terminals of the battery. 4G The expansion board needs to be removed first for the IoT screen . Make sure the pinholes on the expansion board are aligned.

Remove battery Install battery
1.5.2 Touch calibration
Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.
TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it. Repeat this action until the message "New calibration settings have been measured" appears. Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.
1.5.3 Three-proof film
Give TPC Applying a protective film can effectively prevent dust , oil, and other contaminants generated during production from affecting the skin. TPC is susceptible to corrosion, therefore, if necessary, a protective membrane can be used to protect TPC. To protect it. This article takes... 1271Gn We will use this as an example for explanation; other models will be discussed later. TPC The steps for applying the screen protector are similar .
l Tools needed: TPC Includes a three-proof film (available for purchase from screen suppliers), dustproof cloth, anti-static environmentally friendly cleaning agent, and roller.
l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.
2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left
4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.
l Precautions:
1) The factory-installed protective film must be removed before applying the three-proof film. PET Protective film
2) The three-proof film is a consumable. If the edges are found to be peeling or bulging , a new film needs to be applied.
3) When replacing the protective film, pry it up from the lower right corner of the front panel, being careful not to scratch the sealing film.
2 Project Download
Step 1: Use 24V DC power supply TPC After powering on and starting up, a "Starting up" progress bar will appear on the screen. At this point, click... TPC①, You will be taken to the startup configuration interface. If no action is taken, you will be taken to the project running interface automatically .

Step 2: Click the System Parameter Settings button ②. Enter TPC System settings interface.

Step 3: Select the Network Settings tab ③, and configure... TPC IP Address 4, TPC default I P Address is 200.200.200.190 .

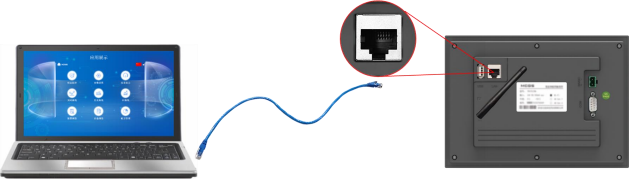

Step 4: Connect the computer and... TPC, and the computer IP With the connected TPC LAN port IP Set them to the same network segment.

Step 5: Use MCGS Pro Open TPC Project, click to download project ⑤, Open the download configuration properties page and select "Online" as the run mode . Select the connection method "TCP/IP" "Network"⑦ Enter the target machine name TPC of IP Address ⑧ , Click "Download Project" (⑨). After the download is successful, click "Start & Run" (⑩) or... TPC The "Enter Runtime Environment" button on the interface runs the screen-side project.
