MCGS TPC7032Kw 7 Inch TFT Industrial Touch Screen HMI Operator Panel for Automation System

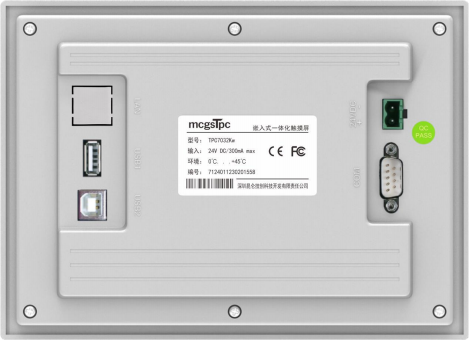

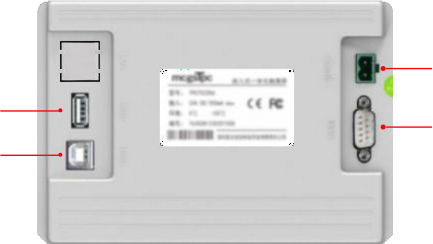

TPC7032Kw is a 7‑inch embedded integrated industrial HMI touch screen from MCGS Kunlun Tongtai. It adopts Cortex‑A7 multi‑core 800MHz processor with 800×480 TFT display and 4‑wire resistive touch panel, IP65 front‑panel protection. Equipped with multi‑channel RS232/RS485/RS422 serial ports and USB Host / Slave interfaces, it works with MCGSPro configuration software and supports Modbus RTU communication to connect with inverters, PLCs, air‑compressor controllers and other industrial devices. Powered by DC24V, operating temperature ranges from 0℃ to 45℃, it is widely applied in air compressors, automated machinery and production‑line control systems.

l Product Dimensions

External dimensions

Opening size

l Installation method

Hook installation

Installation angle

1.5.1  Replacement battery

Battery location: TPC on the

circuit board inside the product

Battery specifications: CR2032 3V

lithium battery

Please take care to avoid short-circuiting the positive and negative terminals of the battery during installation

                                                                 Remove battery                                                                          Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it. Repeat this action until the message "New calibration settings have been measured" appears. Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Give TPC Applying a protective film can effectively prevent dust , oil, and other contaminants generated during production from affecting the skin. TPC is susceptible to corrosion, therefore, if necessary, a protective membrane can be used to protect TPC. To protect it. This article takes... 1271Gn We will use this as an example for explanation; other models will be discussed later. TPC The steps for applying the screen protector are similar .

l Tools needed: TPC Includes a three-proof film (available for purchase from screen suppliers), dustproof cloth, anti-static environmentally friendly cleaning agent, and roller.

l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l Precautions:

1) The factory-installed protective film must be removed before applying the three-proof film. PET Protective film

2) The three-proof film is a consumable. If the edges are found to be peeling or bulging , a new film needs to be applied.

3) When replacing the protective film, pry it up from the lower right corner of the front panel, being careful not to scratch the sealing film.

2 Project Download

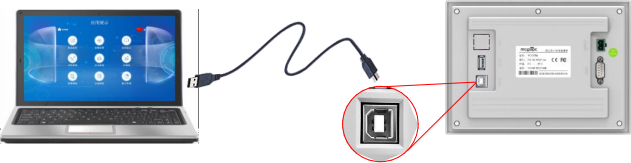

Step 1: Connect the computer and the screen’s slave port via USB cable

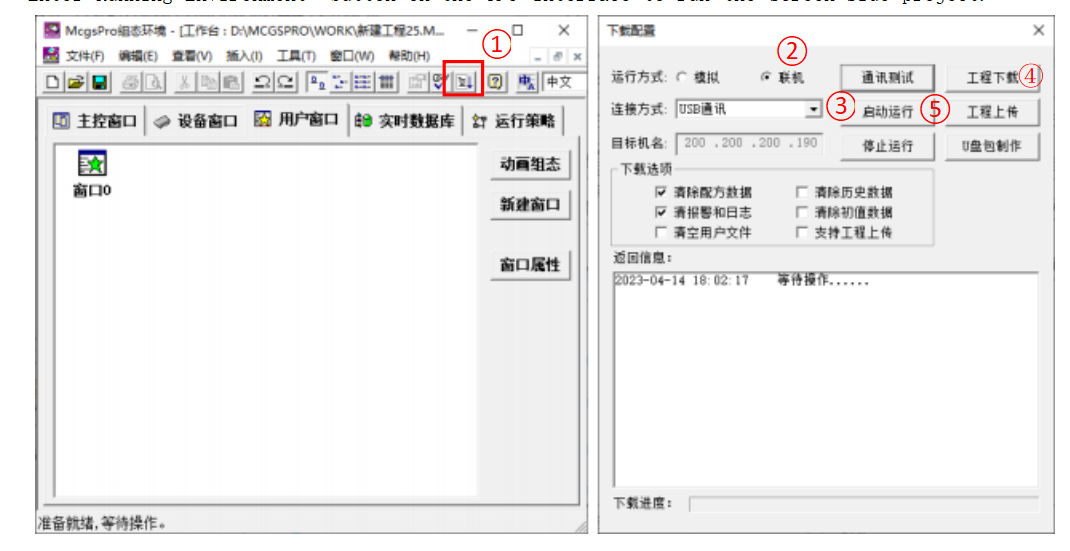

Step 2: Use McgsPro to open the TPC project, click Download Project ①, open the download configuration property page, and select the running mode "Online"

② select the connection method "USB communication" ③, click Project Download ④. After waiting for the prompt that the project download is successful, click Start Run ⑤ or the "Enter Running Environment" button on the TPC interface to run the screen-side project.
