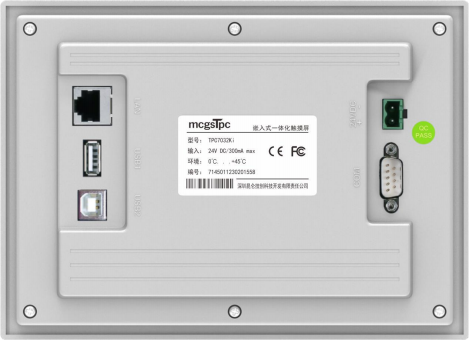

TPC7032Ki MCGS Embedded Integrated Touch Screen 7" TFT LCD HMI Panel DC24V For PLC Control

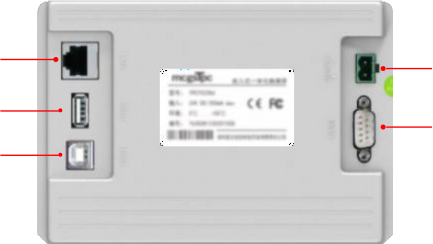

The MCGS TPC7032Ki is a mid‑to‑high‑end 7‑inch embedded integrated industrial HMI touch screen developed by Kunlun Technology. Powered by Cortex‑A7 800MHz multi‑core processor with 128MB memory and storage, it features 800×480 resolution 262K‑color TFT LCD and 4‑wire resistive touch. Equipped with 10/100M adaptive Ethernet port, multiple serial communication ports (RS232, RS485, RS422) and dual USB interfaces, it supports MCGSPro configuration software for convenient project download, data monitoring, curve recording, alarm logging and recipe management. The front panel reaches IP65 protection grade, works stably within 0‑45℃ operating temperature, widely applied in industrial automation equipment for human‑machine interaction.

l Product Dimensions

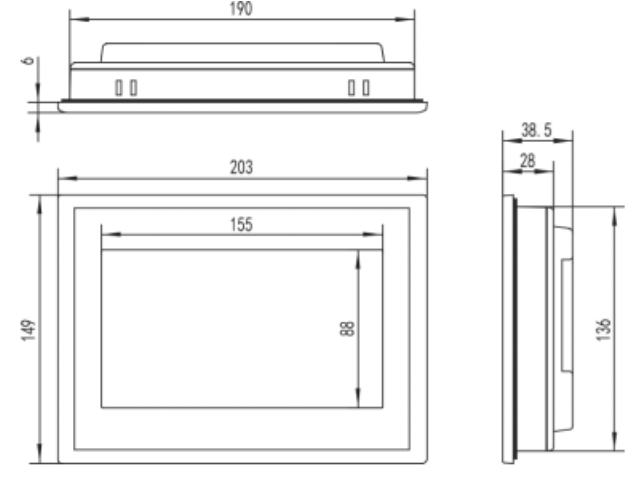

External dimensions

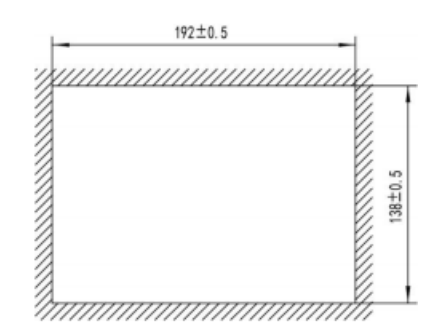

Opening size

l Installation method

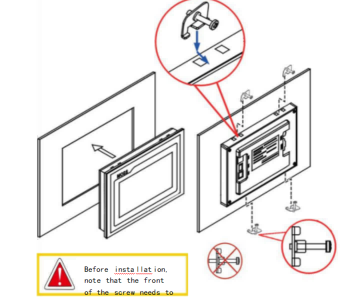

Hook installation

Installation angle

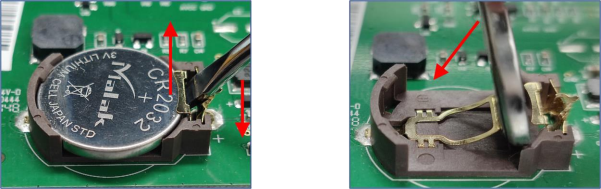

1.5.1  Replacement battery

Battery location: TPC on the

circuit board inside the product

Battery specifications: CR2032 3V

lithium battery

Please take care to avoid short-circuiting the positive and negative terminals of the battery during installation

                                                                 Remove battery                                                                          Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it. Repeat this action until the message "New calibration settings have been measured" appears. Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Give TPC Applying a protective film can effectively prevent dust , oil, and other contaminants generated during production from affecting the skin. TPC is susceptible to corrosion, therefore, if necessary, a protective membrane can be used to protect TPC. To protect it. This article takes... 1271Gn We will use this as an example for explanation; other models will be discussed later. TPC The steps for applying the screen protector are similar .

l Tools needed: TPC Includes a three-proof film (available for purchase from screen suppliers), dustproof cloth, anti-static environmentally friendly cleaning agent, and roller.

l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l Precautions:

1) The factory-installed protective film must be removed before applying the three-proof film. PET Protective film

2) The three-proof film is a consumable. If the edges are found to be peeling or bulging , a new film needs to be applied.

3) When replacing the protective film, pry it up from the lower right corner of the front panel, being careful not to scratch the sealing film.

2 Project Download

Step 1: Use 24V DC power supply TPC After powering on and starting up, a "Starting up" progress bar will appear on the screen. At this point, click... TPC①, You will be taken to the startup configuration interface. If no action is taken, you will be taken to the project running interface automatically .

Step 2: Click the System Parameter Settings button ②. Enter TPC System settings interface.

Step 3: Select the Network Settings tab ③, and configure... TPC IP Address 4, TPC default I P Address is 200.200.200.190 .

Step 4: Connect the computer and... TPC, and the computer IP With the connected TPC LAN port IP Set them to the same network segment.

Step 5: Use MCGS Pro Open TPC Project, click to download project ⑤, Open the download configuration properties page and select "Online" as the run mode . Select the connection method "TCP/IP" "Network"⑦ Enter the target machine name TPC of IP Address ⑧ , Click "Download Project" (⑨). After the download is successful, click "Start & Run" (⑩) or... TPC The "Enter Runtime Environment" button on the interface runs the screen-side project.
