7 inch industrial touch screen

MCGS TPC7032Tt is a compact 7‑inch embedded industrial HMI touch panel with 800×480 TFT display, built‑in isolated RS232/RS485 serial port and 10/100Mbps Ethernet, Cortex‑A7 800MHz processor, compatible with McgsPro configuration software, IP65 front panel for small‑size industrial automation control cabinets.

MCGS TPC7032Tx is a cost‑effective 7‑inch embedded industrial HMI touch panel with 800×480 TFT display, built‑in isolated RS232/RS485 serial communication, dual USB interface, Cortex‑A7 800MHz processor, compatible with McgsPro configuration software, IP65 front panel for compact industrial automation projects.

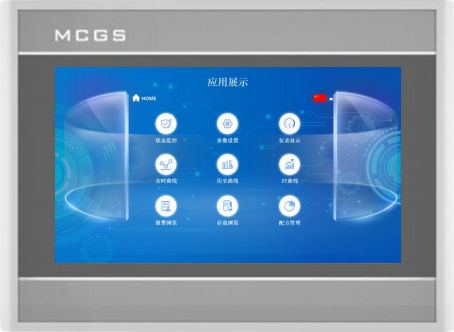

MCGS TPC7032Ti is a mid‑to‑high‑end embedded all‑in‑one industrial HMI touch screen, equipped with Cortex‑A7 800MHz multi‑core processor, 7‑inch 800×480 TFT LCD, 4‑wire resistive touch, IP65 front panel protection, supports RS232, RS485, Ethernet and dual USB interfaces, runs with McgsPro configuration software for industrial automation control.

TPC7032Ti is a mid‑to‑high‑end embedded integrated HMI touch screen developed by Kunlun Tech for industrial automation scenarios. Equipped with 7‑inch TFT LCD display (800×480 resolution, 262K colors), fourth‑order resistive touch panel, Cortex‑A7 multi‑core 800MHz processor and 128MB storage. It supports McgsPro configuration software, built‑in isolated COM1(RS232)/COM2(RS485) serial ports, 10/100Mbps adaptive Ethernet, dual‑USB interfaces. The front panel reaches IP65 protection grade, works stably within 0℃‑45℃ working temperature. Widely used for equipment status monitoring, parameter setting, real‑time & historical curve display, alarm browsing, formula management and other industrial HMI applications. Powered by 24±20% VDC, it complies with CE/FCC industrial certification, perfect for machinery, production line and various industrial control systems.

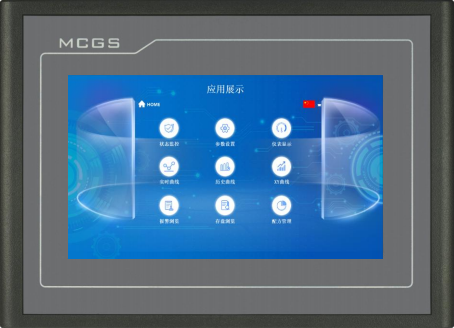

MCGS TPC7011El is a cost‑effective E‑Series embedded human‑machine interface from Kunlun MCGS. Powered by RISC‑V C907 multi‑core 800 MHz processor, 7‑inch TFT LCD with 1024×600 resolution and four‑wire resistive touch. Equipped with multi‑group RS232/RS485/RS422 serial interfaces and switchable USB Host/Slave port. Front panel reaches IP65 dust‑water protection grade, DC24V power supply, hook‑type embedded installation for control cabinet. Ideal to connect with PLC, inverter and PID controller for machinery, water treatment and pump‑fan automation.

MCGS TPC7011Et embedded HMI touch panel is designed for general‑purpose industrial automation. Compared with TPC7011Ex model, it adds one 10/100Mbps adaptive Ethernet interface for network downloading, data transmission and network communication with PLC and other field devices. Powered by RISC‑V multi‑core CPU, with multi‑serial ports and dual‑USB, supporting project download via network, USB cable or USB flash drive. IP65 front panel for dust‑proof and water‑proof in workshop environment.

MCGS TPC7011Ex is an embedded all‑in‑one touch HMI panel for general‑purpose industrial automation. Adopting high‑performance RISC‑V multi‑core CPU, 7‑inch high‑brightness TFT screen, resistive touch input. Multiple serial communication ports allow easy connection with PLC, inverter, servo and other field devices. Pre‑installed McgsPro configuration software for fast project development and downloading via USB cable or USB flash disk.

The MCGS TPC7032Tw is a mid‑to‑high‑end 7‑inch integrated industrial touch HMI from Kunlun MCGS. Powered by Cortex‑A7 multi‑core 800 MHz processor, this human‑machine interface adopts four‑wire resistive touch technology, built‑in RS232, RS485 communication ports and dual‑function USB port. Front panel reaches IP65 protection grade, suitable for cabinet embedded installation for factory automation, PLC connection, data monitoring, parameter setting, curve recording and alarm management.

TPC7022Ew is cost‑effective mid‑low range embedded HMI touch screen from MCGS Kunlun Jichuang, designed for general industrial automation applications. It adopts four‑wire resistive touch panel, stable industrial hardware platform, pre‑installed McgsPro configuration software, flexible serial communication ports for connecting PLC, inverter and other field devices. Front‑panel IP65 rating provides reliable dust‑proof and splash‑proof performance for cabinet mounting scenarios.

Built for industrial automation, the MCGS TPC7032Ni is a 7‑inch resistive‑touch IoT HMI running McgsPro configuration software. It features multiple RS232/RS485/RS422 serial ports plus optional Wi‑Fi/4G for cloud‑based remote device operation. With wide‑range operating temperature and IP65 front‑panel protection, it delivers stable control performance for on‑site cabinet applications.

MCGS TPC7012El belongs to MCGS E‑series mid‑low‑cost embedded HMI touch panel, developed for wide‑range industrial control scenarios. This 7‑inch resistive touch HMI adopts high‑performance RISC‑V multi‑core processor, works with McgsPro full‑Chinese configuration software, offering stable data monitoring, parameter setting and machine operation visualization for automation equipment. The front panel achieves IP65 dust‑water resistance, suitable for cabinet panel‑mount installation in factory environments.
