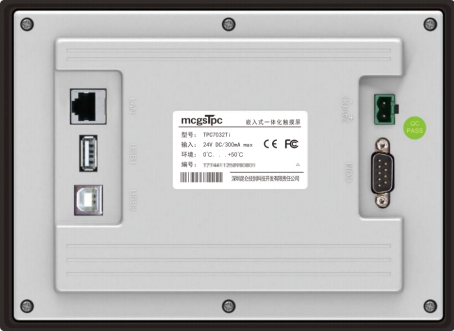

MCGS TPC7032Ti 7 Inch Embedded Integrated HMI Touch Screen 800×480 Resolution

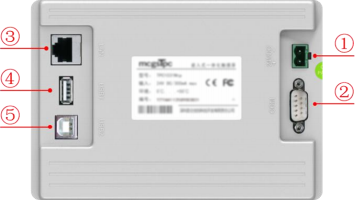

TPC7032Ti is Kunlun Tech’s mid‑to‑high‑end embedded integrated industrial HMI touch screen, featuring a 7‑inch TFT LCD screen with 800×480 resolution, 262K display colors and 250cd/m² brightness, adopting fourth‑order resistive touch and powered by Cortex‑A7 multi‑core 800MHz processor with 128MB flash and data storage as well as built‑in hardware clock. It runs with McgsPro configuration software and comes with rich interfaces including isolated COM1(RS232)/COM2(RS485) serial ports, 10/100Mbps adaptive Ethernet port, one USB Host and one USB Slave port to support project upload & download, firmware upgrade and data import‑export. With outer dimension of 203mm×149mm and cabinet cut‑out size 192mm×138mm, the front panel achieves IP65 protection grade, works reliably at 0℃‑45℃ with 5%‑90% non‑condensing humidity and obtains CE & FCC certifications. It supports hook panel installation, touch calibration and replaceable CR2032 3V clock battery, and can be pasted with three‑protection film for dust and oil resistance. This 24±20%VDC powered HMI realizes functions such as status monitoring, parameter setting, real‑time & historical curve, alarm browsing and formula management, widely applied for connecting PLCs and automation devices in machinery equipment, production lines and various industrial automation scenarios.

l Product Dimensions

External dimensions

Opening size

l Installation method

Note before installation: The front end of the screws must be basically flush with the hanger edge.

Hook installation

Installation angle

Battery Location: On the circuit board inside the TPC product

Battery Specification: CR2032 3V Lithium Battery

Battery Removal: Remove the securing adhesive above the battery, gently pull the positive terminal clip, and the battery will pop out automatically.

Battery Installation: First place the battery into the positive terminal clip, then gently press the other end down until it fits under the plastic clip. Verify that the battery is properly seated in both plastic clips and the metal positive terminal clip.

1.5.1  Replacement battery

                                                                           Remove battery                                                             Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it.

Repeat this action until the message "New calibration settings have been measured" appears.

Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Applying a triple protection film to the TPC can effectively prevent contamination and corrosion caused by dust, oil stains, and other substances generated during production. Therefore, if necessary, the TPC can be protected with a triple protection film. This section takes the 1271Gn model as an example; the film application steps for other TPC models are similar.

l Preparation Tools: Matched triple protection film for TPC (available through the TPC's purchase channel), dust-free cloth, anti-static environmentally friendly cleaner, and roller.

l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l Precautions:

1）Before applying the Triple Protection Film, the factory-installed PET protective film must be peeled off.

2）The Triple Protection Film is a consumable. If edge lifting or bubbling is detected, it should be replaced with a new one.

3）When replacing the Triple Protection Film, peel it up from the bottom right corner of the front panel. Be

careful not to scratch the sealed film.

2 Project Download

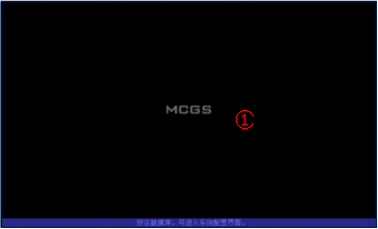

Step 1: Connect a 24 V DC power supply to the TPC. After powering on, the screen will display the progress bar with the message: "Press and hold the touch screen to enter the system configuration interface." At this point, tap TPC① to enter the startup configuration interface; if no action is taken, the system will automatically enter the operational interface.

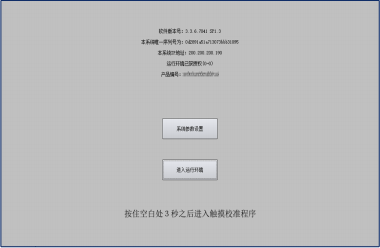

Step 2: Click the "System Parameter Settings" button ② to enter the TPC system settings interface.

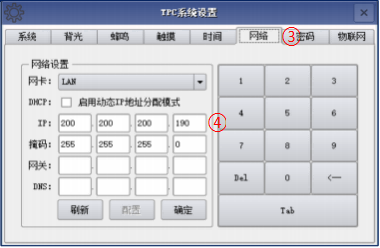

Step 3: Select the Network Settings tab ③, then configure the TPC IP address ④; the default TPC IP address is 200.200.200.190.

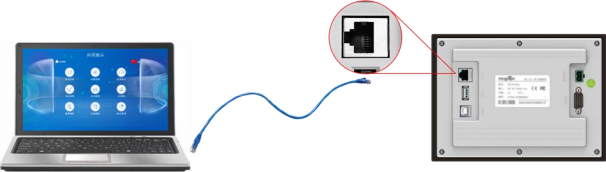

Step 4: Connect the computer to the TPC using a network cable, and set the computer's IP address to the same subnet as the IP address of the TPC LAN port to which it is connected.

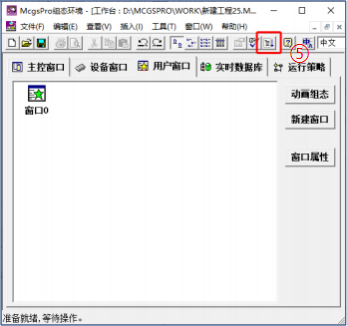

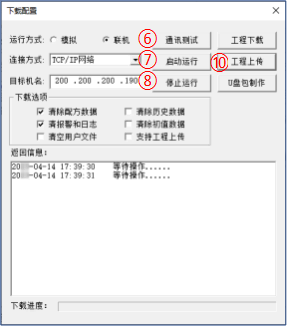

Step 5: Open the TPC project using McgsPro. Click "Download Project⑤", open the downloaded configuration properties page, select the "Online" operation mode⑥, choose the "TCP/IP Network" connection type⑦, enter the IP address of the target machine (named TPC)⑧, and click "Download Project⑨". Once the download is successful, as indicated by the prompt, click "Start" ⑩ or the " Enter Runtime Environment" button on the TPC interface to run the desktop project.
