MCGS TPC7011Ew 7 Inch Embedded HMI Touch Screen RISC‑V 800MHz Multiple Serial Ports IP65 DC24V

The MCGS TPC7011Ew is an economical 7‑inch embedded touch HMI from MCGS E‑Series, adopting RISC‑V C907 800 MHz multi‑core processor, 1024×600 resolution TFT LCD and four‑wire resistive touch, it provides dual‑channel RS485, RS232 and optional RS422 communication together with mode‑switchable USB 2.0 port for file transfer and project downloading. Certified CE/FCC with IP65 front‑panel protection and DC24V input, it supports hook embedded cabinet mounting and fits well for water‑supply, irrigation and general industrial automation; please note the standard firmware lacks driver for external USB‑PCAP capacitive touch glass.

l Product Dimensions

External dimensions

Opening size

l Installation method

Note before installation: The front end of the screws must be basically flush with the hanger edge.

Hook installation

Installation angle

Battery Location: On the circuit board inside the TPC product

Battery Specification: CR2032 3V Lithium Battery

Battery Removal: Remove the securing adhesive above the battery, gently pull the positive terminal clip, and the battery will pop out automatically.

Battery Installation: First place the battery into the positive terminal clip, then gently press the other end down until it fits under the plastic clip. Verify that the battery is properly seated in both plastic clips and the metal positive terminal clip.

1.5.1  Replacement battery

                                                                           Remove battery                                                             Install battery

1.5.2  Touch calibration

Enter TPC In the system settings interface, press and hold on a blank area. 3 The touch calibration process will begin in seconds.

TPC Calibration: Use a stylus or finger to lightly press and hold the center point of the crosshair cursor. When the cursor moves to the next point, lift it.

Repeat this action until the message "New calibration settings have been measured" appears.

Click the "Confirm Calibration" button to save and exit the calibration program.

Place your finger lightly and accurately on the center of the crosshair cursor and hold it for at least one second as the target moves across the screen. Repeat this action.

1.5.3  Three-proof film

Applying a triple protection film to the TPC can effectively prevent contamination and corrosion caused by dust, oil stains, and other substances generated during production. Therefore, if necessary, the TPC can be protected with a triple protection film. This section takes the 1271Gn model as an example; the film application steps for other TPC models are similar.

l Preparation Tools: Matched triple protection film for TPC (available through the TPC's purchase channel), dust-free cloth, anti-static environmentally friendly cleaner, and roller.

l Operating steps:

1) Clean the screen. Use a dust cloth to wipe away dirt from the front panel to prevent bubbles when applying the screen protector. If the TPC surface is heavily contaminated, use a cleaning agent to help clean contaminants in the crevices around the edges.

2) Remove the factory-installed PET protective film and clean any residue to prevent bubbles from forming during application.

3) Peel off a corner of the backing film on the right side. Align the right side of the film with the right side of the TPC. With your left hand, slowly peel off the backing film, and with your right hand, apply even pressure to gently push the film onto the screen from right to left

4) After applying the film, use a roller to press the adhesive backing firmly to prevent air bubbles.

l Precautions:

1）Before applying the Triple Protection Film, the factory-installed PET protective film must be peeled off.

2）The Triple Protection Film is a consumable. If edge lifting or bubbling is detected, it should be replaced with a new one.

3）When replacing the Triple Protection Film, peel it up from the bottom right corner of the front panel. Be

careful not to scratch the sealed film.

2 Project Download

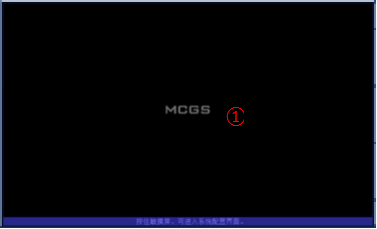

Step 1: Power the TPC using a 24V DC power supply. After powering on, the screen will display a progress bar with the message "Hold the touchscreen to access the system configuration interface." Tap TPC① to enter the startup configuration interface; if no action is taken, the device will automatically enter the engineering operation interface.

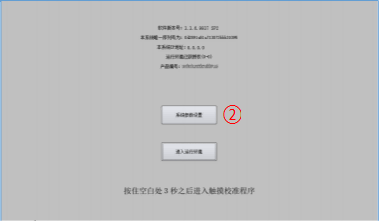

Step 2: Click the "System Parameters" button (②) to access the TPC System Settings interface.

Step 3: Access the TPC System Settings interface – USB – and set the TPC's USB port to "Slave Port" mode. Note: No devices should be connected to the main USB port at this time.

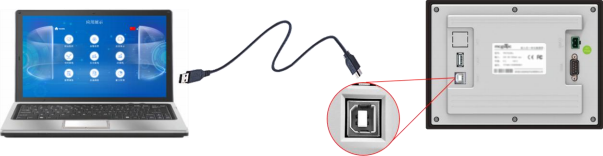

Step 4: Connect the computer to the display's USB port using a USB cable.

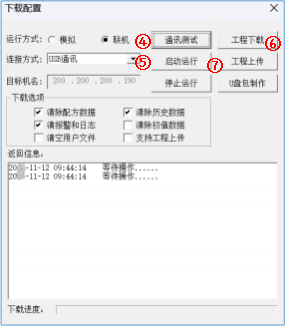

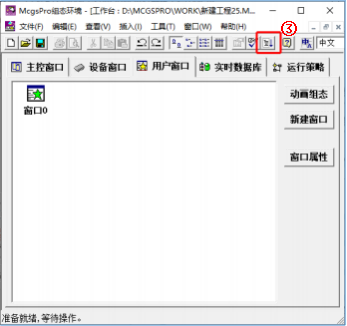

Step 5: Open the TPC project using McgsPro, click "Download Project ③", open the Download Configuration Properties page, select the "Online" runtime mode ④, choose the "USB Communication" connection method ⑤, and then click "Download Project ⑥". Once the  system  confirms  that  the project has been  successfully  downloaded,  click  "Start  Execution  ⑦"  or  the  "Enter  Runtime Environment" button on the TPC interface to run the handheld project.
