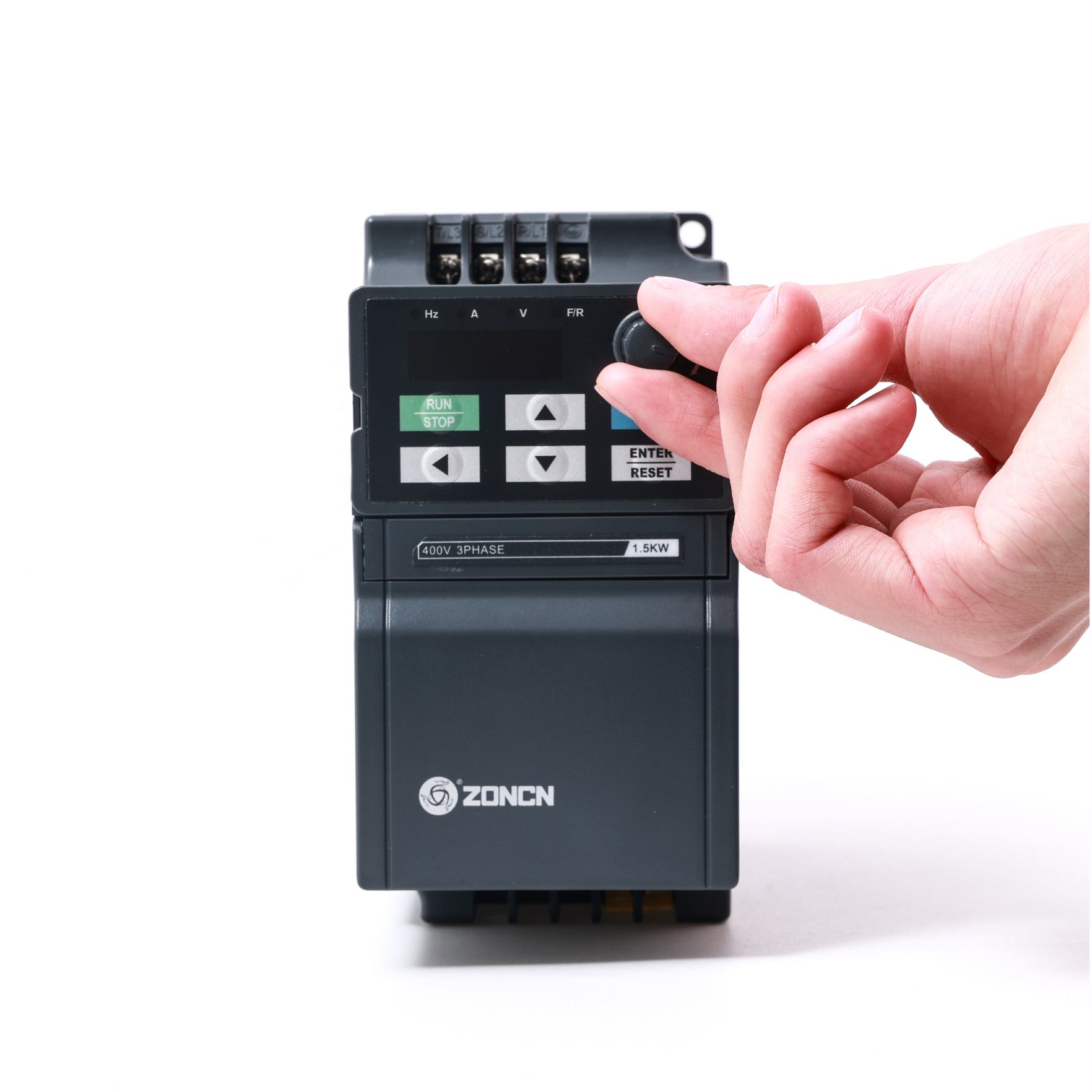

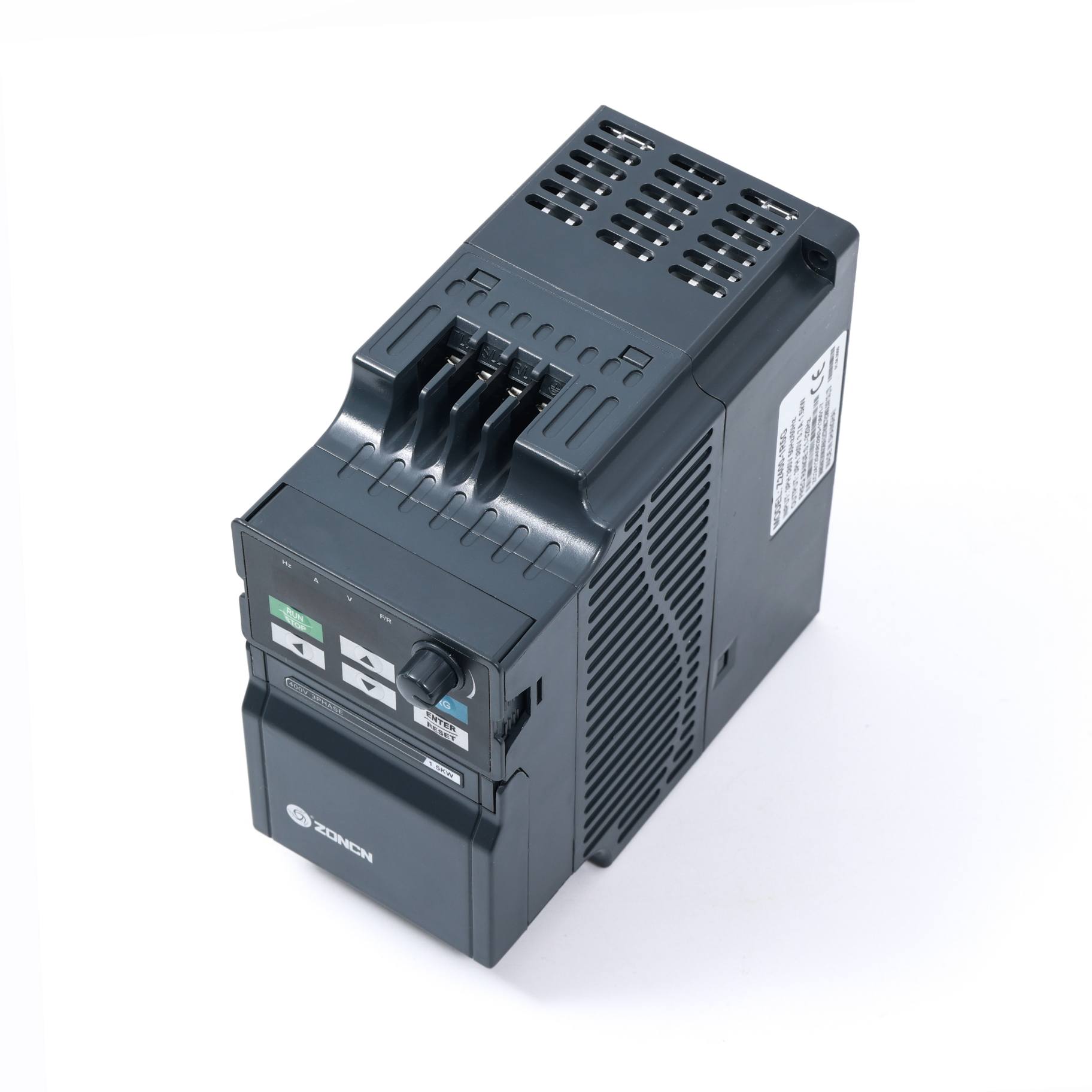

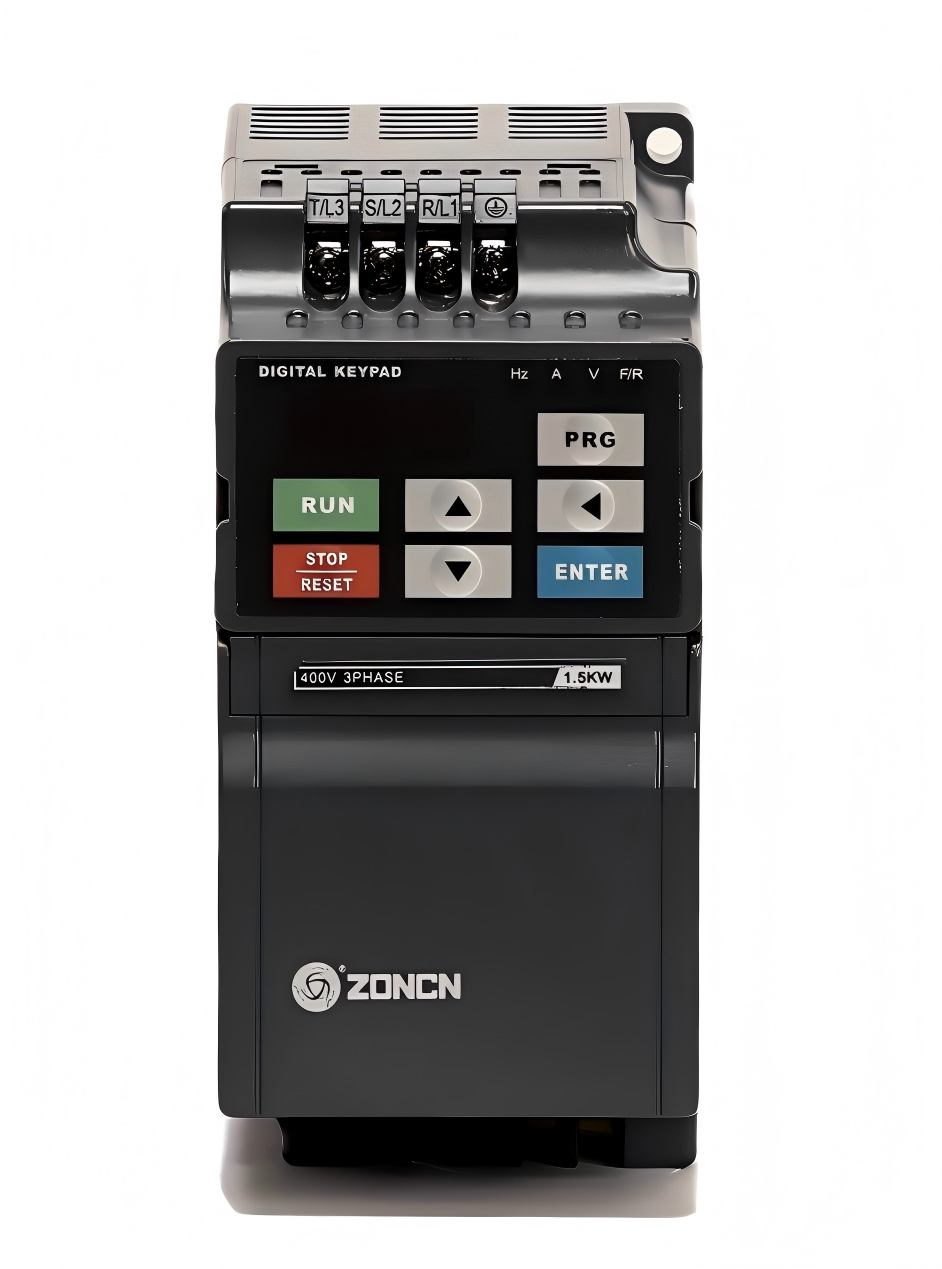

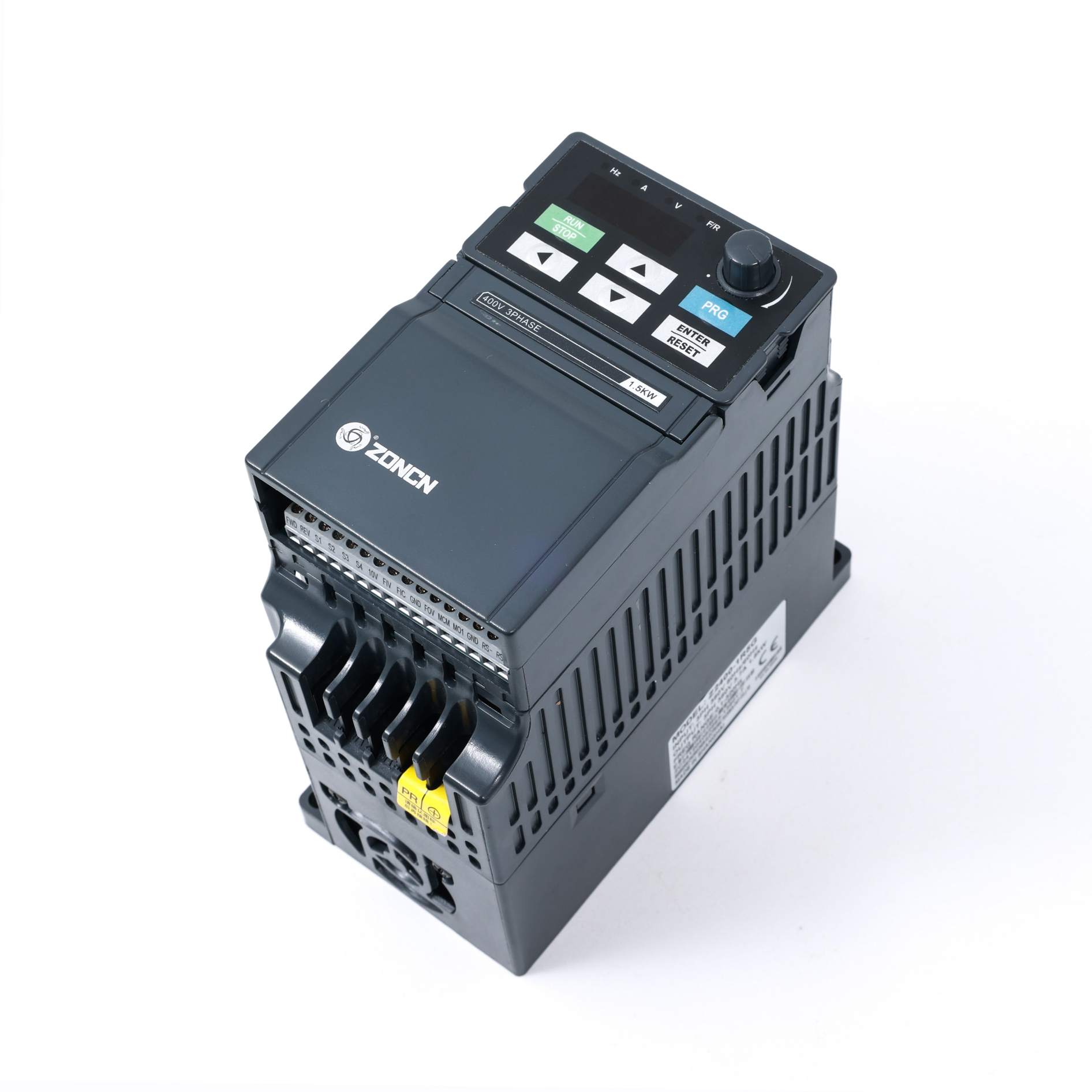

The 2000 series is a compact advanced vector VFD that provides open-loop vector control, featuring rapid current limiting and comprehensive protection functions. And the Z2000T series supports PM motor.
Item No :
Z2000Order(MOQ) :
20Payment :
Paypal/TT/Western UnionProduct Origin :
Shanghai, ChinaColor :
BlackLead Time :
18-30 daysWeight :
Maximum 200kgThe Z2000 series is a compact and high-performance vector frequency converter featuring robust overload capacity and high torque output, ensuring smooth motor startup under heavy loads. Its sleek, space-saving design integrates advanced power electronics to deliver precise speed and torque control, making it ideal for industrial applications where efficiency and reliability are critical. Equipped with comprehensive protection mechanisms, including overcurrent, overvoltage, overheating, and phase loss protection, it safeguards both the converter and connected motors from potential damage, enhancing system longevity and reducing downtime. Additionally, the Z2000 series supports permanent magnet synchronous motor (PMSM) control, improve overall system efficiency.
Product Features
· Senseless flux vector control (VC) V/F(Voltage/Frequency)Control
·Overload capacity is 60s for 150%of the rated current, 3s for 180%of the rated current.
·There are ten auxiliary frequency sources.
·It can implement fine tuning of auxiliary frequency and frequency synthesis
· Support PM motor (Z2000 T series)
· Power range:220V0.4~7.5kW
380V 0.75~450kW
Technical Specifications
| Item | Z2000 Specification | |
| Standard function | Control mode | Senseless flux vector control(SFVC)Voltage/Frequency(V/F)control |
| Maximum frequency | Vector control:0-320Hz VF control:0-3200Hz | |
| Carrier frequency | 1-16kHz.The carrier frequency is automatically adjusted based on the load features | |
| Input frequency solution | Digital setting:0.01Hz Analog setting: maximum frequency×0.025% | |
| Startup torque | G type:0.5Hz/150%(SFVC)Ptype:0.5Hz/100% | |
| Speed range | 1:100 | |
|
Speed stability accuracy |
±0.5% |
|
|
Overload capacity |
G type:60s for 150%of the rated current,3s for 180%of the rated current. P type:60s for 120%of the rated current,3s for 150%of the rated current |
|
| Torque boost | Auto boost; Customized boost 0.1%-30.0% | |
| VF curve | Line V/F curve; Multi-point V/F curve; N-power V/F curve | |
| V/F separation | Two types: complete separation; half separation | |
|
Ramp mode |
Straight-line ramp; S-curve ramp; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
|
|
DC braking |
DC braking frequency:0.0Hz to maximum frequency Braking time:0.0~100.0s Braking action current value:0.0%~100.0% |
|
|
JOG control |
JOG frequency range:0.00~50.00Hz JOG acceleration/deceleration time:0.0~6500.0s |
|
| Onboard multiple preset speed | It implements up to 16 speeds via the simple PLC function or combination of X terminal states. | |
| Onboard PID | It realizes process-controlled closed loop control system easily | |
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the mains voltage changes. | |
| Auto voltage/Over current stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current | |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive | |
| Torque limit and control | It can keep constant output voltage automatically when the mains voltage changes | |
Specifications
| Model | Rated Output Power （KW） | Rated Input Current （A） | Rated Output Current （A） | Motor Equipped （KW） |
| Input Voltage(V):1PH/3PHAC220V±15% | ||||
|
Z2200-0R4G |
0.4 |
5.4 |
2.5 |
0.4 |
|
Z2200-0R75G |
0.75 |
7.2 |
5 |
0.75 |
|
Z2200-1R5G |
1.5 |
10 |
7 |
1.5 |
|
Z2200-2R2G |
2.2 |
16 |
11 |
2.2 |
|
Z2200-3R7G |
3.7 |
23 |
16.5 |
3.7 |
|
Z2200-5R5G |
5.5 |
21 |
25 |
5.5 |
|
Z2200-7R5G |
7.5 |
31 |
32 |
7.5 |
| Input Voltage(V):3PH AC380V±15% | ||||
|
Z2400-0R75G |
0.75 |
3.8 |
2.5 |
0.75 |
|
Z2400-1R5G |
1.5 |
5 |
3.7 |
1.5 |
|
Z2400-2R2G |
2.2 |
5.8 |
5 |
2.2 |
|
Z2400-3R7G/5R5P |
3.7/5.5 |
10/15.0 |
9.0/13 |
3.7/5.5 |
|
Z2400-5R5G |
5.5 |
15 |
13 |
5.5 |
|
Z2400-7R5P |
7.5 |
20 |
17 |
7.5 |
|
Z2400-7R5G/11P |
7.5/11 |
20/26 |
17/25 |
7.5/11 |
|
Z2400-11G/15P |
11/15.0 |
26/35 |
25/32 |
11/15.0 |
|
Z2400-15G/18.5P |
15/18.5 |
35/38 |
32/37 |
15/18.5 |
|
Z2400-18.5G/22P |
18.5/22 |
38/46 |
37/45 |
18.5/22 |
|
Z2400-22G/30P |
22/30 |
46/62 |
45/60 |
22/30 |
|
Z2400-30G/37P |
30/37 |
62/76 |
60/75 |
30/37 |
|
Z2400-37G/45P |
37/45 |
76/90 |
75/90 |
37/45 |
|
Z2400-45G/55P |
45/55 |
90/105 |
90/110 |
45/55 |
|
Z2400-55G |
55 |
105 |
110 |
55 |
|
Z2400-75P |
75 |
140 |
150 |
75 |
|
Z2400-75G/90P |
75/90 |
140/160 |
150/176 |
75/90 |
|
Z2400-90G/110P |
90/110 |
160/210 |
176/210 |
90/110 |
|
Z2400-110G/132P |
110/132 |
210/240 |
210/253 |
110/132 |
|
Z2400-132G/160P |
132/160 |
240/290 |
253/300 |
132/160 |
|
Z2400-160G/185P |
160/185 |
290/330 |
300/340 |
160/185 |
|
Z2400-185G/200P |
185/200 |
330/370 |
340/380 |
185/200 |
|
Z2400-200G/220P |
200/220 |
370/410 |
380/420 |
200/220 |
|
Z2400-220G/250P |
220/250 |
410/460 |
420/470 |
220/250 |
|
Z2400-250G/280P |
250/280 |
460/500 |
470/520 |
250/280 |
|
Z2400-280G/315P |
280/315 |
500/580 |
520/600 |
280/315 |
|
Z2400-315G/350P |
315/350 |
580/620 |
600/640 |
315/350 |
|
Z2400-350G/400P |
350/400 |
620/670 |
640/690 |
350/400 |
|
Z2400-400G/450P |
400/450 |
670/790 |
690/790 |
400/450 |
|
Z2400-450G/500P |
450/500 |
790/835 |
790/860 |
450/500 |

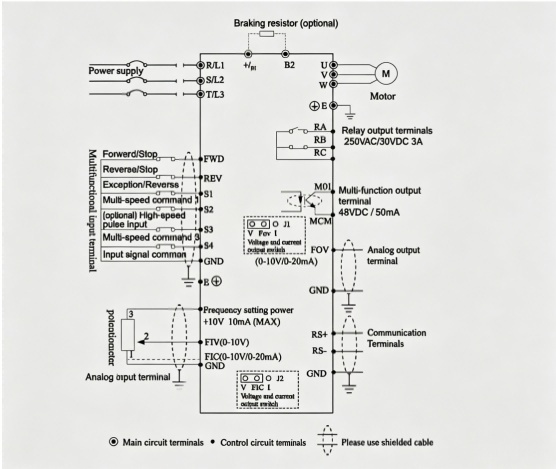

Typical Wiring Diagram
Remark:
1: Below 37kW(include 37kW)built-in braking unit, built-in braking unit of 45~160kW are optional 2:Built-in DC reactor of 30~160kW are optional.
2: Built-in DC reactor of 30~160kW are optional.
Dimension
(1)0.4--22kW
(2)30--160kW
Model |
Outline Dimension(mm) | Install Size(mm） | Reactor Optional |
|||||
| W | H |
H1 |
D | A | B | Φd | ||
|
Z2200-0R4G |
72 |
142 |
一 |
152 |
62.7 |
132.7 |
5 |
一 |
|
Z2200-0R75G |
||||||||
|
Z2200-1R5G |
||||||||
|
Z2200-2R2G |
100 |
183 |
一 |
143 |
90 |
173 |
5 |
一 |
|
Z2200-3R7G |
||||||||
|
Z2200-5R5G |
130 |
260 |
一 |
184 |
120 |
250 |
5 |
一 |
|
Z2200-7R5G |
||||||||
|
Z2400-0R4G |
72 |
142 |
一 |
152 |
62.7 |
132.7 |
5 |
一 |
|
Z2400-0R75G |
||||||||
|
Z2400-1R5G |
||||||||
|
Z2400-2R2G |
||||||||
|
Z2400-3R7G/5R5P |
100 |
183 |
一 |
143 |
90 |
173 |
5 |
一 |
|
Z2400-5R5G |
||||||||
|
Z2400-7R5P |
130 |
260 |
一 |
184 |
120 |
250 |
5 |
一 |
|
Z2400-7R5G/11P |
||||||||
|
Z2400-11G/15P |
||||||||
|
Z2400-15G/18.5P |
195 |
280 |
一 |
179 |
182.5 |
266 |
7 |
一 |
|
Z2400-18.5G/22P |
||||||||
|
Z2400-22G/30P |
||||||||
|
Z2400-30G/37P |
245 |
390 |
425 |
193 |
180 |
410 |
7 |
Built-in DC reactor (Optional) |
|
Z2400-37G/45P |
||||||||
|
Z2400-45G/55P |
300 |
500 |
540 |
252 |
200 |
522 |
9 |
|
|
Z2400-55G |
||||||||
|
Z2400-75P |
||||||||
|
Z2400-75G/90P |
338 |
546 |
576 |
256.5 |
270 |
560 |
9 |
|
|
Z2400-90G/110P |
338 |
550 |
580 |
300 |
270 |
564 |
9 |
|
|
Z2400-110G/132P |
||||||||
|
Z2400-132G/160P |
400 |
675 |
715 |
310 |
320 |
695 |
11 |
Without DC reactor |
|
Z2400-160G/185P |
||||||||
|
Z2400-132G/160PZ |
400 |
871.5 |
915 |
310 |
320 |
895 |
11 |
Built-in DC reactor |
|
Z2400-160G/185PZ |
||||||||
