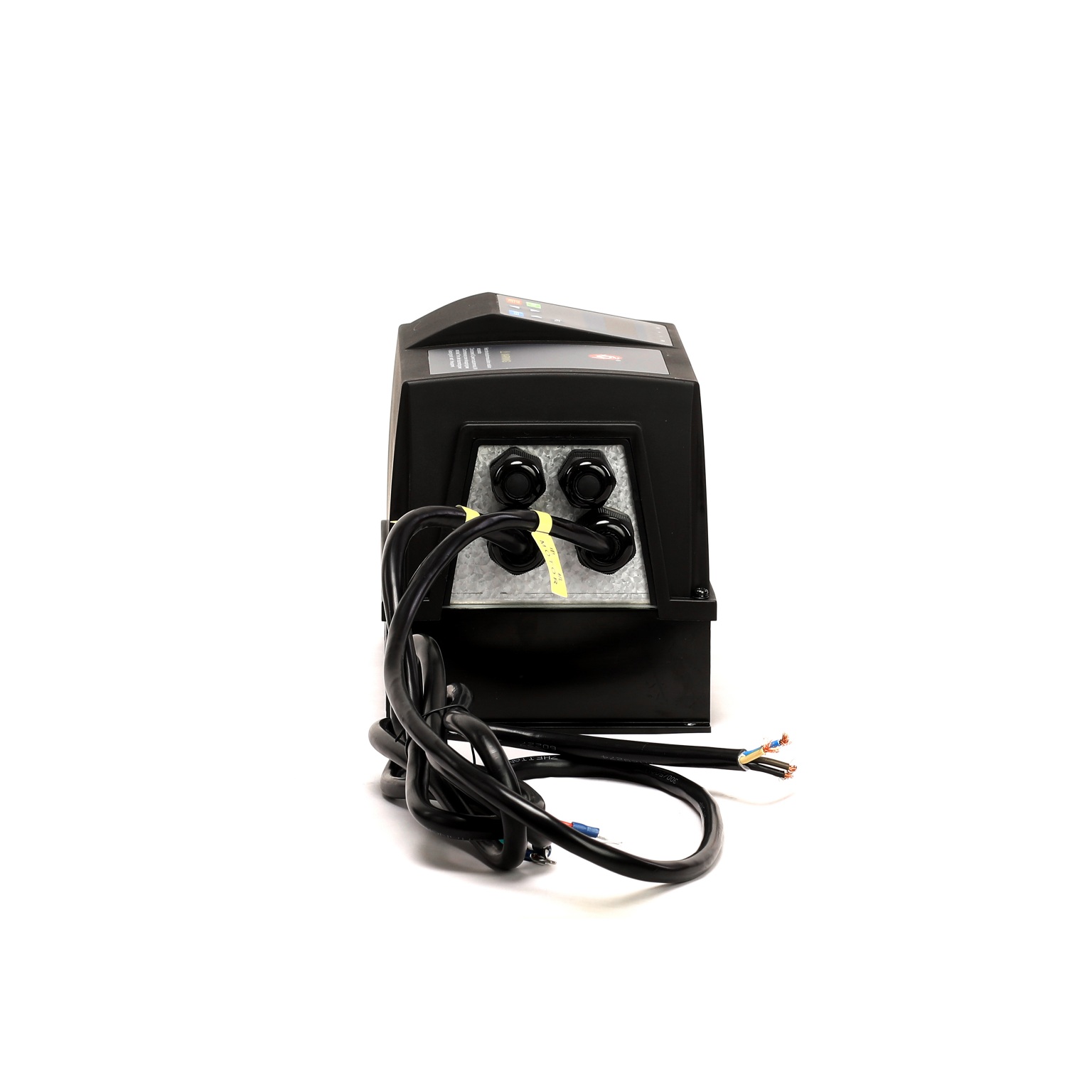

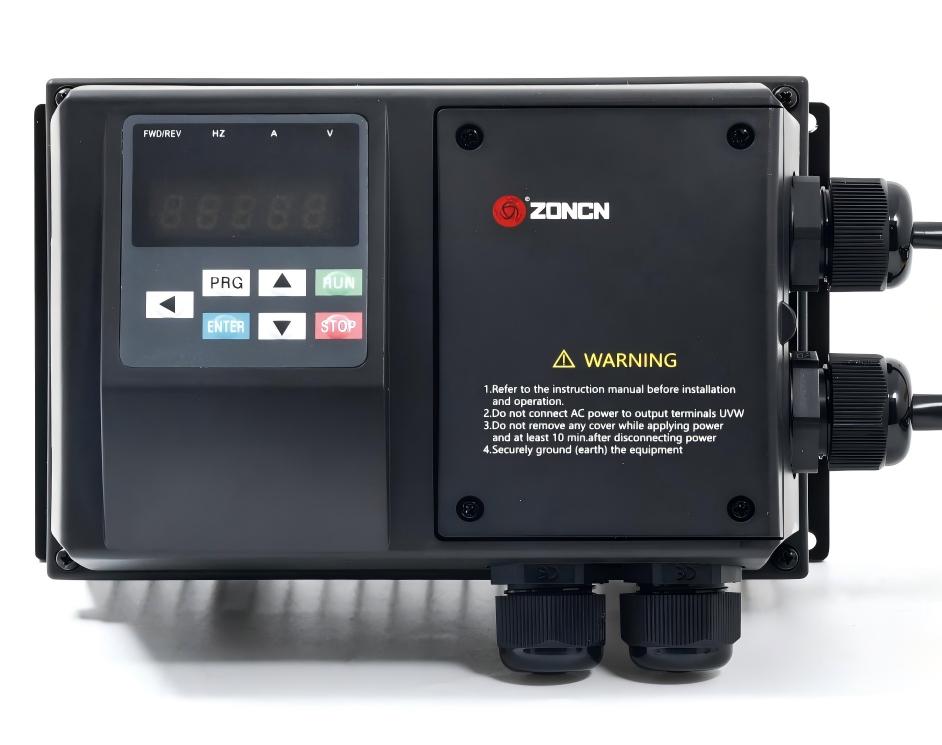

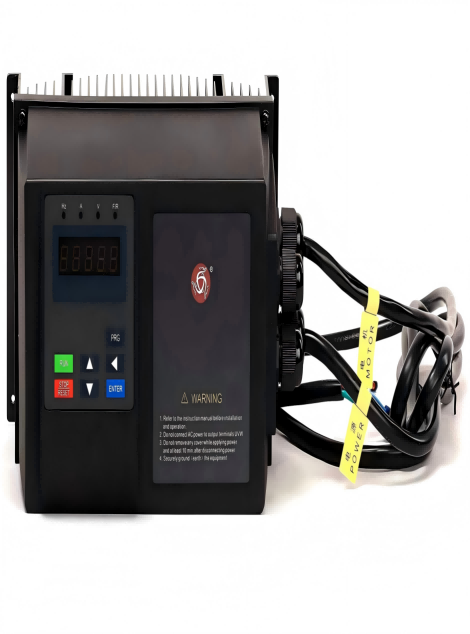

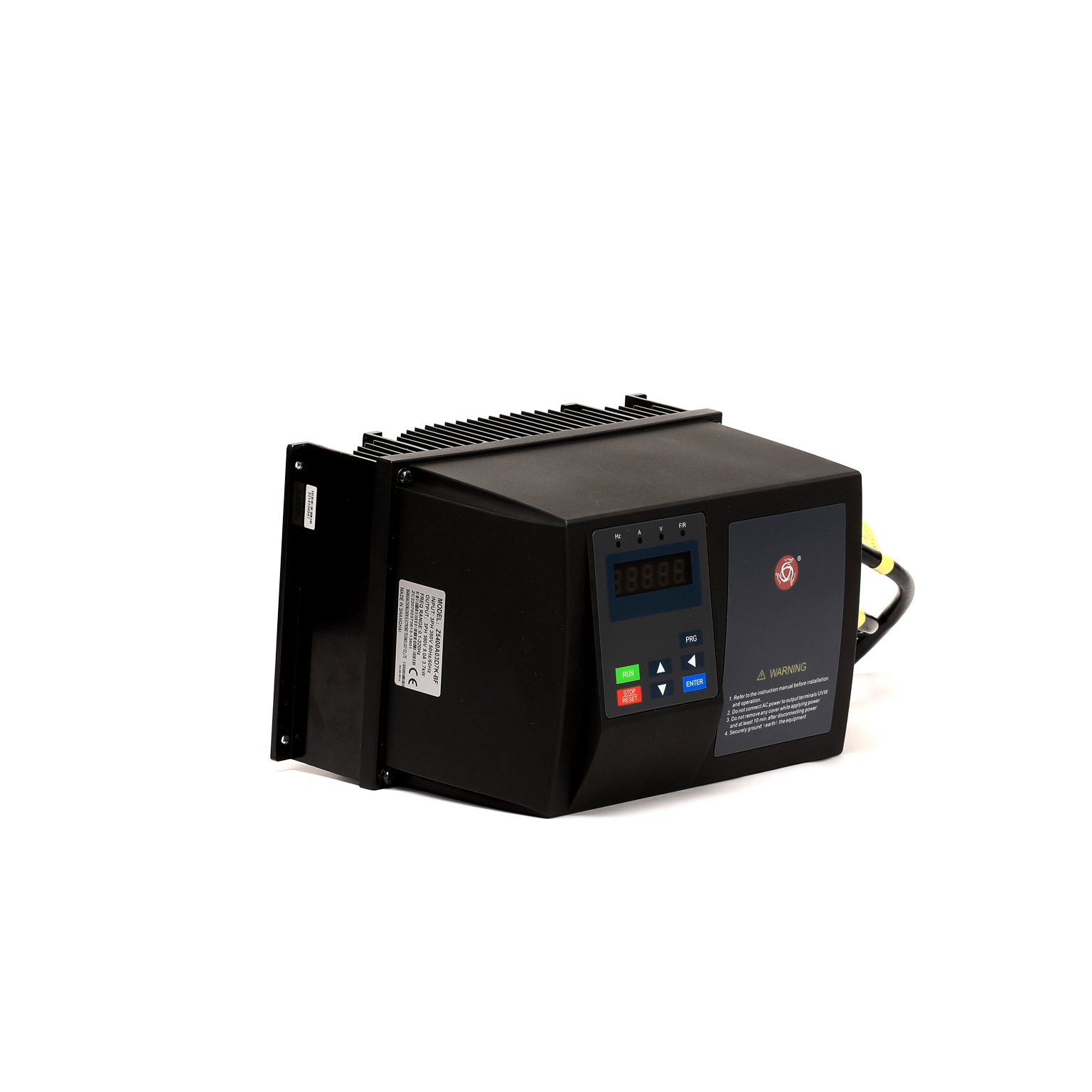

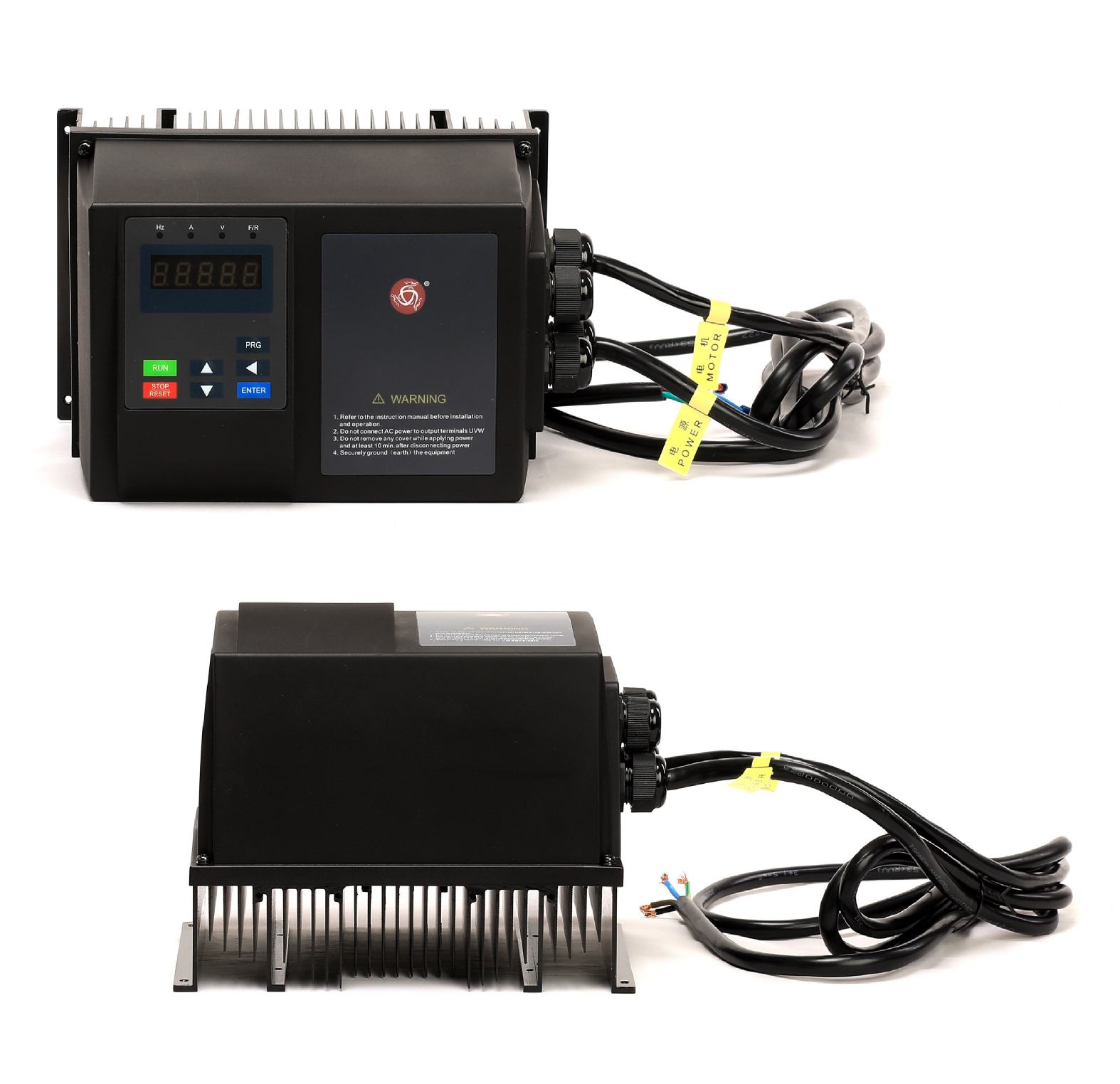

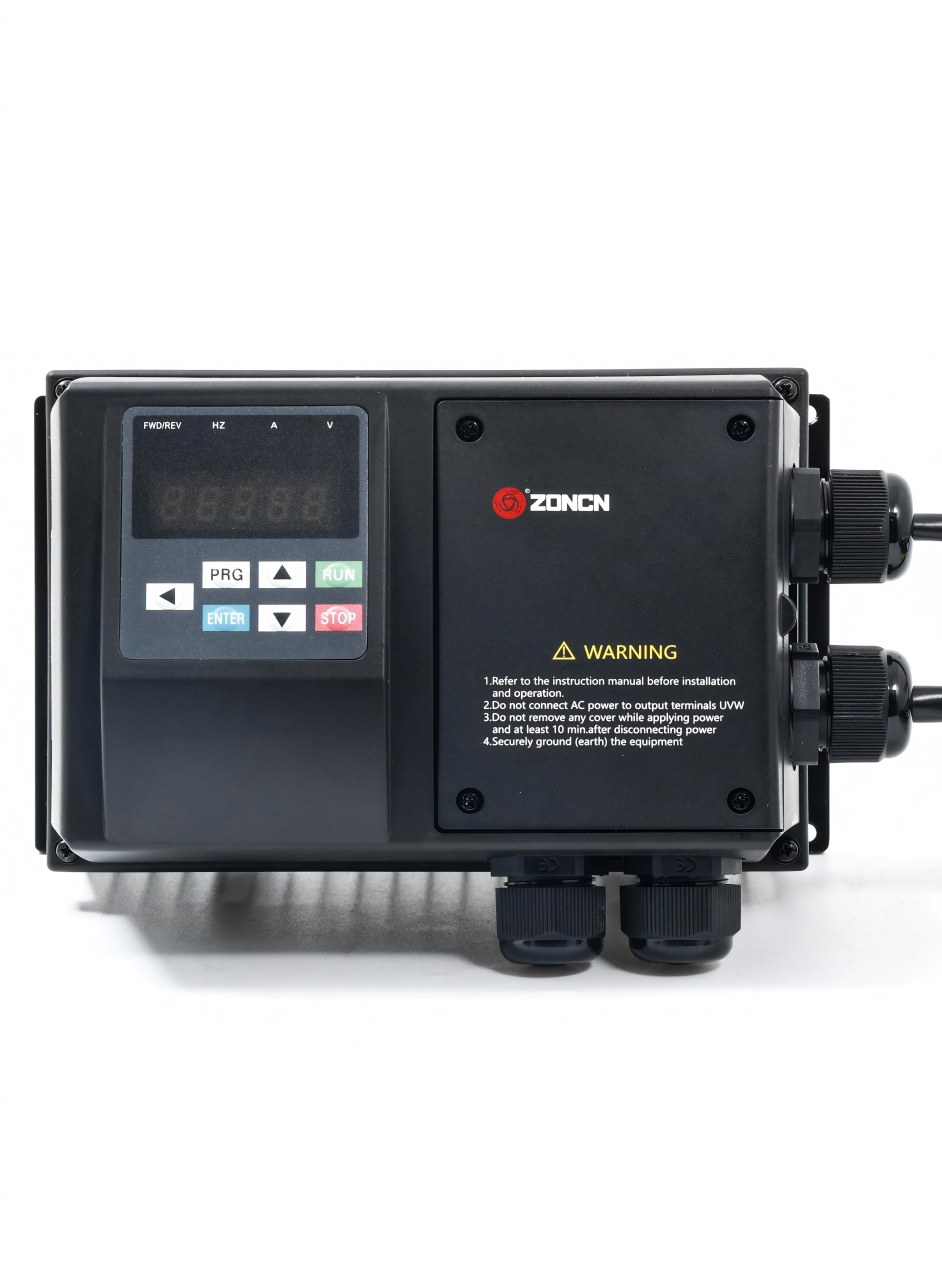

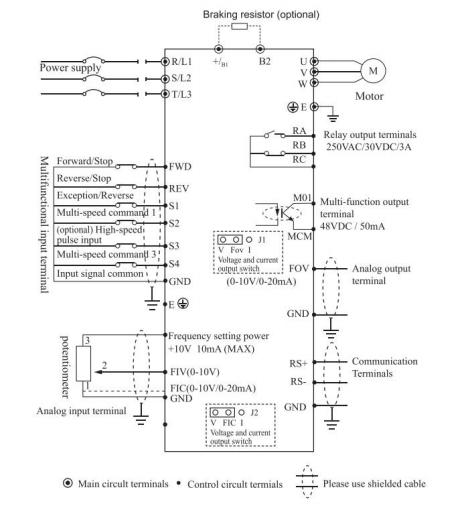

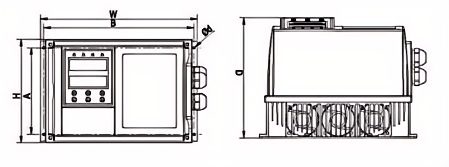

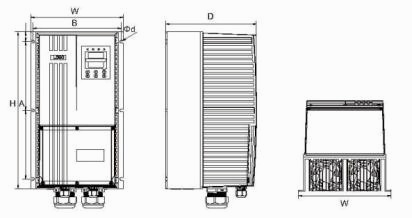

Z5000-BF Series IP54/65 High Protection Inverter

Control Mode

Sensorless flux vector control（SFVC）

Voltage/Frequency (V/F) Control

Maximum frequency

Vector control：0-320Hz    V/F control：0-3200Hz

Carrier frequency

1kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.

Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%

Start torque

G: Type:0.5Hz/150%(SVC)

P: Type:0.5Hz/100%

Speed range

1:100(SVC)

Speed stability accuracy

±0.5%(SVC)

Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.

Torque boost

Auto-boost ; Customized boost:0. 1%~30.0%

VF curve

Line V/F curve；Multi-point V/F curve；N-power V/F curve

VF separation

2 types: complete separation；half separation

Ramp Mode

Straight-line  ramp ； S-curve  ramp ； Four  groups  of  acceleration/deceleration time:0~6500.0s

Auto voltage regulation（AVR）

It can keep constant output voltage automatically when the mains voltage changes

Rapid current limit

It helps to avoid frequent over current faults of the AC drive.

Torque limit and control

It can keep constant output voltage automatically when the mains voltage changes

Onboard PID

It realizes process-controlled closed loop control system easily

JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s

DC braking

DC braking  frequency ： 0.00Hz  to  maximum  frequency         Braking  time ：

0.0- 100.0s Braking action current value：0.0%-100.0%

Instantaneous blackout doesn’t stop

The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.

Timing control

Timing range:0.0Min~6500.0Min

Communication

RS485 / Ether cat(optional)

Run command channel

Given by the panel，control terminals，serial communication port，can be switched by many ways

Frequency source

10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways

Auxiliary frequency source

10  kinds  of frequency  source,  can  easily  realize  micro  adjustment,  frequency Synthesizer

Input terminals

6 digital input terminals, one of which supports up to100 kHz high-speed pulse
