HMI

TPC7032Ti is a mid‑to‑high‑end embedded integrated HMI touch screen developed by Kunlun Tech for industrial automation scenarios. Equipped with 7‑inch TFT LCD display (800×480 resolution, 262K colors), fourth‑order resistive touch panel, Cortex‑A7 multi‑core 800MHz processor and 128MB storage. It supports McgsPro configuration software, built‑in isolated COM1(RS232)/COM2(RS485) serial ports, 10/100Mbps adaptive Ethernet, dual‑USB interfaces. The front panel reaches IP65 protection grade, works stably within 0℃‑45℃ working temperature. Widely used for equipment status monitoring, parameter setting, real‑time & historical curve display, alarm browsing, formula management and other industrial HMI applications. Powered by 24±20% VDC, it complies with CE/FCC industrial certification, perfect for machinery, production line and various industrial control systems.

MCGS TPC7011Ew belongs to Kunlun MCGS E‑Series cost‑efficient embedded touch HMI. Equipped with RISC‑V C907 multi‑core 800 MHz processor, 7‑inch TFT LCD 1024×600 resolution and four‑wire resistive touch screen. Rich serial communication resources: RS232, dual‑channel RS485 and optional RS422. USB port can toggle between Host and Slave for USB‑disk data exchange or PC project downloading. Front‑panel IP65 protection, DC24V power, hook‑style embedded cabinet mounting. Perfect for water‑supply, irrigation, industrial machinery and PLC automation projects.

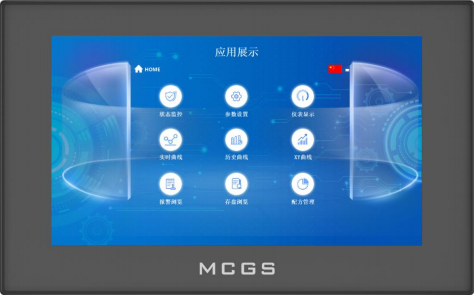

The compact‑size MCGS TPC7011Em is a 7‑inch embedded HMI human‑machine interface of Kunlun MCGS E‑Series, built around RISC‑V C907 800 MHz CPU, equipped with 1024×600 TFT screen and four‑wire resistive touch, offering abundant RS232, RS485 and optional RS422 serial ports plus configurable USB Host/Slave for project upload and download. Designed for narrow control cabinets with small overall dimension, it delivers IP65 front‑panel rating and DC24V power supply for small‑scale automation equipment and pump control systems, while its embedded system cannot drive external third‑party USB‑PCAP touch sensors.

MCGS TPC7011El is a cost‑effective E‑Series embedded human‑machine interface from Kunlun MCGS. Powered by RISC‑V C907 multi‑core 800 MHz processor, 7‑inch TFT LCD with 1024×600 resolution and four‑wire resistive touch. Equipped with multi‑group RS232/RS485/RS422 serial interfaces and switchable USB Host/Slave port. Front panel reaches IP65 dust‑water protection grade, DC24V power supply, hook‑type embedded installation for control cabinet. Ideal to connect with PLC, inverter and PID controller for machinery, water treatment and pump‑fan automation.

MCGS TPC7011Et embedded HMI touch panel is designed for general‑purpose industrial automation. Compared with TPC7011Ex model, it adds one 10/100Mbps adaptive Ethernet interface for network downloading, data transmission and network communication with PLC and other field devices. Powered by RISC‑V multi‑core CPU, with multi‑serial ports and dual‑USB, supporting project download via network, USB cable or USB flash drive. IP65 front panel for dust‑proof and water‑proof in workshop environment.

MCGS TPC7011Ex is an embedded all‑in‑one touch HMI panel for general‑purpose industrial automation. Adopting high‑performance RISC‑V multi‑core CPU, 7‑inch high‑brightness TFT screen, resistive touch input. Multiple serial communication ports allow easy connection with PLC, inverter, servo and other field devices. Pre‑installed McgsPro configuration software for fast project development and downloading via USB cable or USB flash disk.

The MCGS TPC7032Tw is a mid‑to‑high‑end 7‑inch integrated industrial touch HMI from Kunlun MCGS. Powered by Cortex‑A7 multi‑core 800 MHz processor, this human‑machine interface adopts four‑wire resistive touch technology, built‑in RS232, RS485 communication ports and dual‑function USB port. Front panel reaches IP65 protection grade, suitable for cabinet embedded installation for factory automation, PLC connection, data monitoring, parameter setting, curve recording and alarm management.

TPC7012Ex is MCGS E‑series embedded industrial HMI without ethernet port, built on RISC‑V C907 multi‑core 800MHz processor. It features 7‑inch TFT 800×480 four‑wire resistive touch display, multiple serial interfaces RS232/RS485/RS422 and mutual‑exclusive USB Host & Slave. Pre‑installed McgsPro configuration software. Front‑panel IP65 protection, CE & FCC certification, industrial EMC level‑2. Powered by 24±20%VDC, ideal for cabinet‑mount machinery and factory automation projects.

TPC7012Et is MCGS E‑series embedded industrial HMI powered by RISC‑V C907 multi‑core 800MHz processor. Equipped with 7‑inch TFT 800×480 resistive touch display, built‑in 10/100M Ethernet port, multiple serial ports RS232/RS485/RS422, USB Host & Slave. Pre‑installed McgsPro configuration software. Front‑panel IP65 protection grade, CE & FCC certified, industrial EMC level‑2. 24±20%VDC power input, fits cabinet mounting for machinery and factory automation systems.

TPC7022Ew is cost‑effective mid‑low range embedded HMI touch screen from MCGS Kunlun Jichuang, designed for general industrial automation applications. It adopts four‑wire resistive touch panel, stable industrial hardware platform, pre‑installed McgsPro configuration software, flexible serial communication ports for connecting PLC, inverter and other field devices. Front‑panel IP65 rating provides reliable dust‑proof and splash‑proof performance for cabinet mounting scenarios.

TPC7022Ei belongs to MCGS E‑series mid‑low‑cost all‑in‑one embedded touchscreen HMI. Without built‑in WiFi or 4G IoT module. It offers abundant serial and USB resources, convenient for multi‑device networking. IP65 front panel adapts to ordinary factory workshop conditions. Supports real‑time monitoring, parameter setting, alarm log, historical data and recipe management. Widely applied for small processing equipment, water‑treatment, packaging auxiliary machines and cost‑sensitive OEM automation systems.

TPC4013Ei belongs to MCGS E‑series mid‑low‑cost embedded all‑in‑one touchscreen HMI. Compact 4.3‑inch form factor is designed for small‑size control cabinets and cost‑oriented automation projects. The IP65 front panel resists dust and oil splashes on workshop site. Support data monitoring, parameter setting, alarm display and recipe management. Widely adopted for small processing machines, pump control, fan equipment and general‑purpose industrial machinery.
