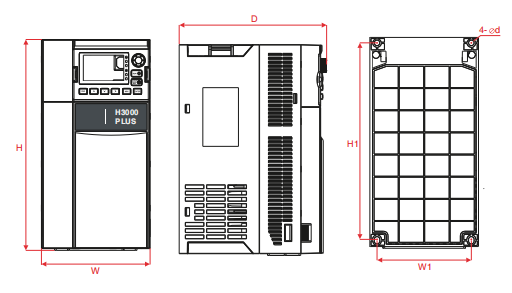

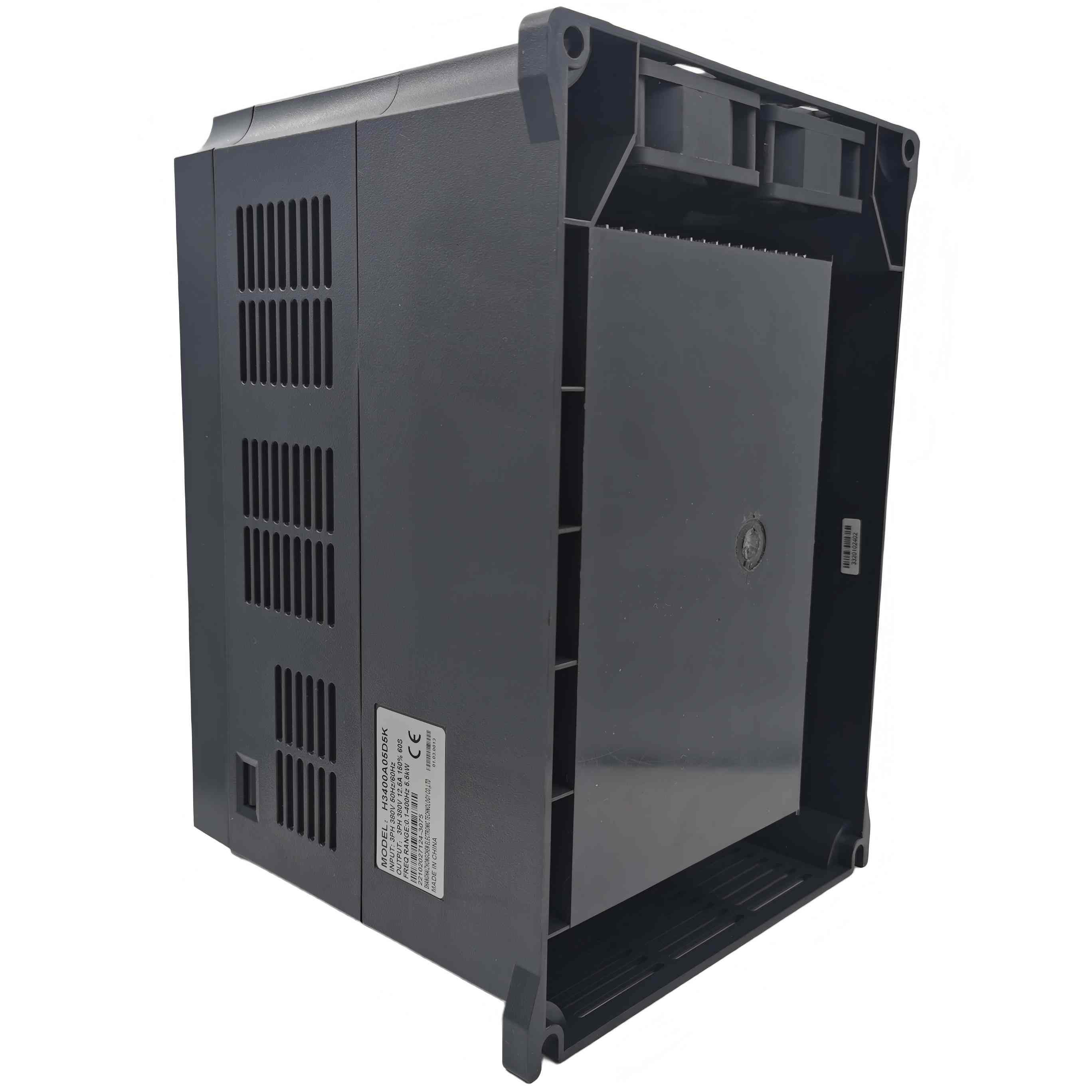

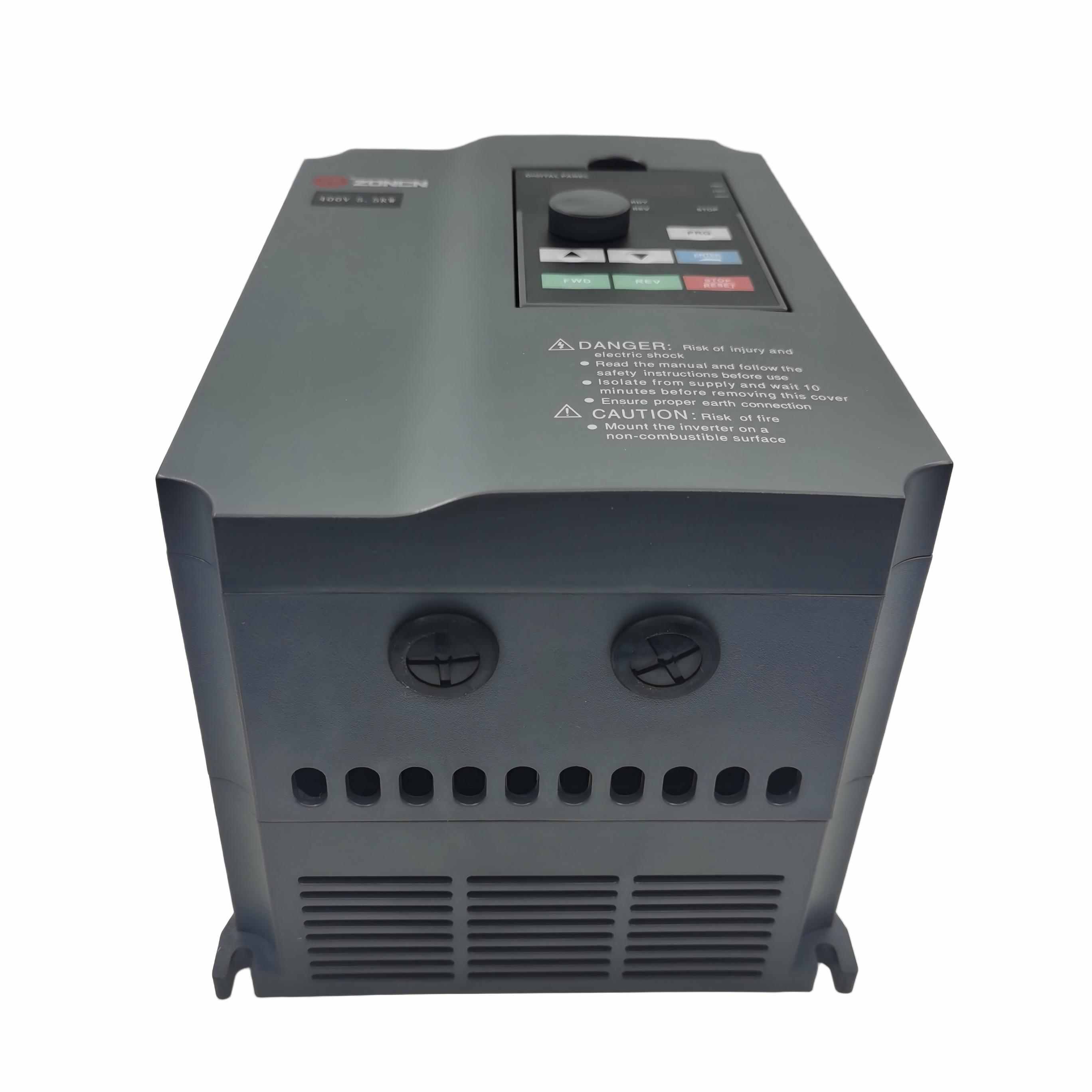

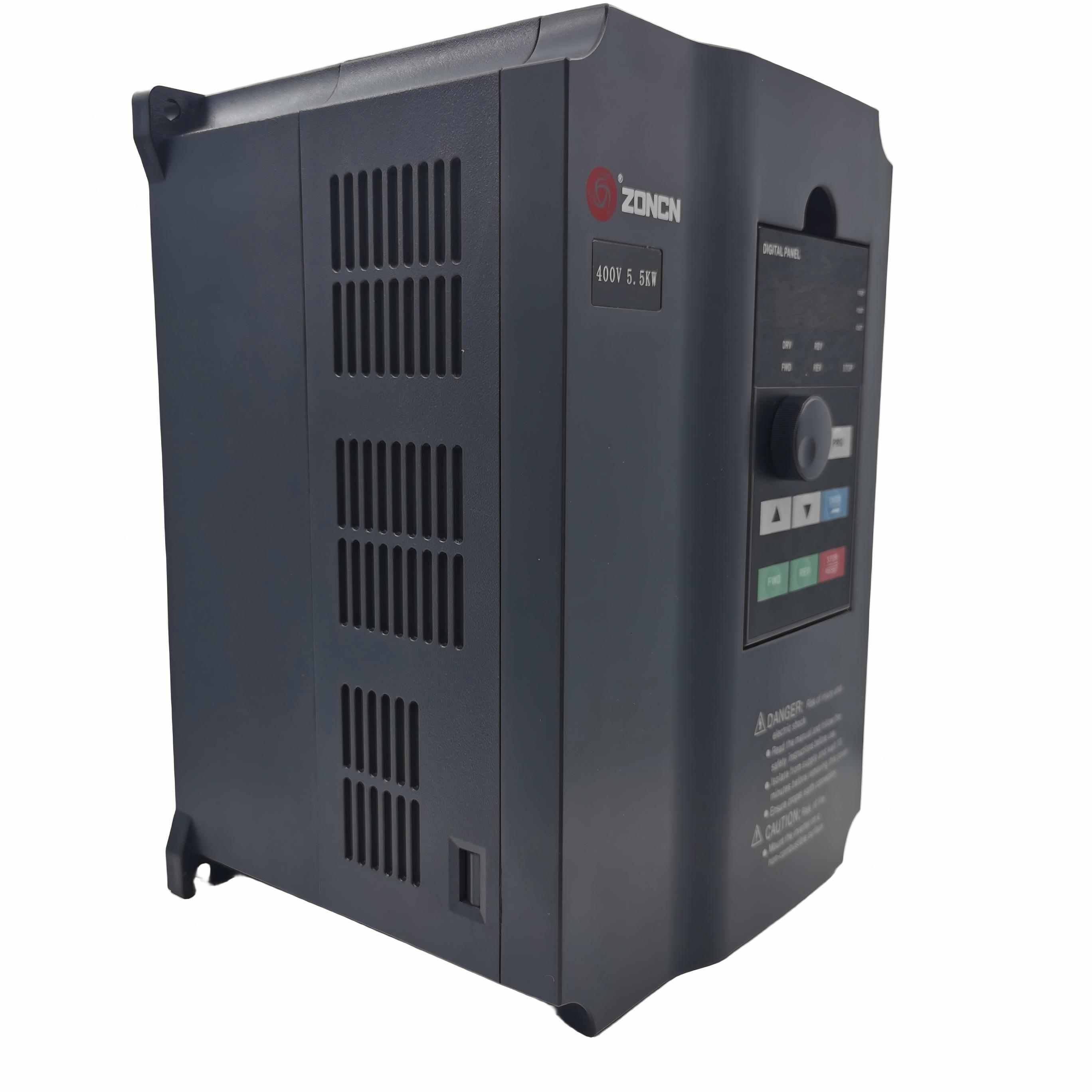

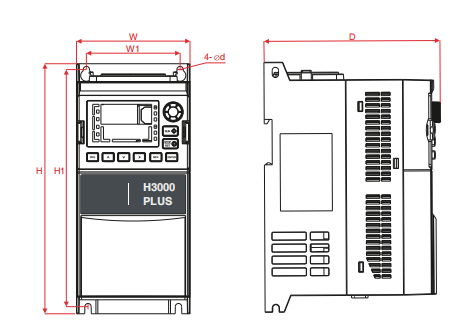

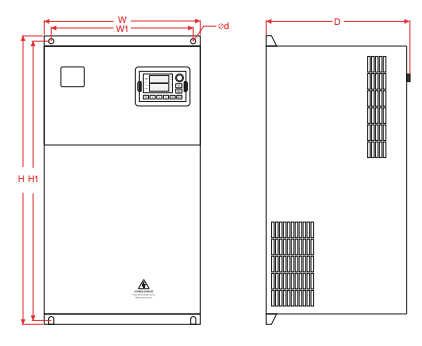

H3000 Series Open Loop General Purpose Drive

Item

H3000 Specification

Electrical Specifications

Input voltage

Single/three-phase 200-240V, three-phase 380-440V. Fluctuation does not exceed ±10%, imbalance rate < 3%

Input frequency

50/60Hz ±5%

Output voltage

0V - input voltage

Output frequency

Vector control: 0~300Hz, V/F control: 0~500Hz

Performance

Overload capacity

150% rated output current for 1 minute, 180% rated output current for 2 seconds

Control method

Open-loop vector control (SVC), V/F control

Run command setting method

Operation panel setting, external terminal setting, communication setting

Speed setting method

Digital setting, analog setting/pulse setting, communication setting

Speed setting resolution

Digital setting: 0.01Hz, Analog setting: 1% × maximum frequency

Speed control accuracy

SVC: ±0.5%

Speed control range

SVC: 1:100

Torque control response

SVC: <200ms

Starting torque

SVC: 150% rated torque/0.5Hz

Special Feature

Programmable input and output terminals

Input & Output terminal function can be edited

Process PID adjustment function

Built-in process PID module

Simple PLC function

Built-in simple PLC module, which can realize timing and multi-segment frequency output

Textile wobble function

Built-in textile swing frequency function module

Water supply function

Built in constant pressure water supply parameter macro

Engraving machine function

Built in engraving machine high-frequency parameter macro

Fire mode

Built-in European fire mode parameter set

Operation Display

LED display

Set frequency, output frequency, output voltage, output current, motor speed, Output torque, digital terminals, status parameters, programming menu parameters and fault codes etc.

Indicator light

3 unit indicators, 4 status indicators

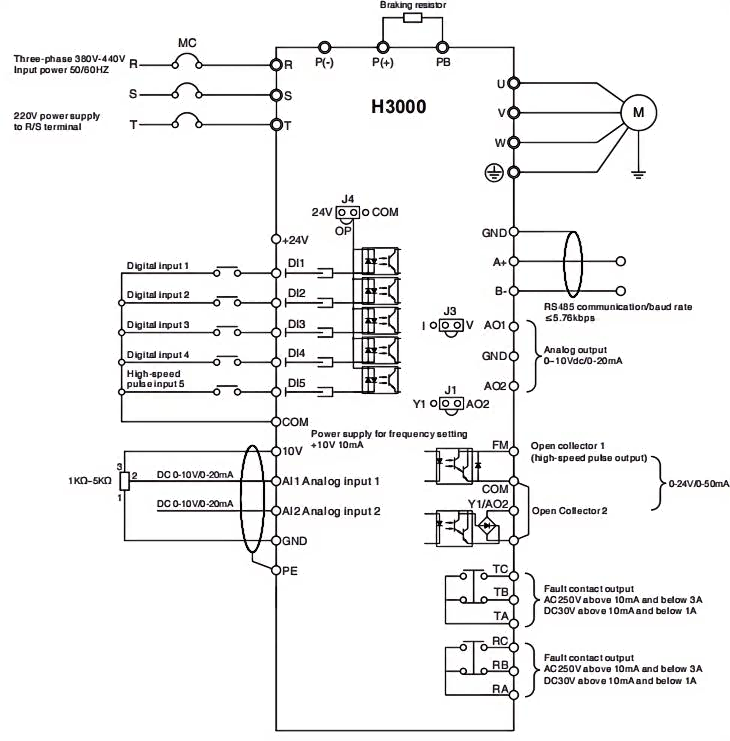

Input Output

External analog power supply

External analog power supply

External digital power supply

External digital power supply

Analog input

AI1: voltage 0-10V/0-20mA, AI2: voltage 0-10V/0-20mA

Analog output

AO1: 0-10V/0-20mA (voltage/current optional), AO2: 0-10V (voltage output)

Digital input

DI1 ~ DI5 (Can be selected as a high-speed pulse signal)

Digital output

FM, AO2, FM can be selected as high-frequency pulse signal output

Relay output

TA/TB/TC: Contact rating 250VAC/3A or 30VDC/1A

MODBUS communication

A+, B-

Protective Function

Overvoltage stall

Bus voltage automatic control to prevent overvoltage faults

Automatic current limiting protection

Output current is automatically limited to prevent over-current faults

Overload pre-alarm and alarm

Overload Pre-warning and protection

Output phase loss protection

Output phase loss automatic detection and alarm function

Overvoltage and overflow stall control

Automatically limit current and voltage during operation to prevent frequent over-current and over-voltage tripping

Output short-to-ground protection

Effective protection function for output short circuit to ground

Output phase-to-phase short circuit protection

Output interphase short circuit effective protection function

Environmental Characteristics

Working temperature

-10~+40°C, Maximum temperature is 50°C, Air Temperature change is less than 0.5°C/min, 40-50°C Derating is required, output current derating 2% for each 1°C.

Storage environment temperature

-40~+70°C

Application

Indoor, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt, etc.

Altitude

Less than 1000 meters, derating is required for more than 1000 meters.

Humidity

Less than 95%RH no condensation.

Vibration resistance

3.5m/s² at 2-9Hz, 10m/s² at 9-200Hz (IEC60721-3-3)

Protection degree

IP20

Pollution level

Class 2 (Dry, non-conductive dust pollution)

Certification

CE

The whole series has passed CE certification
