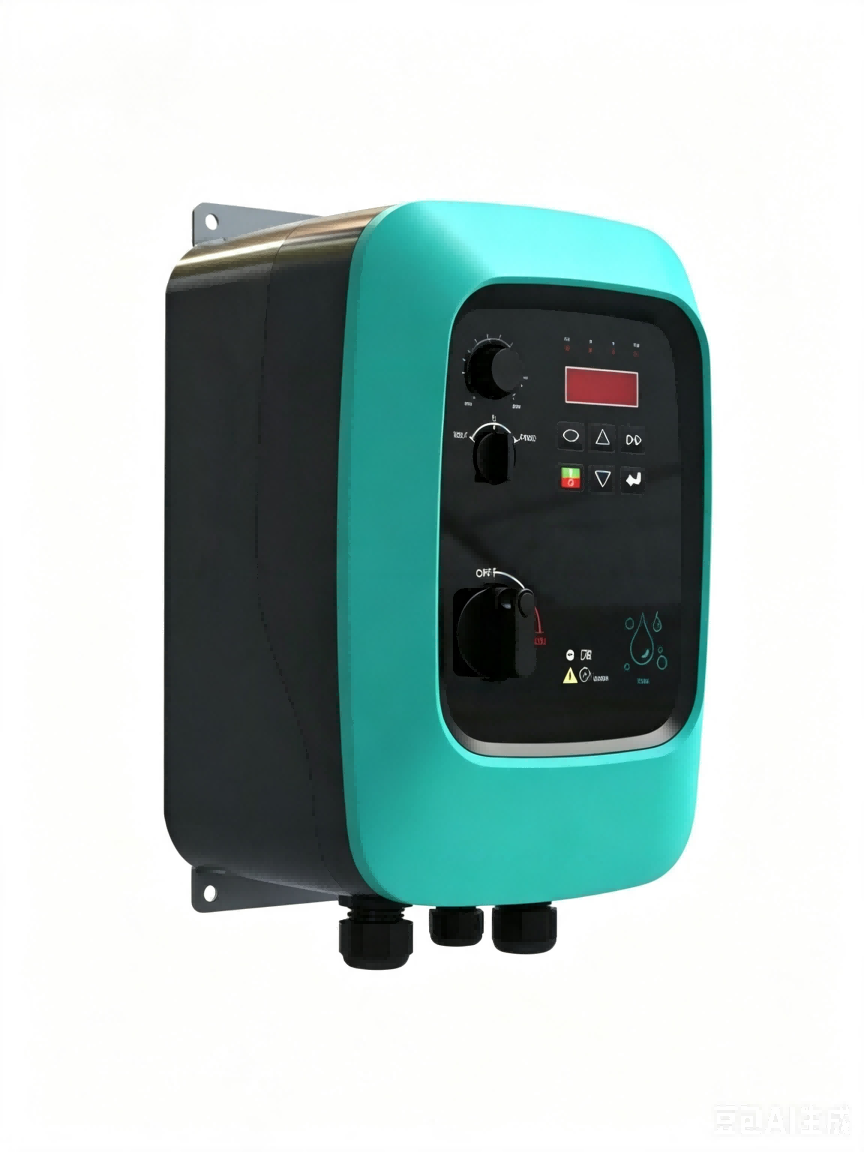

ZONCN compact motor-mounted inverter is engineered for direct installation onto motor housings. Equipped with an integrated power supply and operation switch, it eliminates the need for an independent control cabinet, greatly simplifying field wiring, installation and commissioning.
It comes with built-in C3 EMC filter across all power ratings and STO (Safe Torque Off) safety function. Standard Modbus RS485 communication is supported, while Profinet, EtherCAT, Profibus-DP, Modbus TCP and CAN bus are available as optional communication modules to satisfy diverse industrial networking demands.
Item No :
T200-BFOrder(MOQ) :
20Payment :
Paypal/TT/Western UnionProduct Origin :
Shanghai, ChinaColor :
greenLead Time :
18-30 daysWeight :
Maximum 73kgThis ZONCN compact inverter adopts a motor-mounted design, which can be directly installed on the motor body. Featuring an embedded power supply and operation switch, it removes the requirement for an additional control cabinet and significantly lowers overall system costs while streamlining installation, wiring and commissioning work.
The unit integrates a C3 EMC filter applicable to all power models, together with the STO (Safe Torque Off) safety function to meet industrial safety standards. Modbus RS485 is offered as standard communication interface. For advanced automation systems, optional communication modules support Profinet, EtherCAT, Profibus-DP, Modbus TCP and CAN bus, enabling seamless connection with various PLC and industrial control systems.
Product Features
Technical Specifications
| Item | T200-BF Specifications |
| Maximum frequency | 0~600Hz |
| Carrier frequency | 0.5kHz~16kHz; The carrier frequency can be automatically adjusted according to the load features. |
| Input frequency resolution | Digital setting: 0.01Hz; Simulation setting: maximum frequency x 0.025% |
| Control mode | Sen-open-loop vector control (without PG); V/F Control |
| Starting torque | G-type machine: 0.5Hz/150% (without PG); P-type machine: 0.5Hz/100% |
| Speed regulation range | 1:100 (No PG) |
| Speed stability accuracy | ±0.5% (No PG) |
| Torque control accuracy | ±5% (FVC) |
| Overload capacity | G type: 60s for 150% of the rated current, 3s for 180% of the rated current; P type: 60s for 120% of the rated current, 3s for 150% of the rated current. |
| Torque boost | Automatic torque boost; Manual torque increased by 0.1%~30.0% |
| V/F curve | Three types: linear, multi-point; Nth power V/F curve (Power 1.2, Power 1.4, Power 1.6, Power 1.8, Power 2) |
| V/F separation | Two methods: full separation and semi separation |
| Acceleration and deceleration curve | Linear or S-curve acceleration/deceleration mode. Four acceleration/deceleration times, acceleration/deceleration time range 0.0~6500.0s |
| DC braking | DC braking frequency: 0.00Hz~maximum frequency; Braking time: 0.0s~100.0s; Braking action current value: 0.0%~100.0% |
| Point-to-point control | Jogging frequency range: 0.00Hz~50.0Hz; Jogging acceleration/deceleration time 0.0s~6500.0s. |
| Simple PLC | Implements up to 16 speeds via the simple PLC function or combination of terminal states |
| Onboard PID | Realizes process-controller closed loop control system easily |
| Automatic voltage regulation (AVR) | When the voltage of the power grid changes, it can automatically maintain a constant output voltage |
| Overvoltage, overcurrent, and stall control | Automatic limitation of current and voltage during operation to prevent frequent overcurrent and overvoltage tripping |
| Quick current limiting function | Minimize overcurrent faults to protect the normal operation of the frequency Inverter |
| Torque Limitation and Control | The "excavator" feature automatically limits the torque during operation to prevent frequent overcurrent tripping and short-circuit detection of the upper electric motor. |
| Protection function | Input and output phase deficiency protection, overcurrent protection, overvoltage protection, undervoltage protection, overload protection, and overload protection. |
| Excellent performance | Implementing asynchronous motors with high-performance current vector control technology |
| Fast current limiting | Avoid frequent overcurrent faults in the frequency Inverter |
| Timing control | Timer control function: set time range 0.0 Min ~ 6500.0 Min |
| Communication method support | RS-485, CAN communication, Profi-net communication |
| Command source | Set the operation panel, control terminal, and serial communication port. Can be switched in multiple ways |
| Frequency source | 10 frequency sources: digital input, analog voltage input, analog current input, serial port input. Can be switched in multiple ways. |
| Auxiliary frequency sources | 10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis. |
| Input terminals | 6 digital input terminals; 2 analog input terminals support 0~10V voltage input or 4~20mA current input |
| Output terminals | 2 relay output terminals; 2 analog output terminals support 0~20mA current output or 0~10V voltage output |
| Altitude | Below 1000m (above 1000m requires downgrading) |
| Ambient temperature | -10℃~+40℃ (if the ambient temperature is 40℃~50℃, please use a lower setting) |
| Humidity | Less than 95%RH, no water droplet condensation |
| Vibration | Less than 5.9m/s²(0.6g) |
| Storage temperature | -20℃~+60℃ |
| Protection level | IP66 |
Specifications
|
Inverter Model |
Input Voltage |
Rated output power (KW) |
Rated input current (A) |
Rated output current (A) |
Applicable motor (KW) |
|
T200-0R75G-4-BF |
3PH AC 380V±15% |
0.75 |
3.8 |
2.1 |
0.75 |
|
T200-1R5G-4-BF |
1.5 |
5.0 |
3.8 |
1.5 |
|
|
T200-2R2G-4-BF |
2.2 |
5.8 |
5.1 |
2.2 |
|
|
T200-3R7G-4-BF |
3.7 |
10.0 |
9.0 |
3.7 |
|
|
T200-5R5G-4-BF |
5.5 |
15.0 |
13.0 |
5.5 |
|
|
T200-7R5G-4-BF |
7.5 |
20.0 |
17.0 |
7.5 |
|
|
T200-11G-4-BF |
11 |
26.0 |
25.0 |
11 |

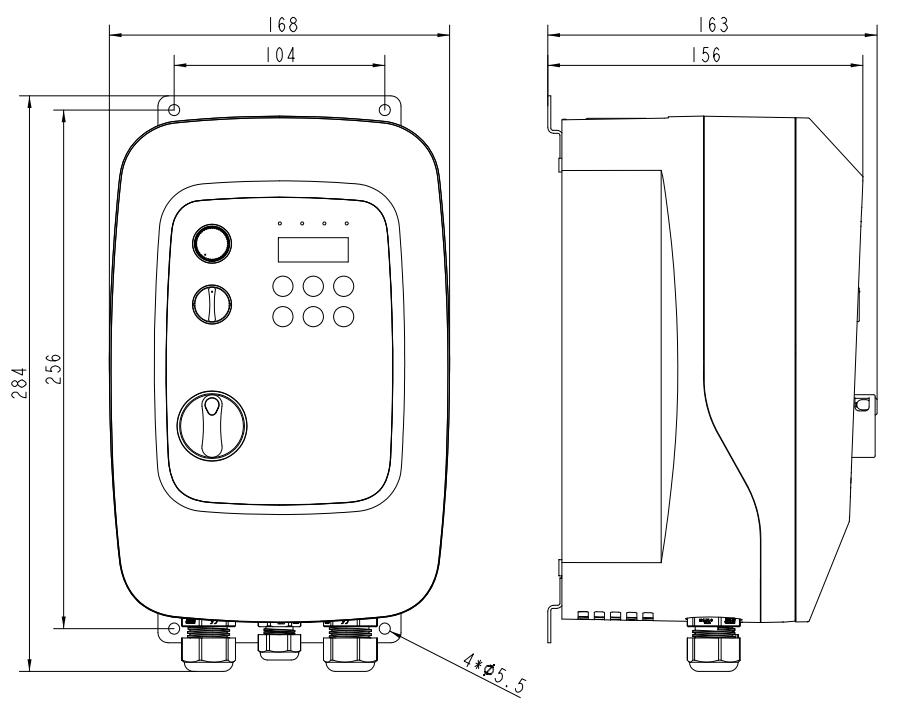

Typical Dimension
（1）AC 380V 0.75KW~3.7KW

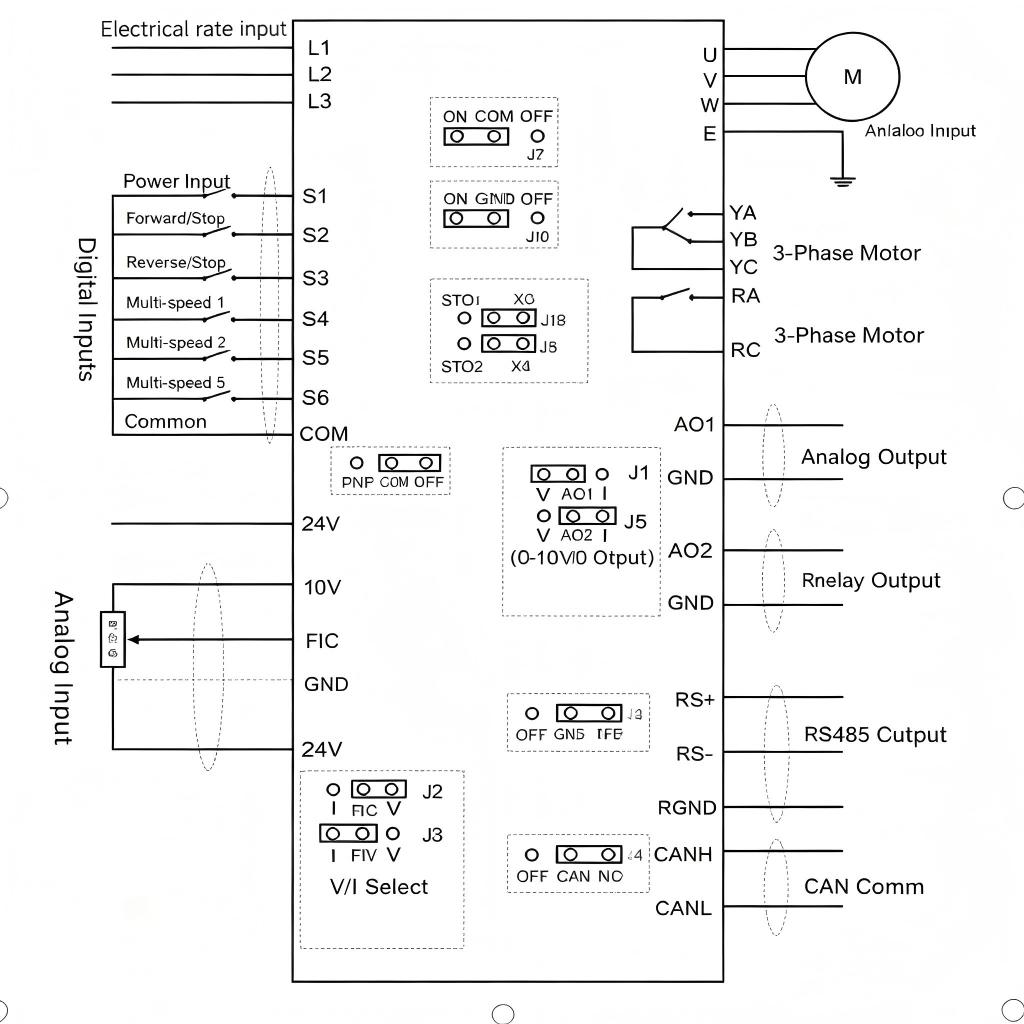

Typical wiring Diagram
