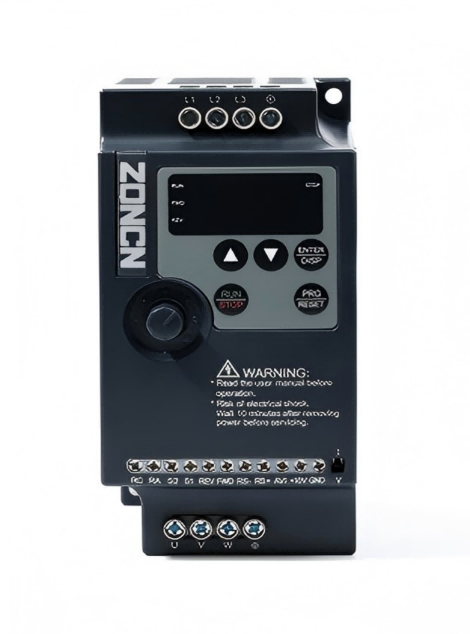

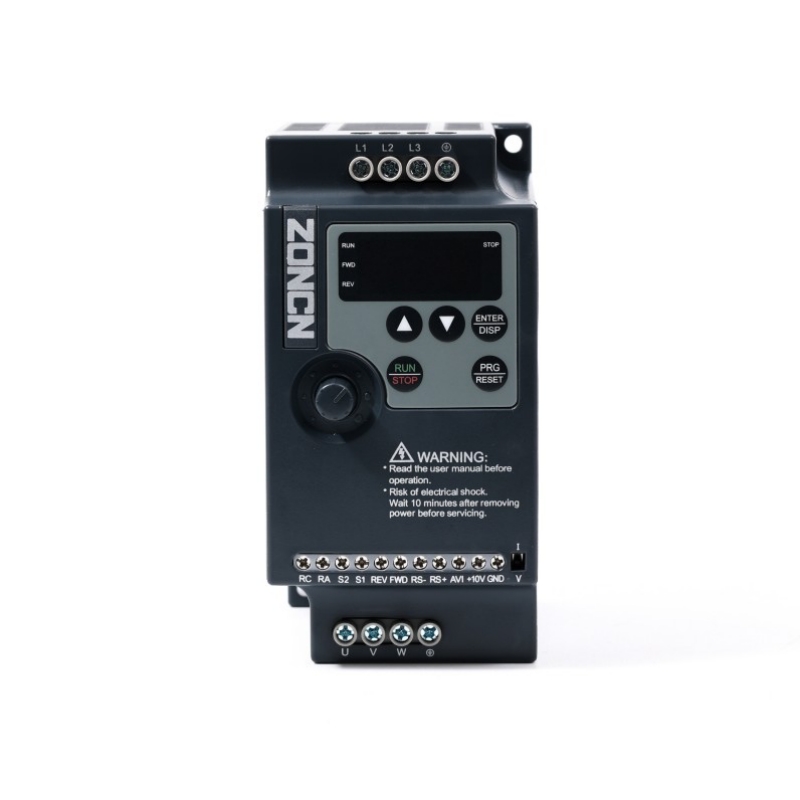

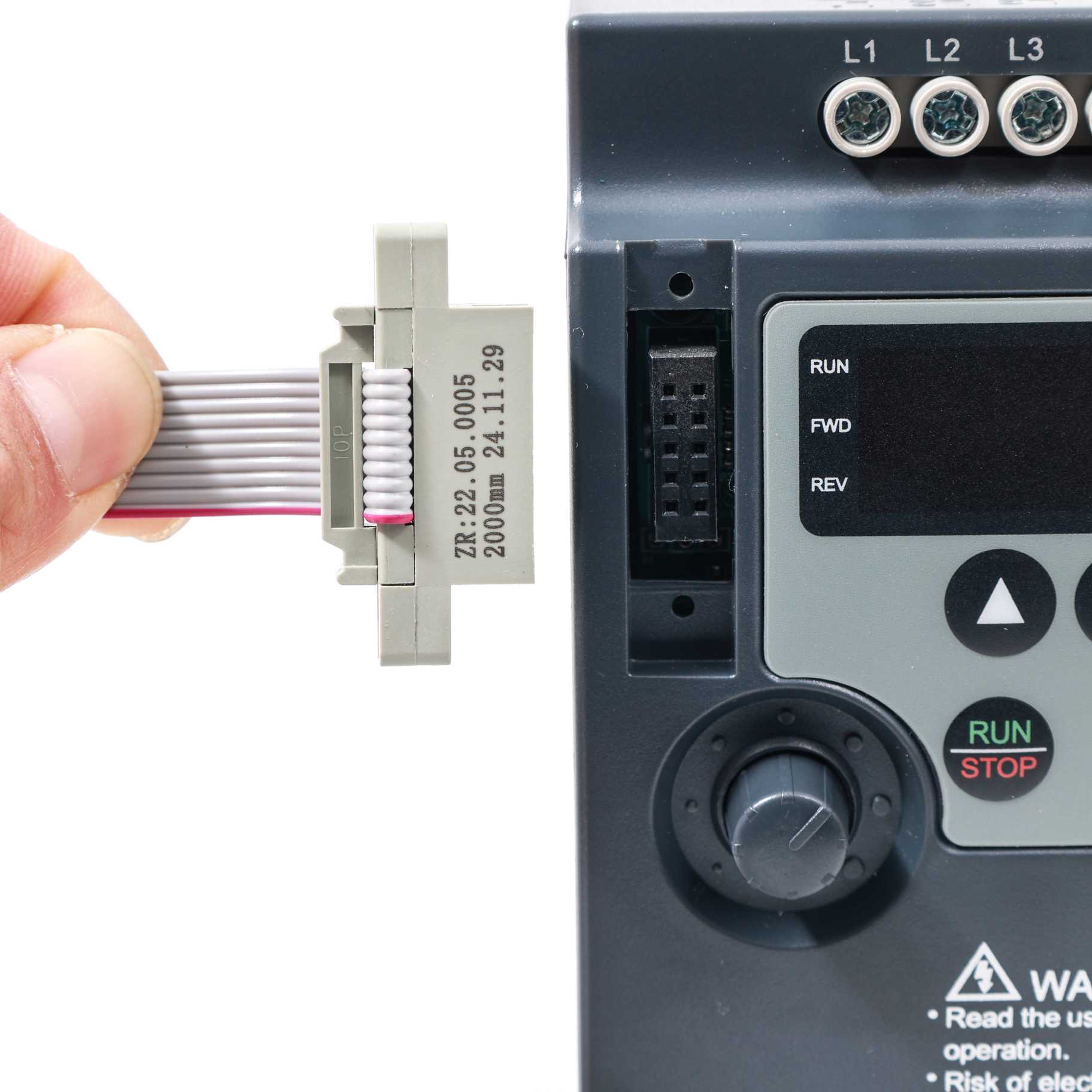

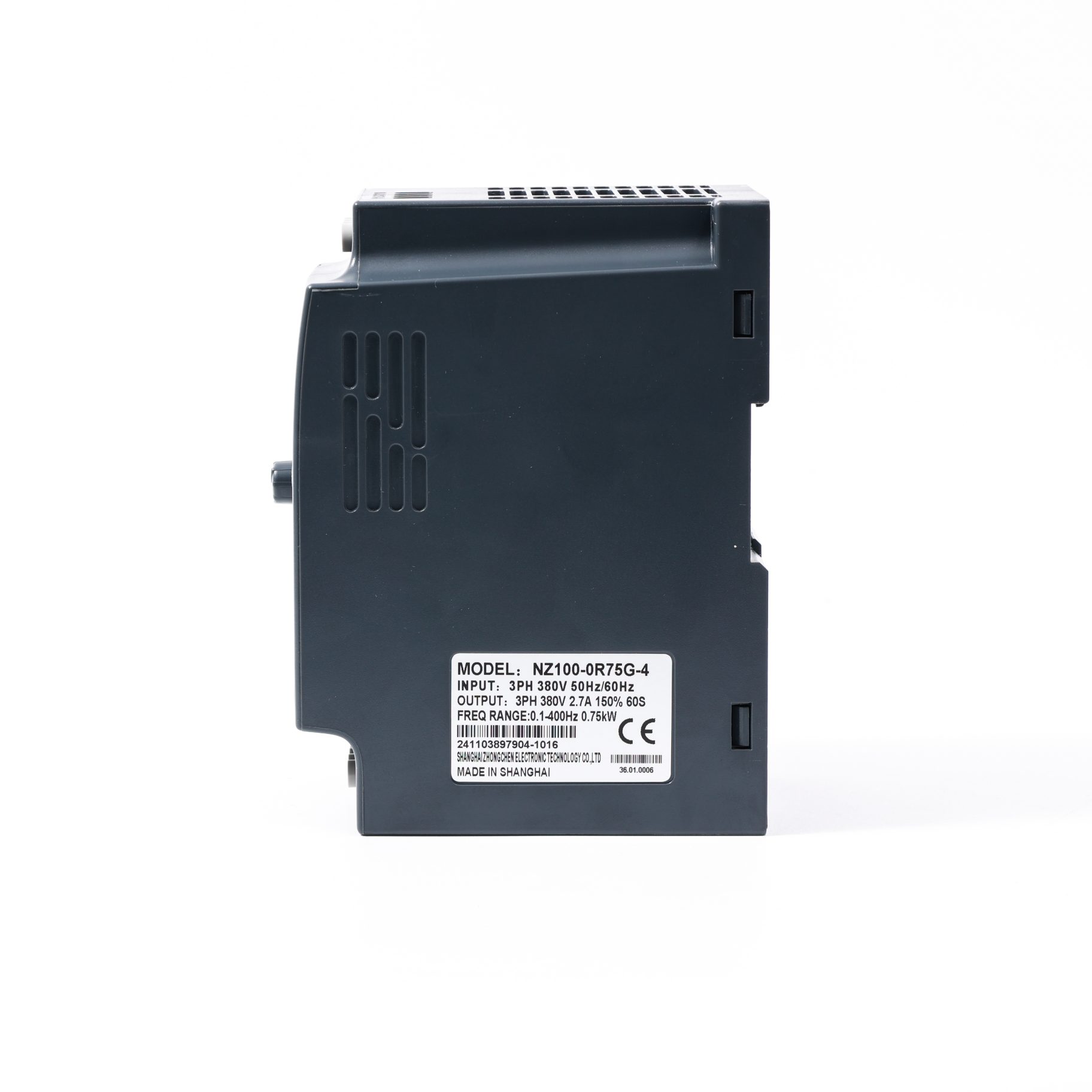

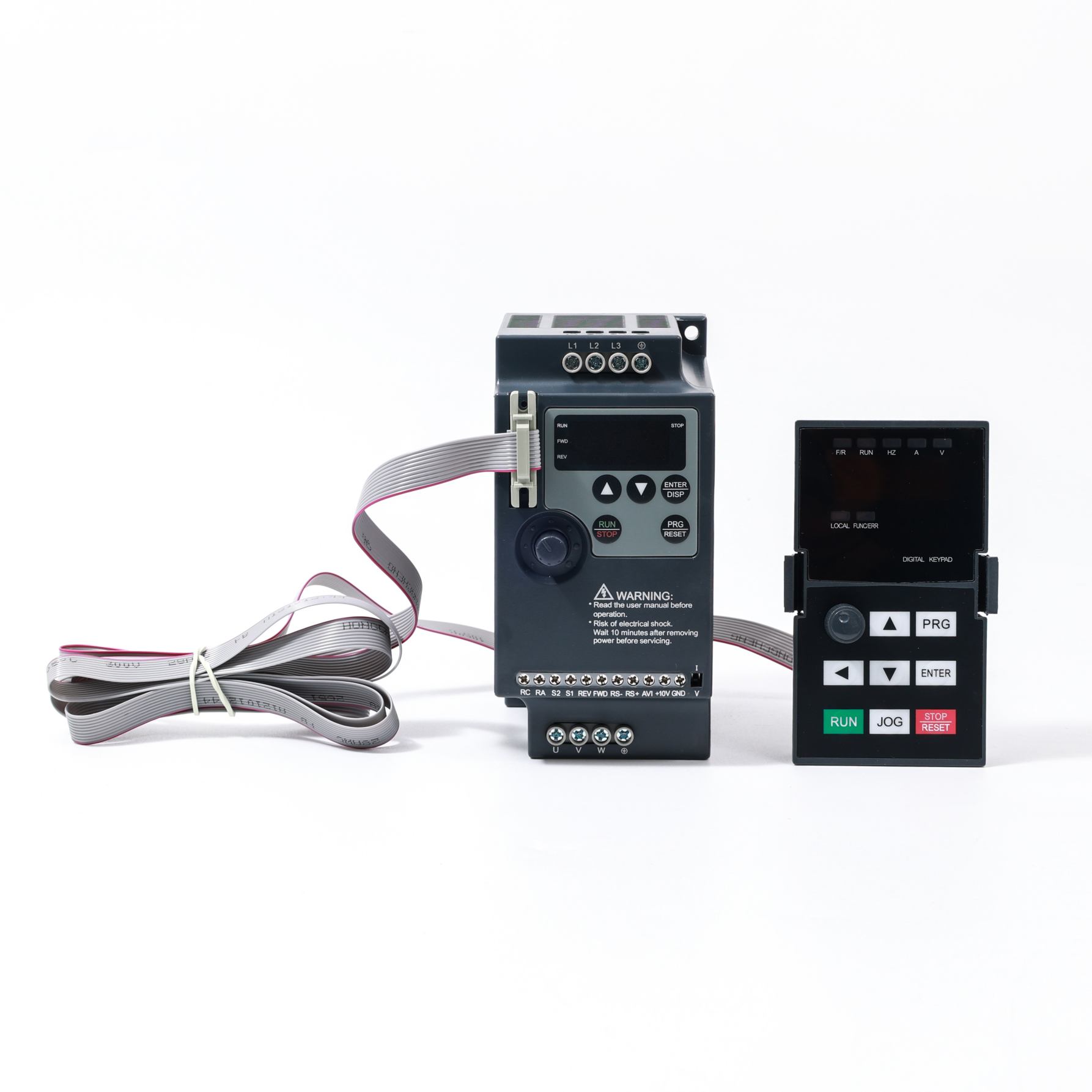

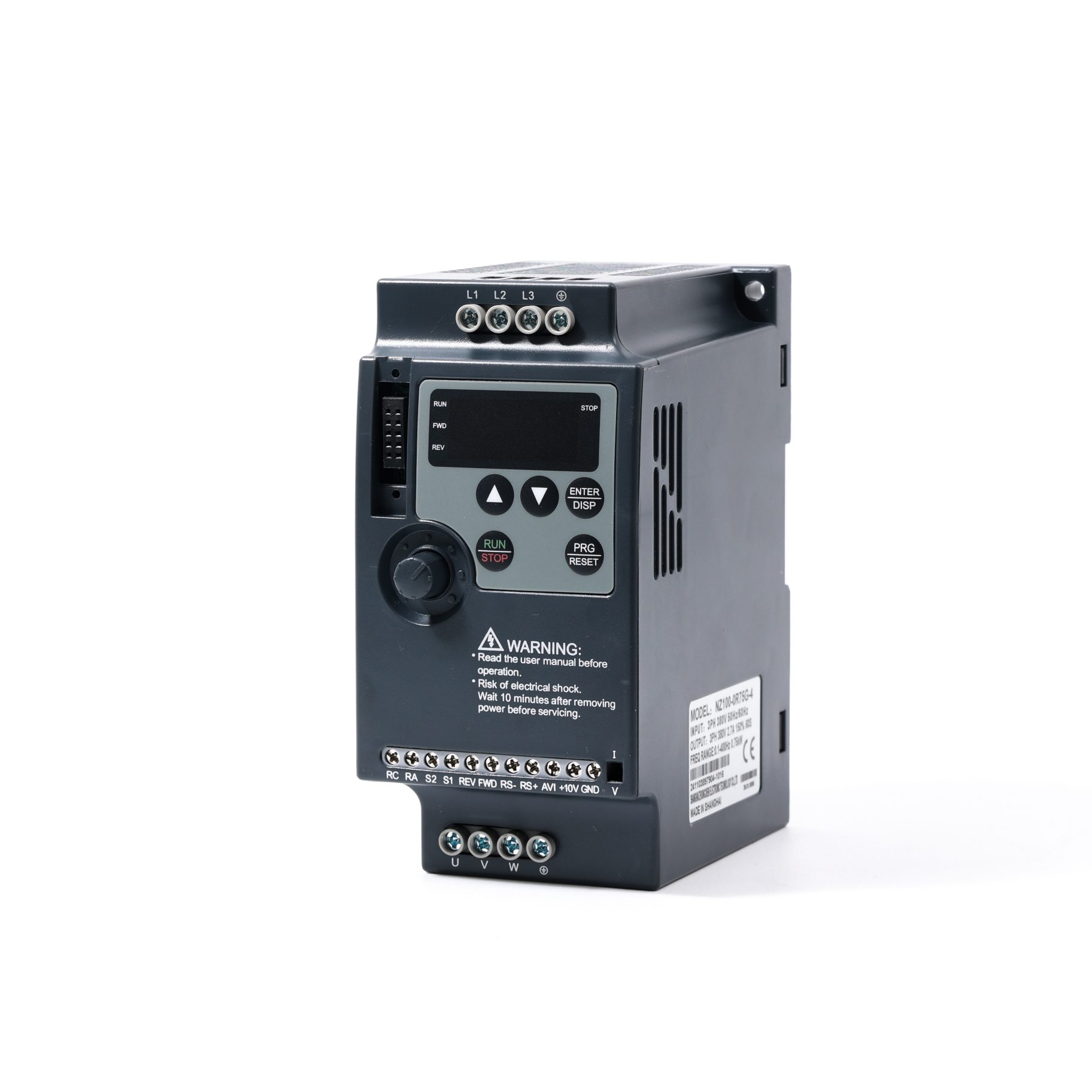

NZ100 Series is a compact and cost-effective variable frequency drive supporting MODBUS RS485, V/F control, and built-in PID. Ideal for industrial motor speed control with easy DIN-rail installation.
Item No :
NZ100Order(MOQ) :
20Payment :
Paypal/TT/Western UnionProduct Origin :
Shanghai, ChinaColor :
BlackLead Time :
18-30 daysWeight :
Maximum 1kgNZ100 series has a compact size, low cost, and external ports for easy wiring. It is easy to install and can be mounted on rails (for devices below 5.5kW), with MODBUS via RS485 provided. It also features V/F control and built-in PID control. It is specifically designed for industrial equipment, with V/f control and built-in PID control. It's a stable inverter/VFD with an IP20 rating.
Product Features
Technical Specifications
|
Item |
NZ100 Specification |
|
Rated voltage, Frequency |
One-phase/Three-phase AC 220V/380V 50/60Hz |
|
Voltage Range |
220V: 170~240V; 380V: 330V~440V |
|
Voltage Range |
220V: 0~220V; 380V: 0~380V |
|
Frequency Range |
0.10~400.00Hz |
|
Control method |
V/F control |
|
Operating status/Alarm definition/interactive guidance |
frequency setting, the output frequency/current, DC bus voltage and so on. |
|
Output Frequency Range |
0.10Hz~400.00Hz |
|
Frequency Setting Resolution |
Digital input: 0.10Hz, analog input: 0.1% of maximum output frequency |
|
Output Frequency Accuracy |
0.01Hz |
|
V/F Control |
Setting V/F curve to satisfy various load requirements. |
|
Torque Boost |
Auto increase: auto raise torque by loading Condition; Manual increase: enable to set 0.0~20.0% of raising torque. |
|
Multifunctional Input Terminal |
Four multi-function input terminals, realizing functions including eight section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
|
Multifunctional Output Terminal |
1 multi-function output terminals for displaying of run, zero speed, external abnormity, program operation and other information and warnings. |
|
Acceleration/ Deceleration Time Setting |
0~999.9s acceleration/deceleration time can be set individually. |
|
PID Control |
Built-in PID control |
|
RS485 |
Standard RS485 communication function(MODBUS) |
|
Frequency Setting |
Analog input: 0 ~ 10 V, 4~20mADigital input: Operation panel or RS485 or UP/DOWN.Note: AVI terminals can be used to select an Analog voltage input (AV) and analog current input (AI) through the switch J2. |
|
Multi-speed |
Four multifunction input terminals, 15 section speed can be set |
|
Automatic Voltage Regulation |
Automatic voltage regulation function can be selected |
|
Counter |
Built-in 2 group of counters |
|
Overload |
150%, 60 second(Constant torque) |
|
Over Voltage |
Over voltage protection can be set. |
|
Under Voltage |
Under voltage protection can be set |
|
Other Protections |
Output short circuit, over current, and parameter lock and so on. |
|
Ambient Temperature |
-10°C to 40°C(non-freezing) |
|
Ambient Humidity |
Max. 95% (non-condensing) |
|
Altitude |
Lower than 1000m |
|
Vibration |
Max.0.5G |
|
Cooling Mode |
Forced air cooling |
|
Protective Structure |
IP 20 |
|
Installation Method |
Wall-mounted or standard 35mm rail mounting (≤5.5kW) |
Specifications
|
Model |
Input Current (A) |
Output Power (kW) |
Capacity (KVA) |
Output Current (A) |
Overload capacity (60s)(A) |
Motor Equipped (kW) |
|
Input voltage：1PH AC220V±15% |
||||||
|
NZ100-0R4G-2 |
5.4 |
0.4 |
1 |
2.5 |
3.75 |
0.4 |
|
NZ100-0R75G-2 |
8.2 |
0.75 |
2 |
5 |
7.5 |
0.75 |
|
NZ100-1R5G-2 |
14 |
1.5 |
2.8 |
7 |
10.5 |
1.5 |
|
NZ100-2R2G-2 |
23 |
2.2 |
4.5 |
11 |
16.5 |
2.2 |
|
Input voltage：3PH AC380V±15% |
||||||
|
NZ100-0R75G-4 |
3.4 |
0.75 |
2.2 |
2.7 |
4.05 |
0.75 |
|
NZ100-1R5G-4 |
5 |
1.5 |
3.2 |
4 |
6 |
1.5 |
|
NZ100-2R2G-4 |
5.8 |
2.2 |
4 |
5 |
7.5 |
2.2 |
|
NZ100-3R7G/5R5P-4 |
10.7 |
3.7 |
6.8 |
8.6 |
12.9 |
3.7 |
|
NZ100-5R5G/7R5P-4 |
14.6 |
5.5 |
10 |
12.5 |
18.75 |
5.5 |
|
NZ100-7R5G/11P-4 |
20 |
7.5 |
11.2 |
17.5 |
26.25 |
7.5 |
|
NZ100-11G/15P-4 |
26 |
11 |
17 |
24 |
36 |
11 |
|
NZ100-15G/18P-4 |
35 |
15 |
26 |
33 |
49.5 |
15 |
|
NZ100-18G/22P-4 |
38 |
18.5 |
32 |
40 |
60 |
18.5 |
|
NZ100-22G/30P-4 |
46 |
22 |
37 |
47 |
70.5 |
22 |
|
NZ100-30G/37P-4 |
62 |
30 |
52 |
65 |
97.5 |
30 |
|
NZ100-37G/45P-4 |
76 |
37 |
64 |
80 |
120 |
37 |

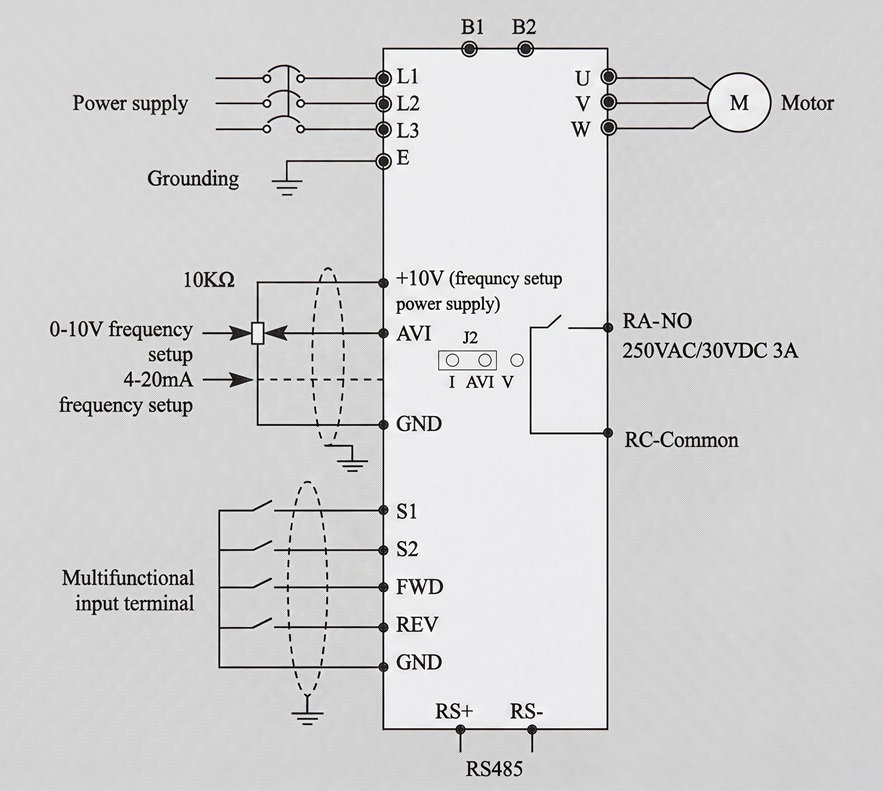

Typical Wiring Diagram
When using a single-phase power supply, please access from terminals L1 and L2
Note: AVI terminals can be used to select an analog voltage input (0-10V) and analog cuxent input (4-20mA) through the switch J2.

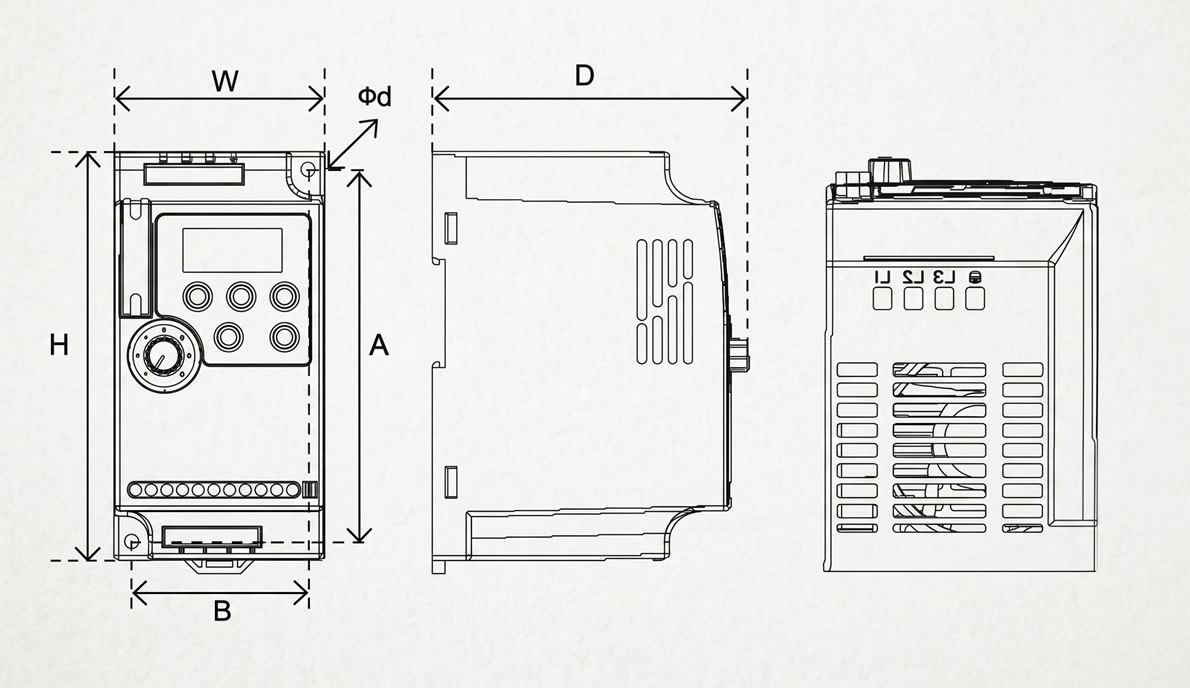

Dimension
|
Model |
W (mm) |
H (mm) |
D (mm) |
A (mm) |
B (mm) |
Φd (mm) |
|
NZ100-0R4G-2 |
68 |
132 |
102 |
120 |
57 |
4.5 |
|
NZ100-1R5G-2 |
68 |
132 |
102 |
120 |
57 |
4.5 |
|
NZ100-2R2G-2 |
72 |
142 |
112.2 |
130 |
61 |
4.5 |
|
NZ100-0R75G-4 |
72 |
142 |
112.2 |
130 |
61 |
4.5 |
|
NZ100-2R2G-4 |
72 |
142 |
112.2 |
130 |
61 |
4.5 |
|
NZ100-3R7G/5R5P-4 |
85 |
180 |
116 |
167 |
72 |
5.5 |
|
NZ100-5R5G/7R5P-4 |
85 |
180 |
116 |
167 |
72 |
5.5 |
|
NZ100-7R5G/11P-4 |
106 |
240 |
153 |
230 |
96 |
4.5 |
|
NZ100-11G/15P-4 |
106 |
240 |
153 |
230 |
96 |
4.5 |
|
NZ100-15G/18P-4 |
151 |
332 |
165.5 |
318 |
137 |
7 |
|
NZ100-22G/30P-4 |
151 |
332 |
165.5 |
318 |
137 |
7 |
|
NZ100-30G/37P-4 |
217 |
400 |
201 |
385 |
202 |
7 |
|
NZ100-37G/45P-4 |
217 |
400 |
201 |
385 |
202 |
7 |
|
NZ100-45G/55P-4 |
300 |
455 |
240 |
440 |
200 |
4.5 |
|
NZ100-55G/75P-4 |
300 |
455 |
240 |
440 |
200 |
4.5 |
|
NZ100-75G/90P-4 |
275 |
630 |
310 |
612 |
200 |
4.5 |
|
NZ100-110G/132P-4 |
275 |
630 |
310 |
612 |
200 |
4.5 |
|
NZ100-132G/160P-4 |
400 |
715 |
310 |
695 |
320 |
11 |
|
NZ100-160G/185P-4 |
400 |
715 |
310 |
695 |
320 |
11 |
