Z2000-FBS Series Distributed Dedicated Vector-Type Variable Frequency Drive

Designed for harsh industrial environments, this IP65-rated distributed drive unit enables flexible motor-side installation, eliminating traditional cabinet constraints. It combines plug-and-play hot-swap technology with a service switch for rapid, uninterrupted maintenance and power cycling. A key-operated local/remote selector switch accommodates diverse operational needs, while the integrated STO function delivers hardware-level safety shutdown compliant with safety machinery standards, ensuring reliable protection for personnel and equipment.

Item No :
Z2000-FBS
Order(MOQ) :
20
Payment :
Paypal/TT/Western Union
Product Origin :
Shanghai, China
Lead Time :
18-30 days
Weight :
Maximum 73kg

Inquiry Now

This IP65-rated distributed drive unit is designed for harsh industrial environments, enabling flexible motor-side installation and eliminating traditional cabinet constraints. It features plug-and-play hot-swap technology with a service switch for rapid, uninterrupted maintenance and power cycling, reducing downtime. A key-operated local/remote selector switch accommodates diverse operational needs, integrating with fieldbuses for centralized control while providing physical access security. The integrated STO function delivers hardware-level safety shutdown compliant with IEC 61508 SIL 2 and ISO 13849-1 PL d standards, ensuring reliable personnel and equipment protection. The distributed architecture and IP65 enclosure allow direct mounting near loads, shortening cable runs, reducing interference, and supporting modular, flexible production layouts in humid or dusty scenarios.

Product Features

Featuring a distributed structure and IP65 high protection class, this design enables flexible selection of installation locations.
Service switch configuration for easy power cycling.
Plug-and-play-enabled hot-swap technology design.
Local/Remote Mode Key-Operated Selector Switch for Diverse Operational Requirements.
Safe Torque Off (STO) function implementing direct hardware-driven shutdown, adhering to the requirements for safety-oriented machinery design.

Technical Specifications

Item	Z2000-FBS Specification
Control Method	V/F Control / Open-loop Vector Control (without PG)
Max Frequency	0~599Hz
Input Voltage	AC380V~500V, Allowable range: ±10%
Carrier Frequency	0.5kHz~16kHz; Can automatically adjust carrier frequency according to load characteristics
Input Frequency Resolution	0.01Hz
Starting Torque	0.5Hz/150% (without PG)
Speed Range	0.111111111
Speed Regulation Accuracy	±0.5%
Overload Capacity	150% rated current 60s; 200% rated current 3.5s
Torque Boost	Self torque boost; Manual torque boost 0.1%~30.0%
V/F Curve	Three types: Linear; Multi-point; N-th power V/F curve (1.2, 1.4, 1.6, 1.8, 2 times)
V/F Separation	Two types: Full separation, Half separation
Acceleration/Deceleration Curve	Linear or S-curve acceleration/deceleration. Four acceleration/deceleration times, range 0.0~6500.0s
DC Braking	DC braking frequency: 0.00Hz~max frequency; Braking time: 0.0s~36.0s; Braking action current value: 0.0%~100.0%
Jog Control	Jog frequency range: 0.00Hz~50.00Hz. Jog acceleration/deceleration time 0.0s~6500.0s
Simple PLC / Multi-speed Operation	Up to 4-speed operation via built-in PLC or control terminals
Built-in PID	Can easily implement closed-loop process control
Automatic Voltage Regulation (AVR)	Automatically maintains constant output voltage when grid voltage changes
Overvoltage/Overcurrent Slip Control	Automatically limits current/voltage during operation to prevent frequent overcurrent/overvoltage tripping
Fast Current Limiting	Minimizes overcurrent faults to protect VFD operation
Torque Limitation and Control	Automatically limits torque during operation to prevent frequent overcurrent tripping; Closed-loop vector mode can achieve torque control
Outstanding Performance	Asynchronous motor control with high-performance current vector control technology
Run Through Instantaneous Power Failure	Maintains VFD operation during short power outages by compensating voltage drop through load regenerative energy
Fast Current Limiting	Prevents frequent VFD overcurrent faults
Timer Control	Timer control function, time range 0.0min~6500.0min
Communication Support	RS-485, ASI
Command Source	Operation panel, Control terminal, ASI communication
Frequency Source	Digital setting, ASI setting. Switchable
Auxiliary Frequency Source	Flexible auxiliary frequency fine-tuning and frequency synthesis
Input Terminals	3 digital input terminals; 2 STO terminals; 1 motor temperature input terminal (TF/FT100/PT1000 optional)
LED Display	Display parameters
Protection Functions	Power-on motor short circuit detection, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, overload protection, etc.
EMC Filter	Built-in, C3 level
Braking Resistor	Built-in, 250W 200Ω
Installation Location	Indoor, no direct sunlight, no dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt content
Altitude	Below 1000m
Ambient Temperature	−25°C~+40°C (derating required at 40°C~50°C)
Humidity	Less than 95%RH, no water condensation
Vibration	Less than 5.9m/s² (0.6g)
Storage Temperature	−20°C~+60°C
Protection Class	IP65

Specifications

Inverter Model	Input voltage	Output rating （kW）	Nominal input current（A）	Rated output current（A）	Compatible motor (kW)	Main circuit conductor diameter（mm²）
Z2400-0R75G-FBS-ASI	3PH AC380V～500V， ±10%	0.75	5.0	3.8	0.75	0.75
Z2400-1R5G-FBS-ASI		1.5	5.8	5.1	1.5	0.75
Z2400-3R0G-FBS-ASI		3.0	10.0	9.0	2.2	1.5

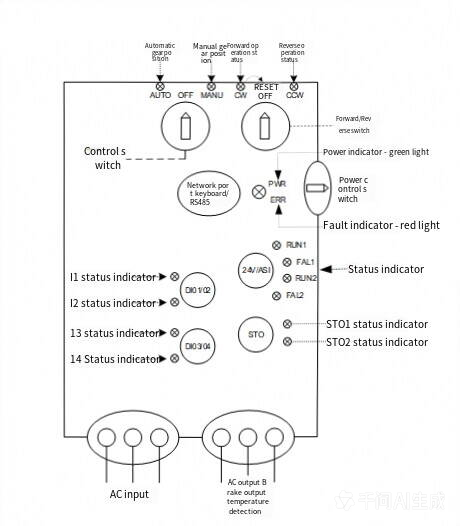

Typical Wiring Diagram

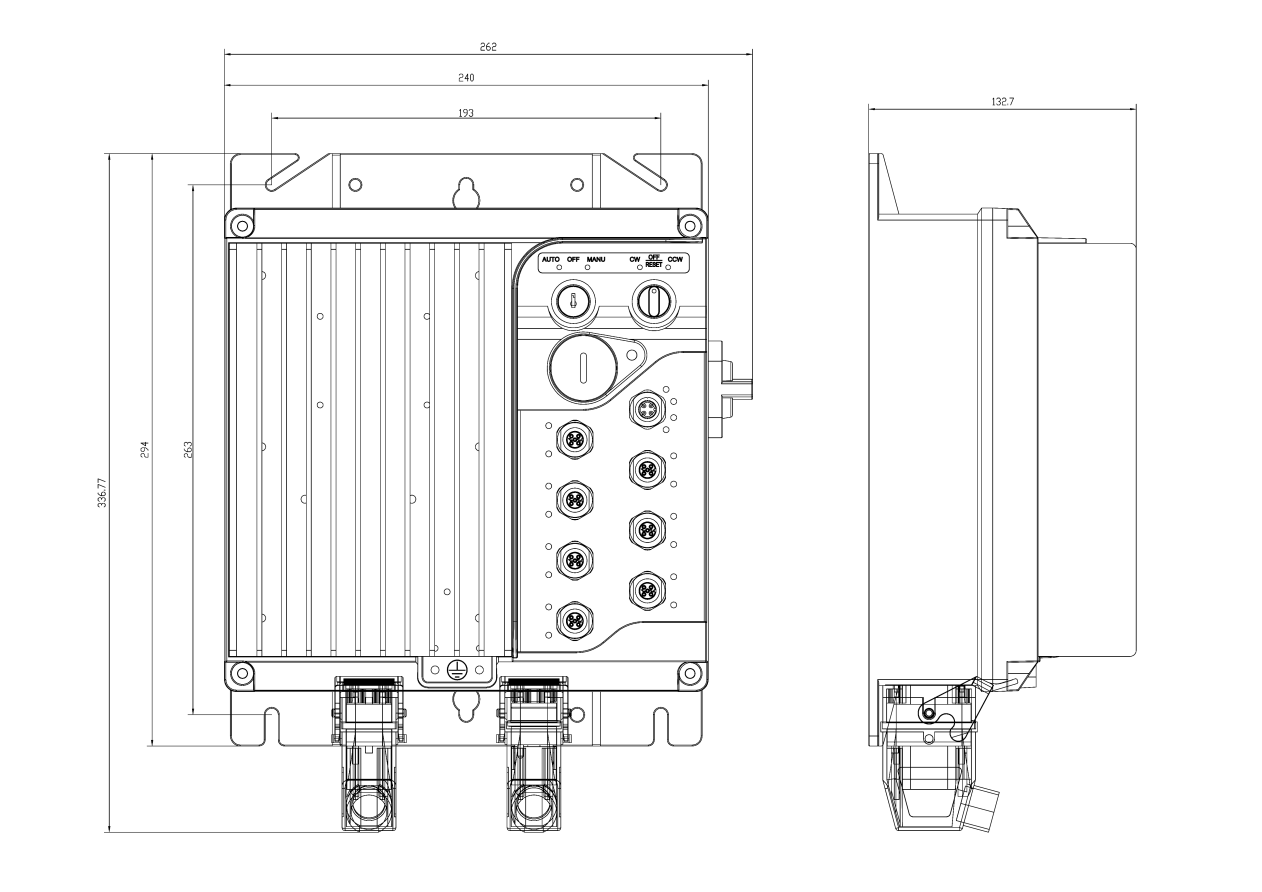

Dimension
