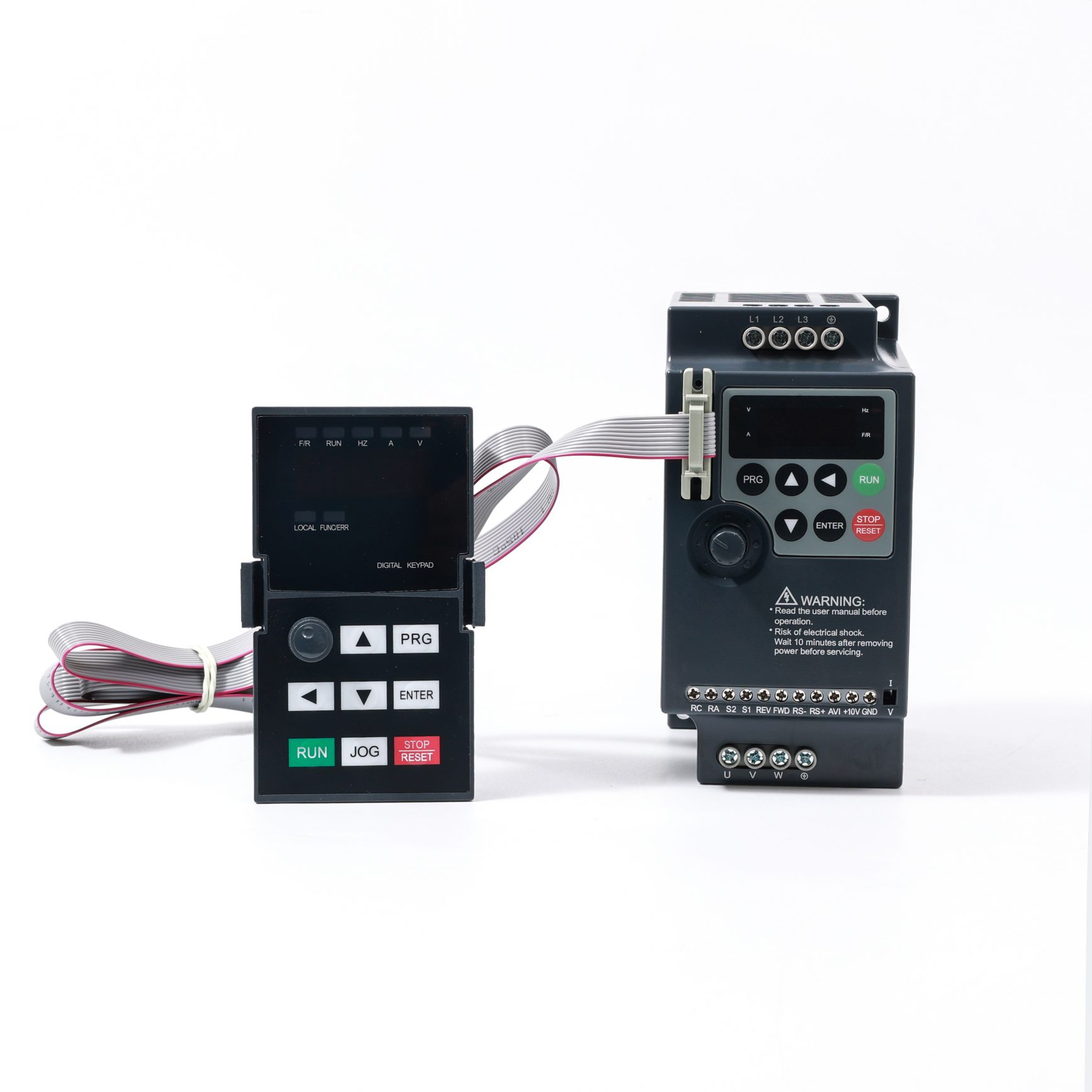

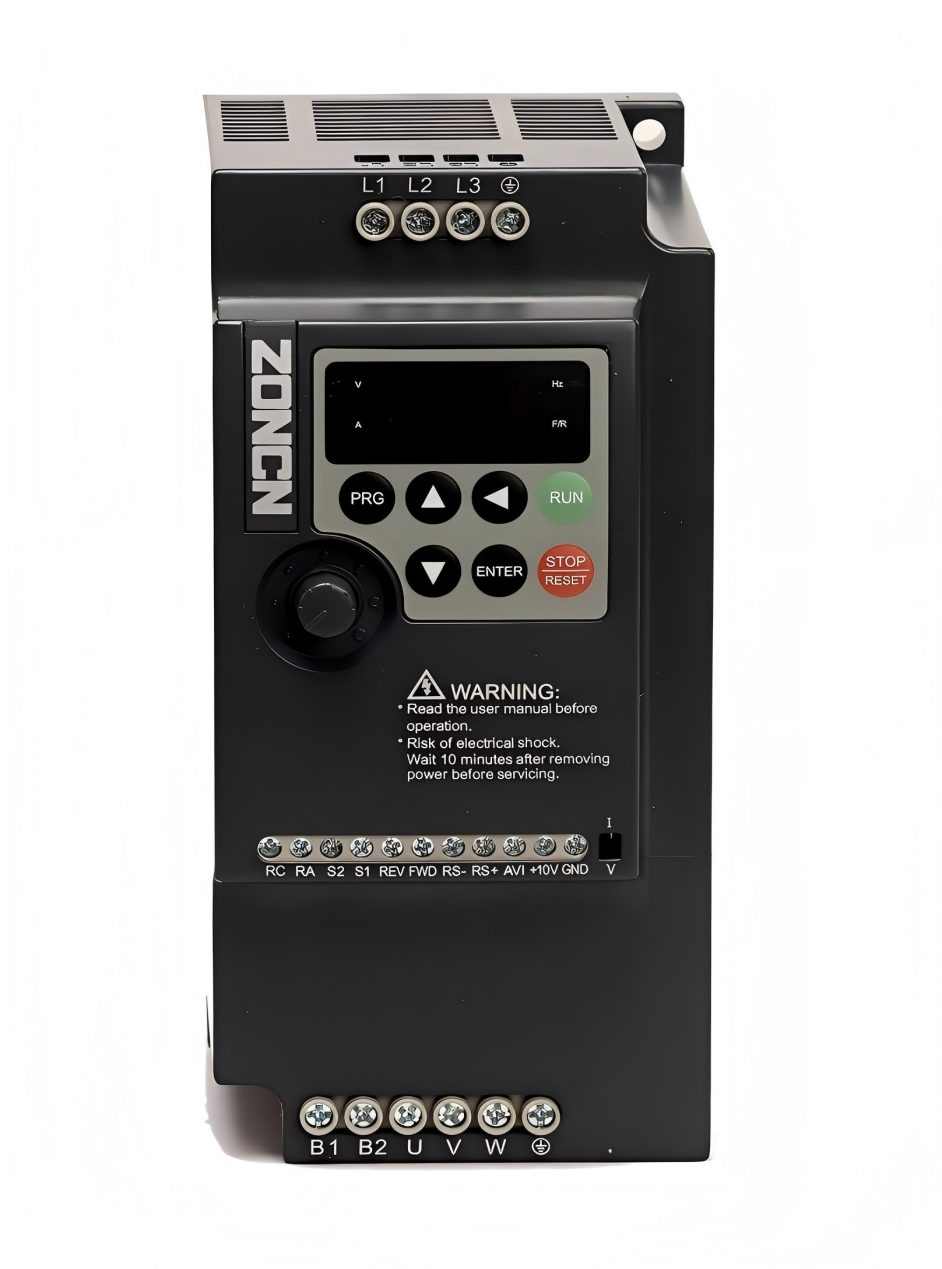

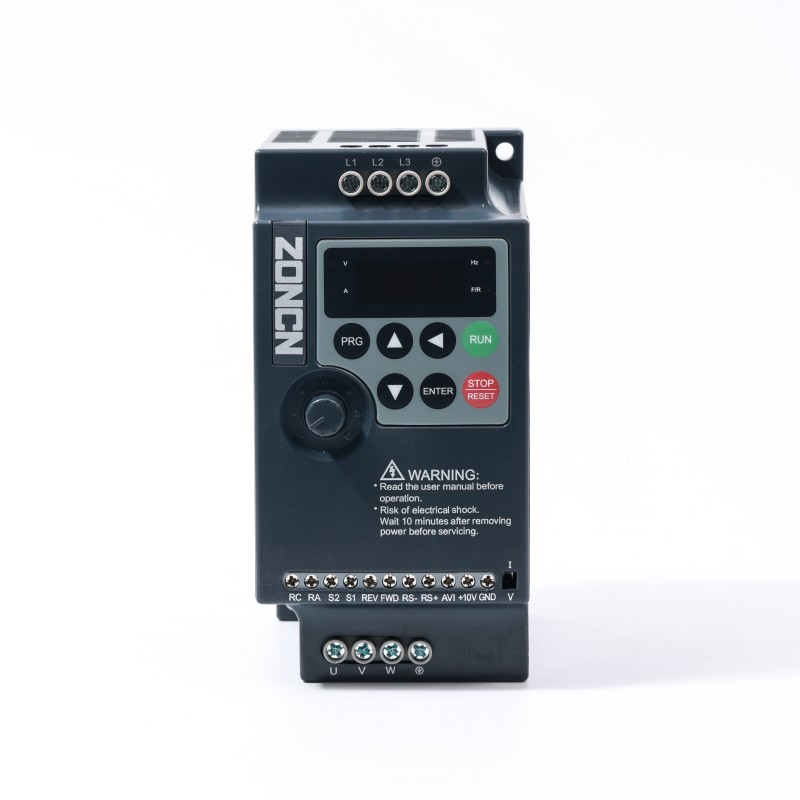

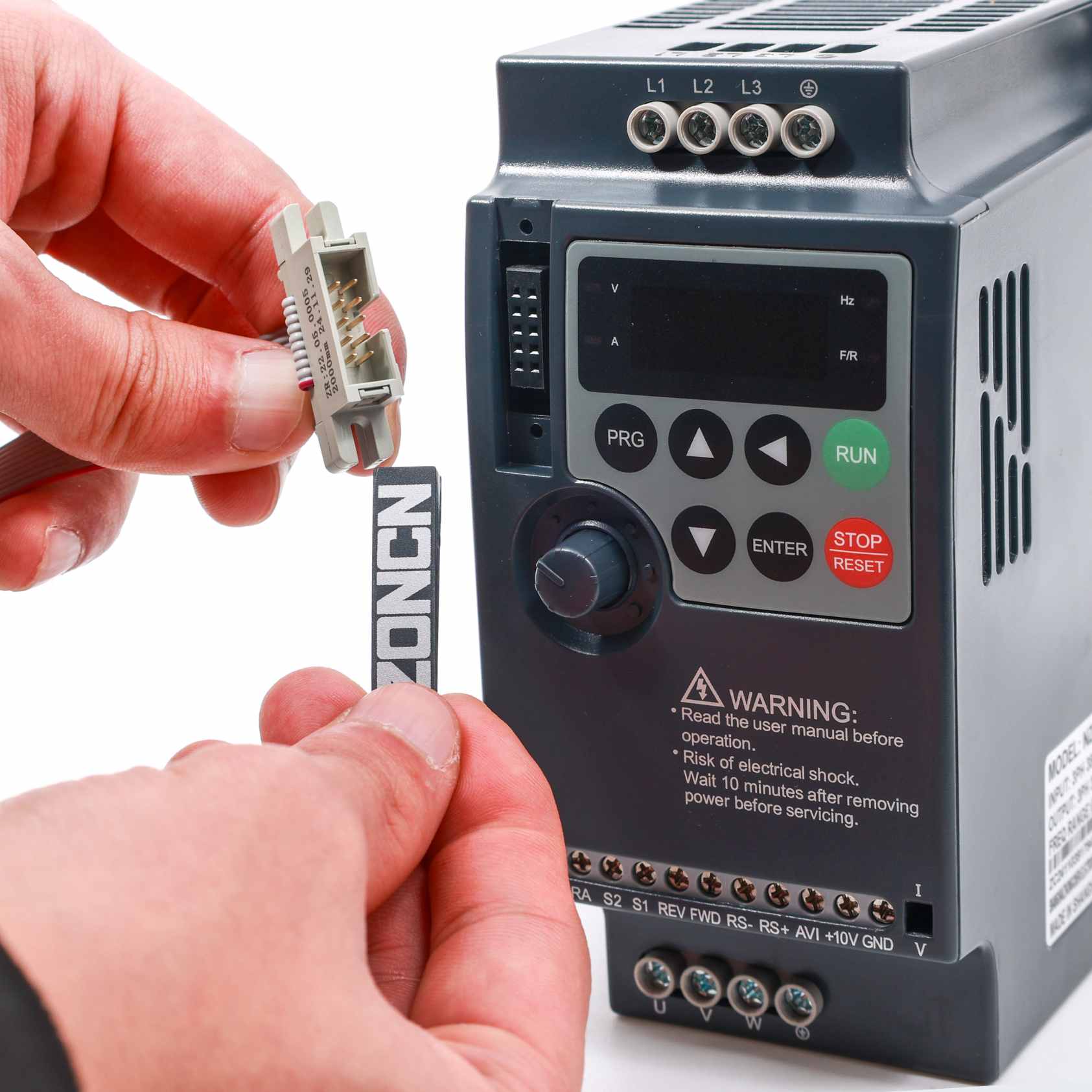

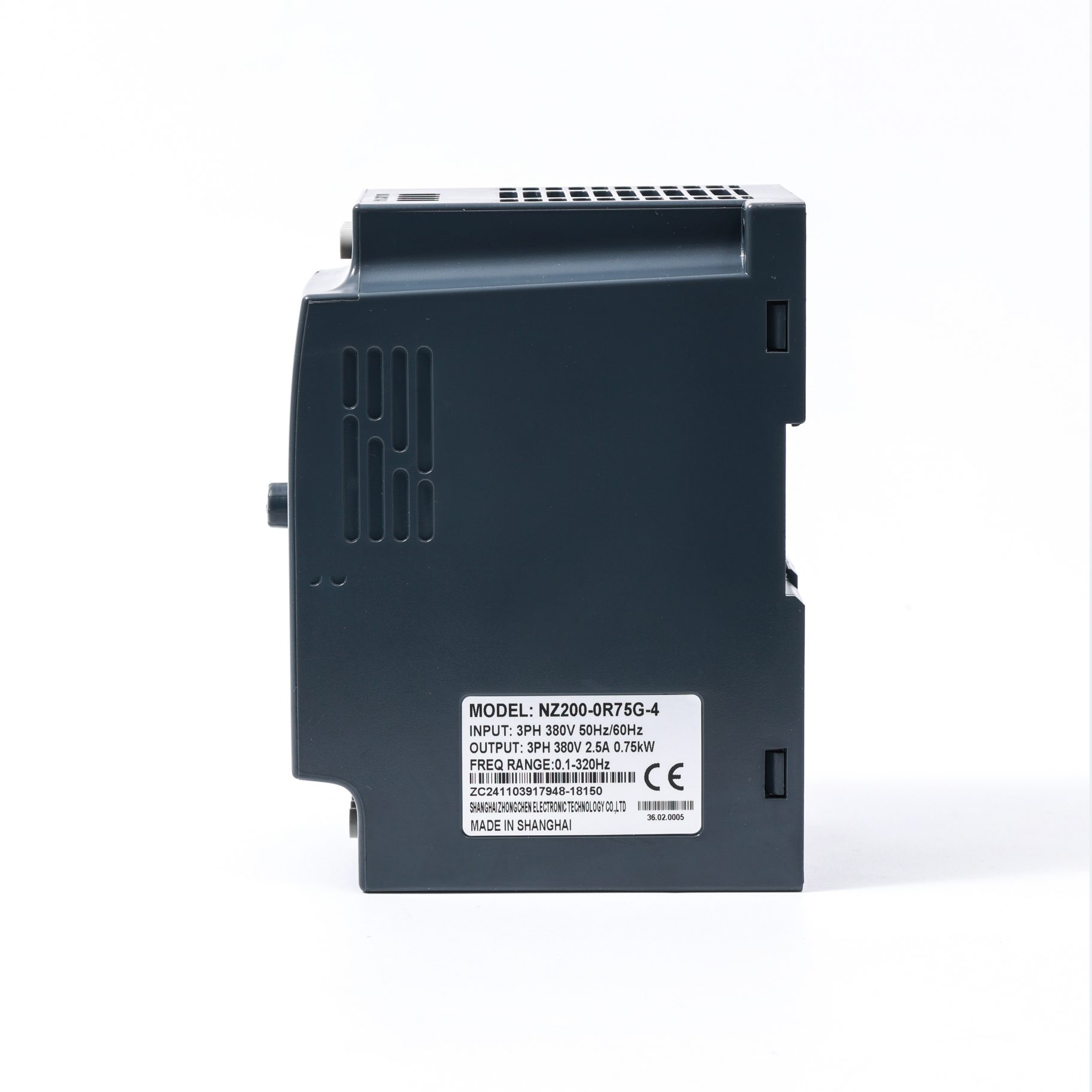

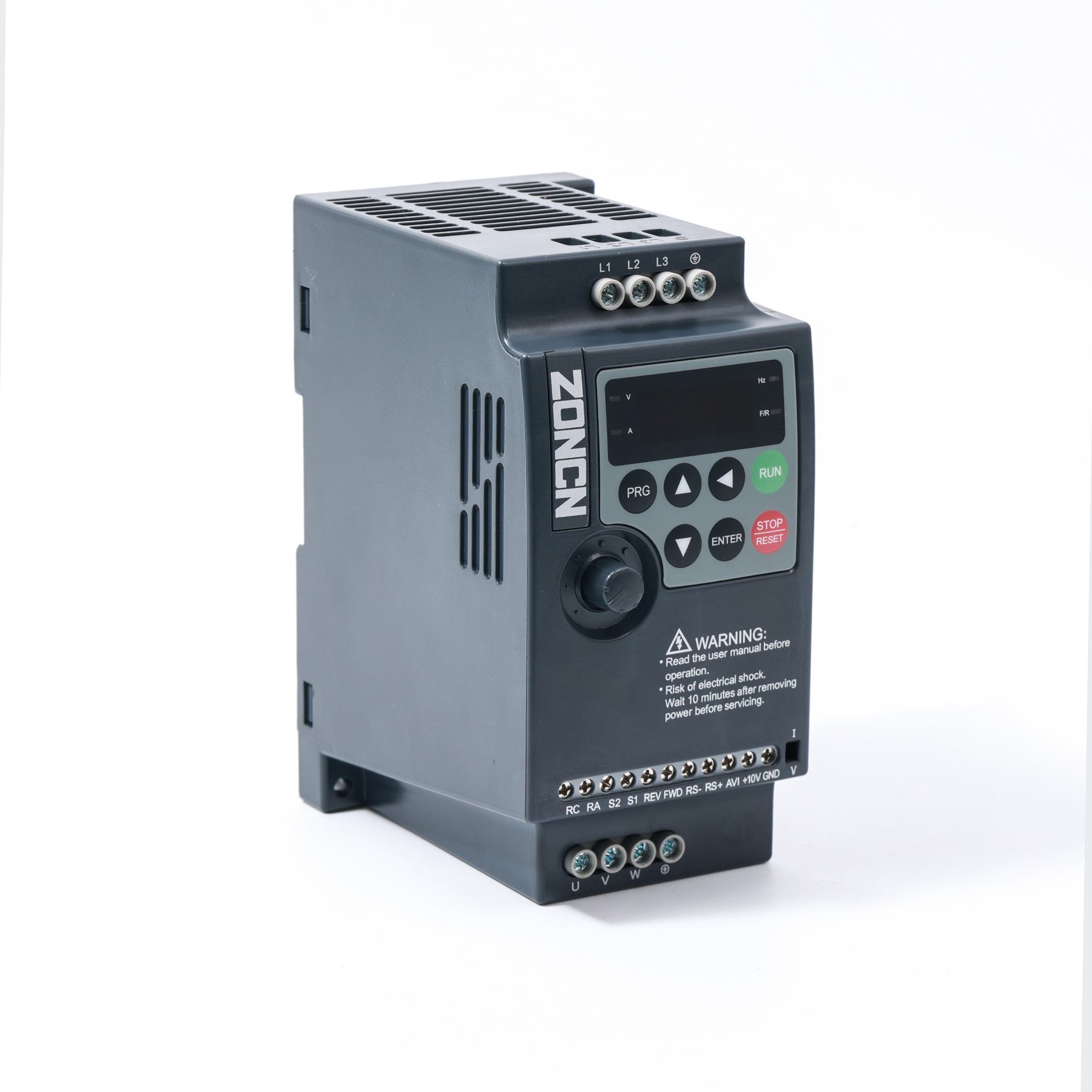

NZ200 Series Mini Simple Vector Control Inverter

NZ200 Series Mini Simple Vector Control Inverter

NZ200 series is a economical vector variable frequency drive supporting high torque output, V/F and open loop vector control. It also supports PM motor (NZ200T series). Rapid flow limiting can reduce the rate of frequent fault alarm.

Item No :
NZ200
Order(MOQ) :
20
Payment :
Paypal/TT/Western Union
Product Origin :
Shanghai, China
Color :
Black
Lead Time :
18-30 days
Weight :
Maximum 73kg

Inquiry Now

The NZ200 Series of general-purpose vector inverters is specifically designed for efficient motor control in a wide range of industrial applications. Built on a core design philosophy of simplicity and reliability, this product offers superior performance, high overload capacity, and easy installation. High torque output ensures smooth motor startup under heavy loads.

Product Features

·Open loop vector control, V/F control

·Overload capacity is 60s for 150% of rate current, 3s for 180% of rate current.

·High performance; environmental adaptation

·Simple structure; Compact size; Easy install

·Economic vector control inverter, high torque output, motor runs smoothly when heavy loading.

·Instantaneous stop doesn’t stop.

·Protection function: Output phase loss protection, Over-current protection, Over-voltage protection, Overload protection, Over-heat protection etc.

·Support PM motor (NZ200T series)

·Power range：380V 3.7~55Kw

Technical Specifications

Item	NZ200 Specification
Control Mode	Sensorless flux vector control（ SFVC） Voltage/Frequency (V/F) Control
Maximum frequency	Vector control：0-320Hz V/F control：0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0. 1%~30.0%
VF curve	Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power, 1.4-power, 1.6-power, 1.8-power, 2-power)
VF separation	2 types: complete separation； half separation
Ramp Mode	Straight-line ramp ； S-curve ramp ； Four groups of acceleration/deceleration time:0~6500.0s
Simple PLC, Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation （AVR）	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Onboard PID	It realizes process-controlled closed loop control system easily
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency ： 0.00Hz to maximum frequency Braking time ： 0.0-100.0s Braking action current value：0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run instruction channel	Keyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
Frequency source	10 kinds: digital given, analog voltage given, analog current given, pulse given,

Specifications

Model	Rated Output Power （KW）	Rated Input Current （A）	Rated Output Current （A）	Motor Power （KW）
Input voltage （v）： 1PH AC 220V±15%
NZ200-0R4G-2	0.4	5.4	2.5	0.4
NZ200-0R75G-2	0.75	7.2	5	0.75
NZ200-1R5G-2	15	10	7	15
NZ200-2R2G-2	2.2	16	11	2.2
NZ200-3R7G-2	3.7	17	16.5	3.7
Input voltage (v): 3PH AC 380V ±15%
NZ200-0R4G-4NZ	0.4	3.4	12	0.4
NZ200-0R75G-4	0.75	3.8	2.5	0.75
NZ200-1R5G-4	15	5	3.7	15
NZ200-2R2G-4	2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4	3.7	10.7	9	3.7
NZ200-5R5G/7R5P-4	5.5	14.6	13	5.5
NZ200-7R5G/11P-4	7.5	20	17	7.5
NZ200-11G/15P-4	11	26	25	11
NZ200-15G/18.5P-4	15	35	32	15
NZ200-18.5G/22P-4	18.5	38	37	185
NZ200-22G/30P-4	22	46	45	22
NZ200-30G/37P-4	30	62	60	30
NZ200-37G/45P-4	37	76	75	37
NZ200-45G/55P-4	45	92	90	45
NZ200-55G/75P-4	55	113	110	55
NZ200-75G/90P-4	75	157	150	75
NZ200-90G/110P-4	90	180	176	90
NZ200-110G/132P-4	110	214	210	110
NZ200-132G/160P-4	132	256	253	132
NZ200-160G/185P-4	160	307	300	160

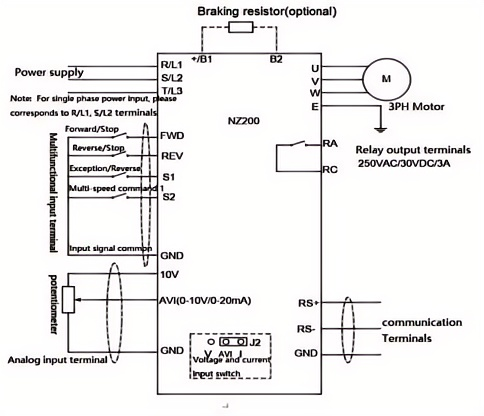

Typical Wiring Diagram

0.75~37kw

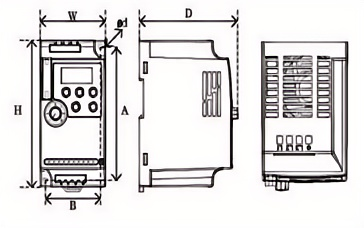

Dimension

Note：Support for standard 35mm Din-rail mounting. (Below 5.5kw)

Model	W	H	D	A	B	Φd
Input voltage： 1PH AC 220V±15%
NZ200-0R4G-2	72	142	112.2	130	61	4.5
NZ200-0R75G-2	72	142	112.2	130	61	4.5
NZ200-1R5G-2	72	142	112.2	130	61	4.5
NZ200-2R2G-2	85	180	116	167	72	5.5
NZ200-3R7G-2	85	180	116	167	72	5.5
Input voltage：3PH AC 380V±15%
NZ200-0R4G-4	72	142	112.2	130	61	4.5
NZ200-0R75G-4	72	142	112.2	130	61	4.5
NZ200-1R5G-4	72	142	112.2	130	61	4.5
NZ200-2R2G-4	72	142	112.2	130	61	4.5
NZ200-3R7G/5R5P-4	85	180	116	167	72	5.5
NZ200-5R5G/7R5P-4	85	180	116	167	72	5.5
NZ200-7R5G/11P-4	106	240	153	230	96	4.5
NZ200-11G/15P-4	106	240	153	230	96	4.5
NZ200-15G/18.5P-4	151	332	165.5	318	137	7
NZ200-18.5G/22P-4	151	332	165.5	318	137	7
NZ200-22G/30P-4	151	332	165.5	318	137	7
NZ200-30G/37P-4	217	400	201	385	202	7
NZ200-37G/45P-4	217	400	201	385	202	7
NZ200-45G/55P-4	300	470	240	455	200	4.5
NZ200-55G/75P-4	300	470	240	455	200	4.5
NZ200-75G/90P-4	275	630	310	612	200	4.5
NZ200-90G/110P-4	275	630	310	612	200	4.5
NZ200-110G/132P-4	275	630	310	612	200	4.5
NZ200-132G/160P-4	400	715	310	695	320	11
NZ200-160G/185P-4	400	715	310	695	320	11
